MX-M264U ELECTRICAL SECTION 13 – 1
MX-M264U
Service Manual
[13] ELECTRICAL SECTION
1. Block diagram

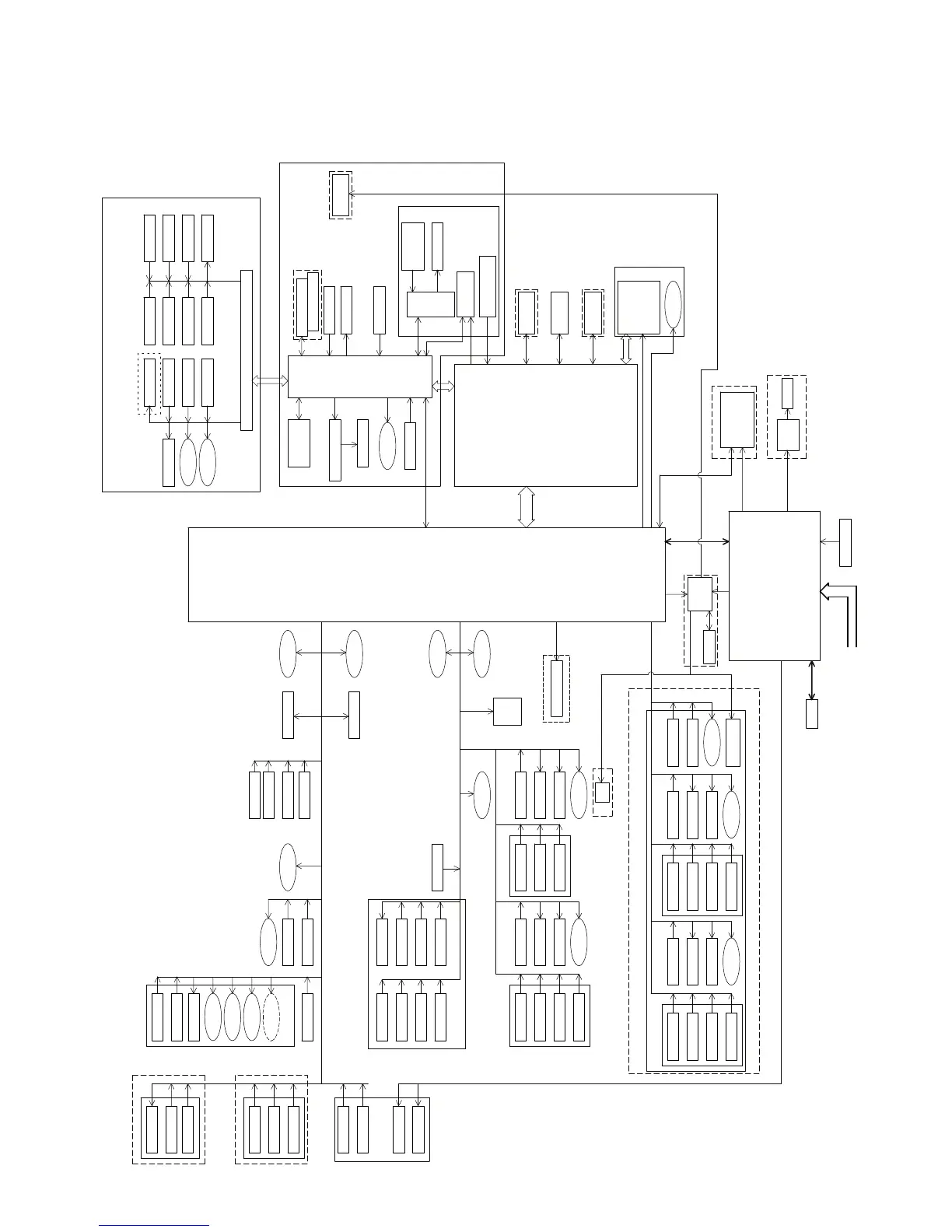

A. System block diagram
LCD
TOUCH
PA NEL
LVDS
PWB
PWB
CCD
PNC
AUDITOR
ORS-PD
ORS_LED
OCSW
SCANNER UNIT
OPTION
OPERATION UNIT
USB CN PWB
LED DRIVER PWB
PWB
SCN
LED PWB
RSPF PWB
SPPD3 SPPD1 SPPD2 SPPD4
SOCD
SCOV
SPED
SRRC
SPUM
SPRS
SPWS
SPLS2 SPLS1
STMPS
SPFM
RSPF UNIT
PWB
MFPC
OPTION
HDD
WH_SCN
OPE PWB
OPTION
PWB
PCU
PSFM1 PSFM2
FUFM2 FUFM1
OPTION
FAX2
C1LUM C1PUC
C1PUS
DSW_C2
C2PED
C2LUD C2PFD
PAPERFEED 2 UNIT
RRC
PSPS
C1PED
C1LUD C1PFD
PAPERFEED 1 UNIT
C2LUM C2PUC
C2PUS
C1SS
C2SS
MANUAL PAPER UNIT
MTOP1 MTOP2
MPFS
PPD1
MPLD1
MPWD
MPED
MPLD2
TFD1
TH_RA
TCS
ADUM
POSD
APPD1
DSW_R
MM
PWB
HV
COINVENDER
OPTION
MHPS
MIM
LSU UNIT
PWB
LSU
PM
C4LUM
C4PUS
C4PUC
C4SS
PAPER FEED 3 UNIT
C3PFD C3LUD
C3PED
DSW_C3
C3SS
C3PUC
C3PUS
WH_DESK
PAPER FEED 4 UNIT
C4PFD C4LUD
C4PED
DSW_C4
CPFM
PTRC1 PTRC2
WH
OPTION
DESK UNIT
OPTION
FUSER UNIT
TH_UM
TH_US
HL_UM
HL_US
TFD3
POD3
POGS2
OPTION
RIGHT DERIVERY UNIT
WH
AC IN
200V only
REACTOR
PWB
PCI
PCI
OPTION
DCPS
WH SW
FINISHER
INNER
FINSHER
OPTION
(Standard equipment for Japan model)
OPTION
Power Supply UN
OPTION
MSW
(Standard equipment for Japan model)
OPTION
TFD2
POD2
DSW_POC
DERIVERY 2 UNIT
(Standard equipment for Japan model)
(Standard equipment for Japan model)
FAX1
(Japan model only)
POD1
SHPOS
POGS1
OSM POM
31cpm/35cpm machine only
C3LUM
CRUM
HUD_RA
TNM
DERIVERY 1 UNIT
POFM2 POFM1
