Sharp MX-M264N Service Manual

MX-M264U EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 3

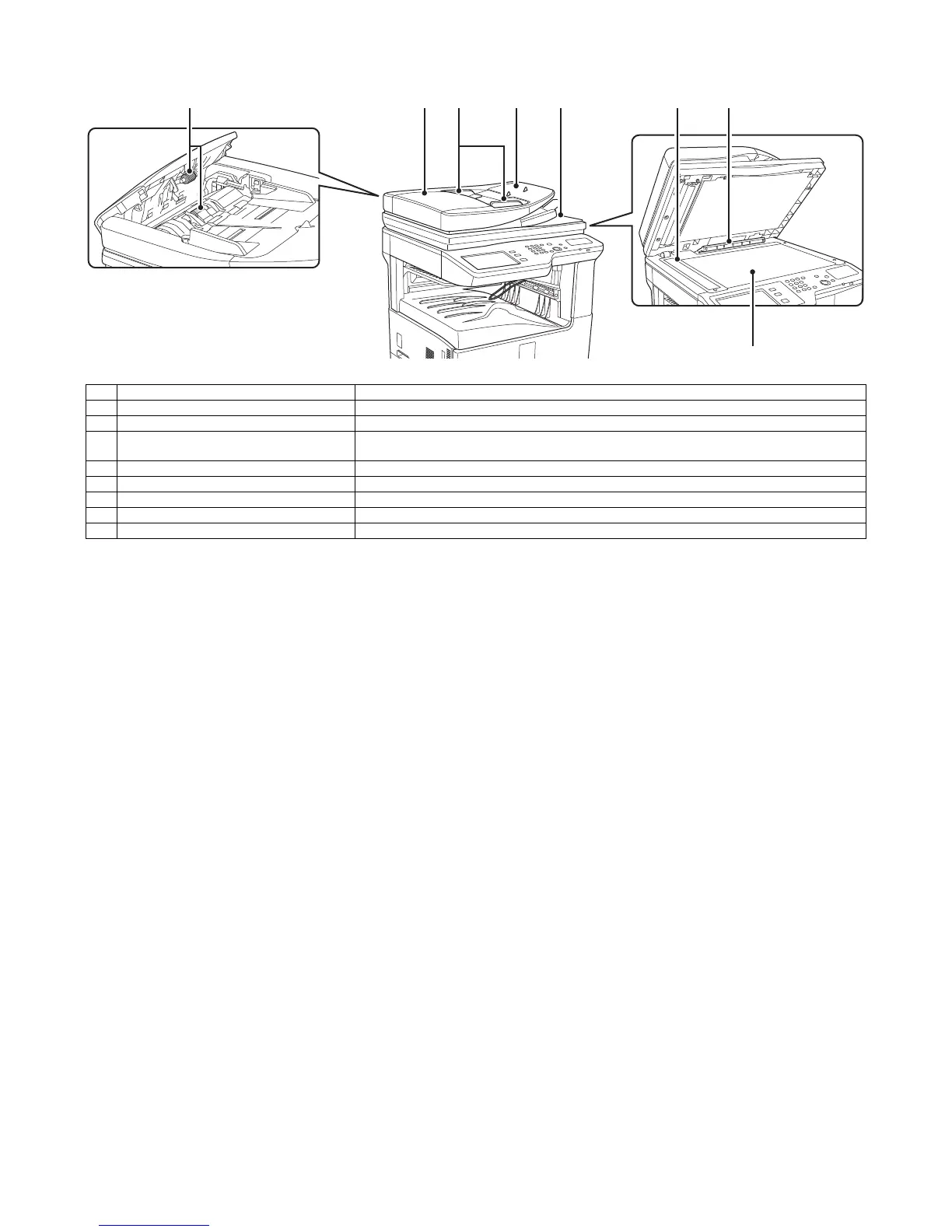

3. Automatic document feeder and document glass
No. Name Function/Operation
1 Paper feed roller This roller rotates to automatically feed the original.
2 Document feeding area cover Open this cover to remove an original misfeed or clean the paper feed roller.
3 Original guides These help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.
4 Document feeder tray Place originals in this tray. 1-sided originals must be placed face up.
5 Original exit tray Originals are delivered to this tray after scanning.
6 Scanning area Originals placed in the document feeder tray are scanned here.
7 Original size detector This detects the size of an original placed on the document glass.
8 Document glass Use this to scan a book or other thick original that cannot be fed through the automatic document feeder.
2
8
3 4 5 6 71

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
