Sharp MX-M264N Service Manual

MX-M264U EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 8

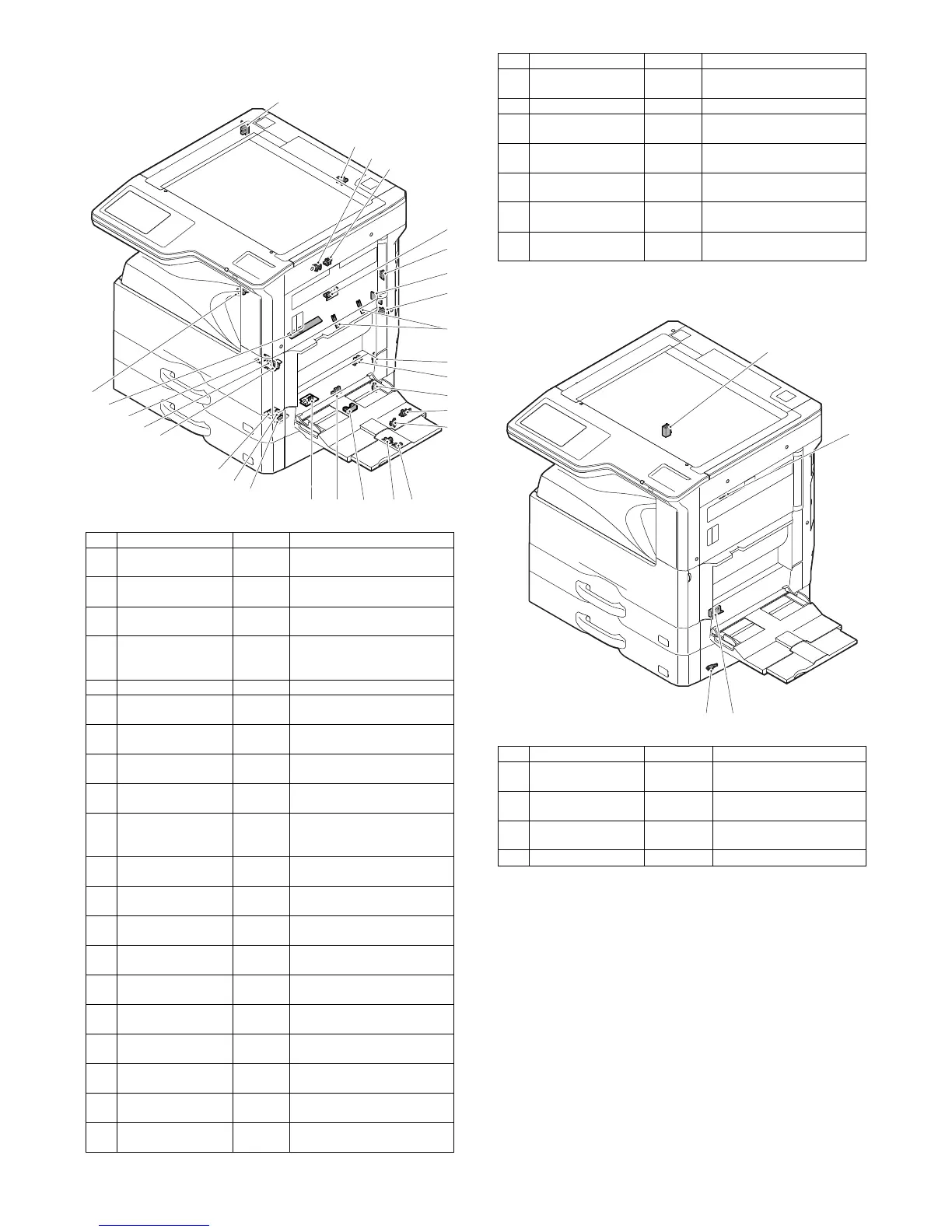

7. Sensor
8. Switch
No. Name Code Function and operation
1 Scanner home
position sensor
MHPS Detects the scanner home
position.
2 Paper size detection
trigger sensor
OCSW Detects generation of the paper
size detection trigger signal.
3 2nd paper exit
sensor (Option)
POD2 2nd paper exit detection
4 2nd paper exit full
detection sensor
(Option)
TFD2 2nd paper exit section full
detection
5 1st paper exit sensor POD1 1st paper exit detection
6 Shifter home position
sensor
SHPOS Shifter home position sensor
detection
7 Paper exit sensor
(DUP side)
POSD Paper exit detection
8 Thermistor TH_UM/
TH_US
Fusing temperature detection
9 1st tray (paper tray)
detection
C1SS 1st tray (paper tray) empty
detection
10 Manual feed paper
entry sensor
PPD1 Sensor of paper entry from the
manual paper feed tray, the
2nd/multi-tray desk, or the DUP
11 Manual paper feed
tray empty sensor 2
MTOP2 Manual feed tray position
detection
12 Manual paper feed
tray empty sensor 1
MTOP1 Manual feed tray position
detection
13 Manual feed length
detection sensor 1
MPLD1 Manual feed paper length
detection
14 Manual feed length
detection sensor 2
MPLD2 Manual feed paper length
detection
15 Manual feed paper
empty sensor
MPED Manual feed paper empty
detection
16 2nd tray paper pass
sensor
C2PFD 2nd tray paper pass
17 2nd tray paper upper
limit detection sensor
C2LUD 2nd tray paper upper limit
detection
18 2nd tray paper empty
sensor
C2PED 2nd tray paper empty detection
19 1st tray paper pass
sensor
C1PFD 1st tray paper pass
20 1st tray paper upper
limit detection sensor
C1LUD 1st tray paper upper limit
detection
5
6
7
9
11
12
13141524 26
16
17
18
19
20
21
22
23
10
8
27
25
1
2
3
4
21 1st tray paper empty
sensor
C1PED 1st tray paper empty detection
22 Toner sensor TCS Toner density detection
23 Center tray paper
YES/NO sensor
TFD1 Center tray paper YES/NO
detection
24 Reverse pass paper
detection sensor
APPD1 Reverse pass detection
25 2nd tray (paper tray)
detection
C2SS 2nd tray (paper tray) empty
detection
26 Manual feed width
detection sensor
MPWD Manual feed paper width
detection
27 Temperature sensor/
Humidity sensor
TH_RA/
HUD_RA
Machine temperature/humidity
detection
No. Name Code Function and operation
1 Right cabinet door
switch (Option)
DSW_POC Right cabinet door open/
close detection
2 Door switch DSW_R Front door and side door
open/close detection
3 2nd right door switch DSW_C2 Side door open/close
detection
4 Main switch MSW Main power switch
No. Name Code Function and operation
23
1
4
