MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 22
3) Remove the holder, and remove the LCD.
CAUTION: Use enough care not to put finger prints on the LCD sur-
face.
4) Remove the touch panel.
CAUTION: Use enough care not to put finger prints on the touch
panel surface.

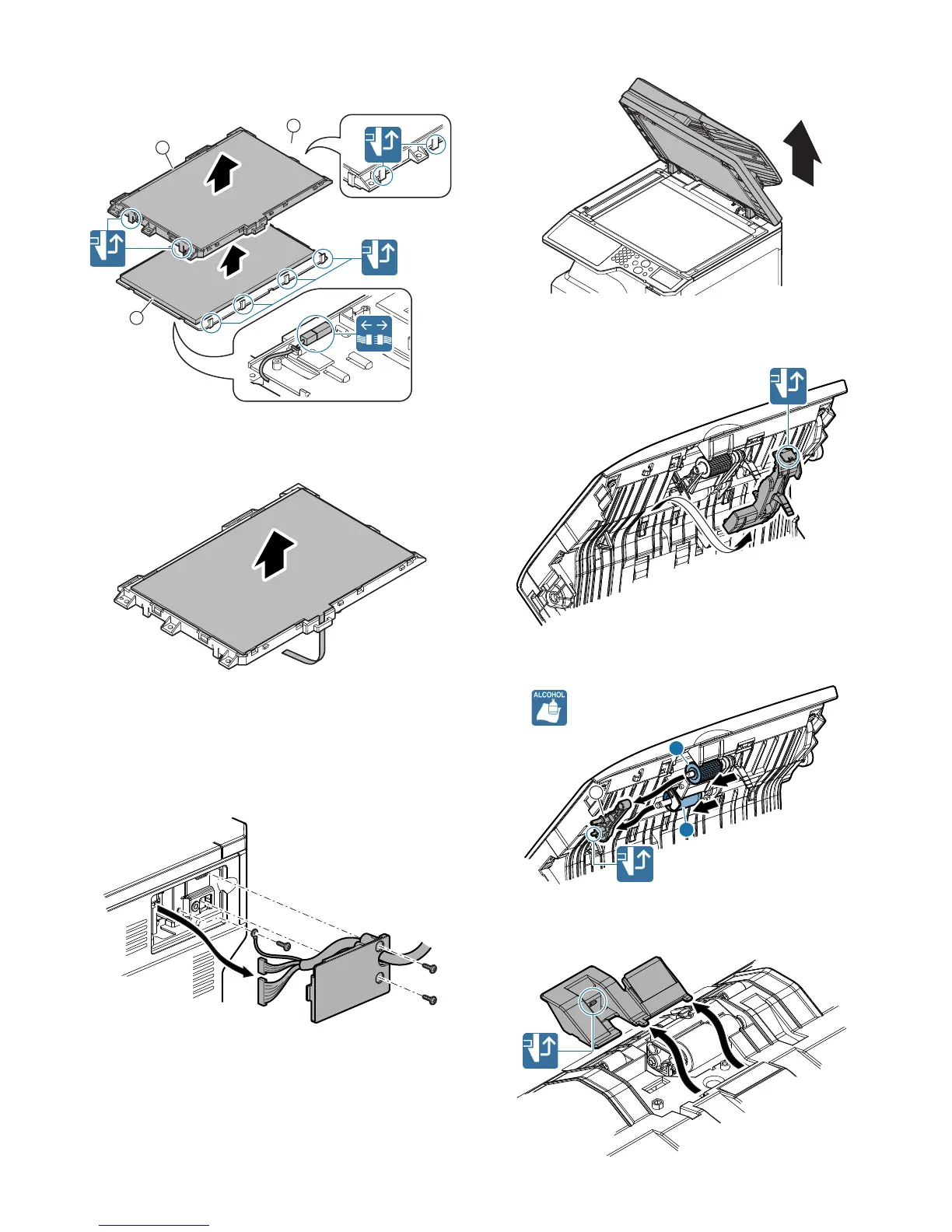

14. RSPF
A. RSPF unit
1) Remove the rear upper cabinet.
2) Disconnect the connector. Remove the harness guide.
3) Remove the RSPF unit from the machine.
(1) Document pickup roller, Paper feed roller
1) Open the paper feed unit, and remove the cover.
2) Remove the holder, and remove the document pickup roller,
and the paper feed roller.
(2) Separation roller, Torque limiter SPF
1) Open the paper feed unit, and remove the cover.
1
2
2
2
2
1
