Sharp MX-M264N Service Manual

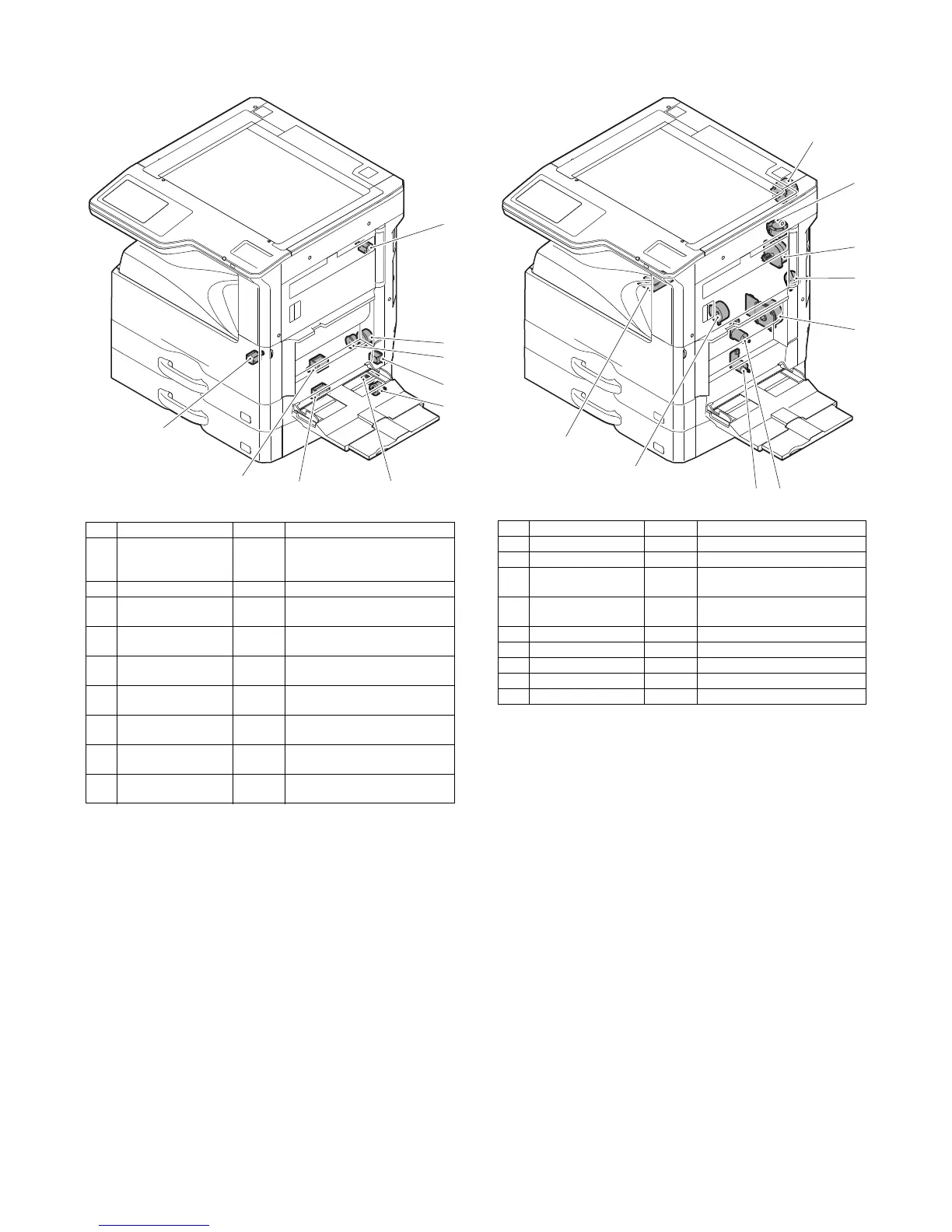

MX-M264U EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 9
9. Solenoid/Clutch 10. Drive motor
No. Name Code Function and operation
1 Paper exit gate
switching solenoid
(Option)
POGS1 Paper exit gate switcher
2 PS clutch RRC Main unit paper feed
3 1st tray paper feed
clutch
C1PUC Paper feed roller drive
4 Manual paper feed
solenoid
MPFS Manual paper feed solenoid
5 Paper feed transfer
clutch
PTRC2 Paper feed transfer clutch
6 2nd tray paper feed
clutch
C2PUC Drives the paper feed roller
7 2nd tray paper feed
solenoid
C2PUS Solenoid for the paper feed from
the tray
8 1st tray paper feed
solenoid
C1PUS Solenoid for the paper feed from
the tray
9 Separation pawl
solenoid
PSPS Separation pawl operation
solenoid
1
2
3
4
5
6
7
8
9
No. Name Code Function and operation
1 Scan motor MIRM Drives the scanner unit
2 Shifter motor OSM Shifter drive
3 Paper exit reverse
motor
POM Duplex paper switching and exit
motor
4 ADU motor ADUM Reverse pass for paper
transport
5 Main motor MM Main drive
6 Tray lift motor C1LUM Tray paper lift
7 Tray lift motor C2LUM Tray paper lift
8 Toner motor TNM Toner supply
9 Polygon motor PM Drives the polygon mirror
1
2
3
4
5
6
7
8
9

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
