Sharp MX-M264N Service Manual

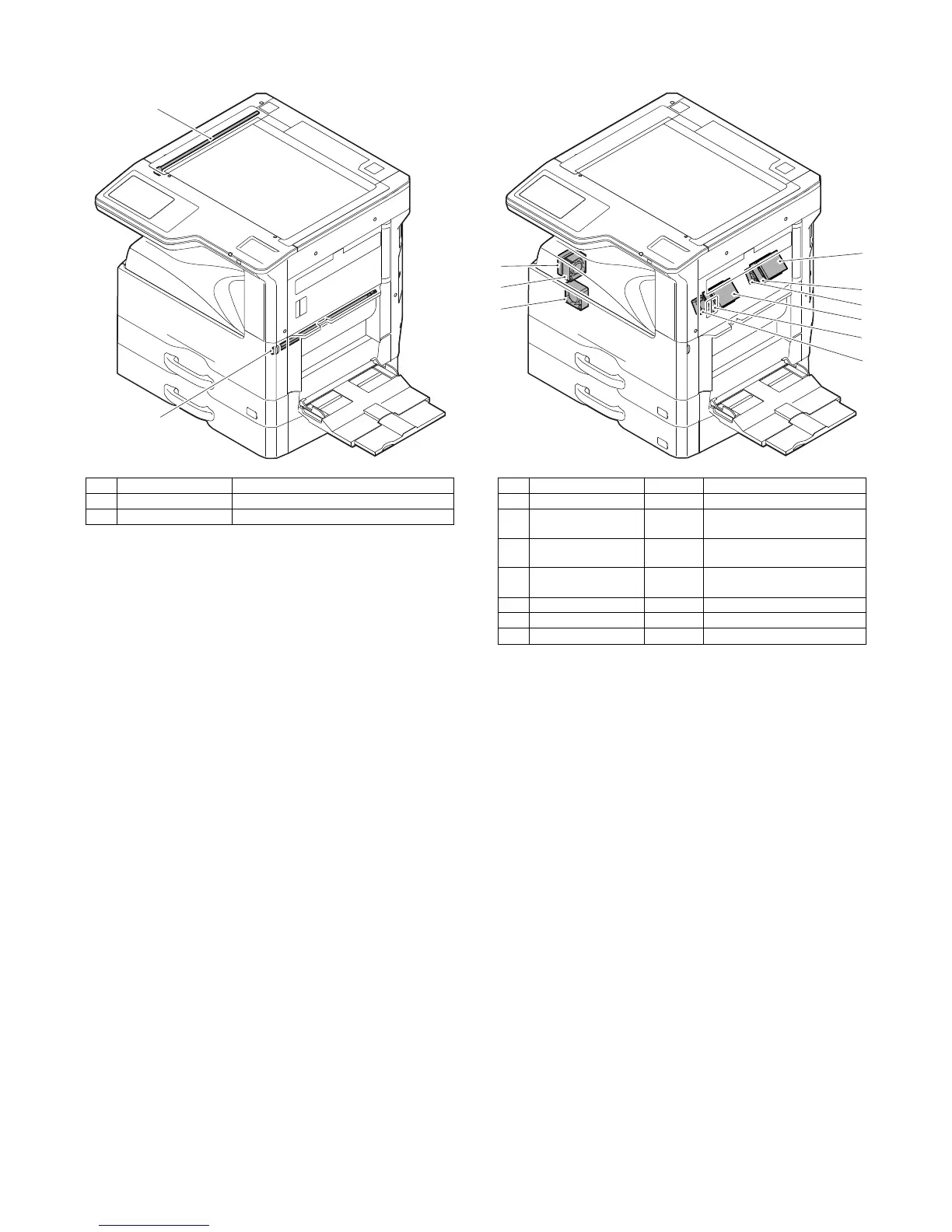

MX-M264U EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 10
11. Lamp 12. Fan/Filter
No. Name Function and operation
1 Copy lamp Image exposure lamp
2 Heater lamp Fusing heat lamp
1
2
No. Name Code Function and operation
1 Fusing fan FUFM1/2 Cools the inside of the unit.
2 Power supply cooling
fan 1
PSFM1 Cools the inside of the unit.
3 Power supply cooling
fan 2
PSFM2 Cools the inside of the unit.
4 Paper exit fan POFM1 Cools the inside of the unit.
(31cpm/35cpm machine only)
5 Paper exit fan POFM2 Cools the inside of the unit.
6Ozone filter
7Ozone filter
7
2
3
4
6
1
1
5
6

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
