MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 5

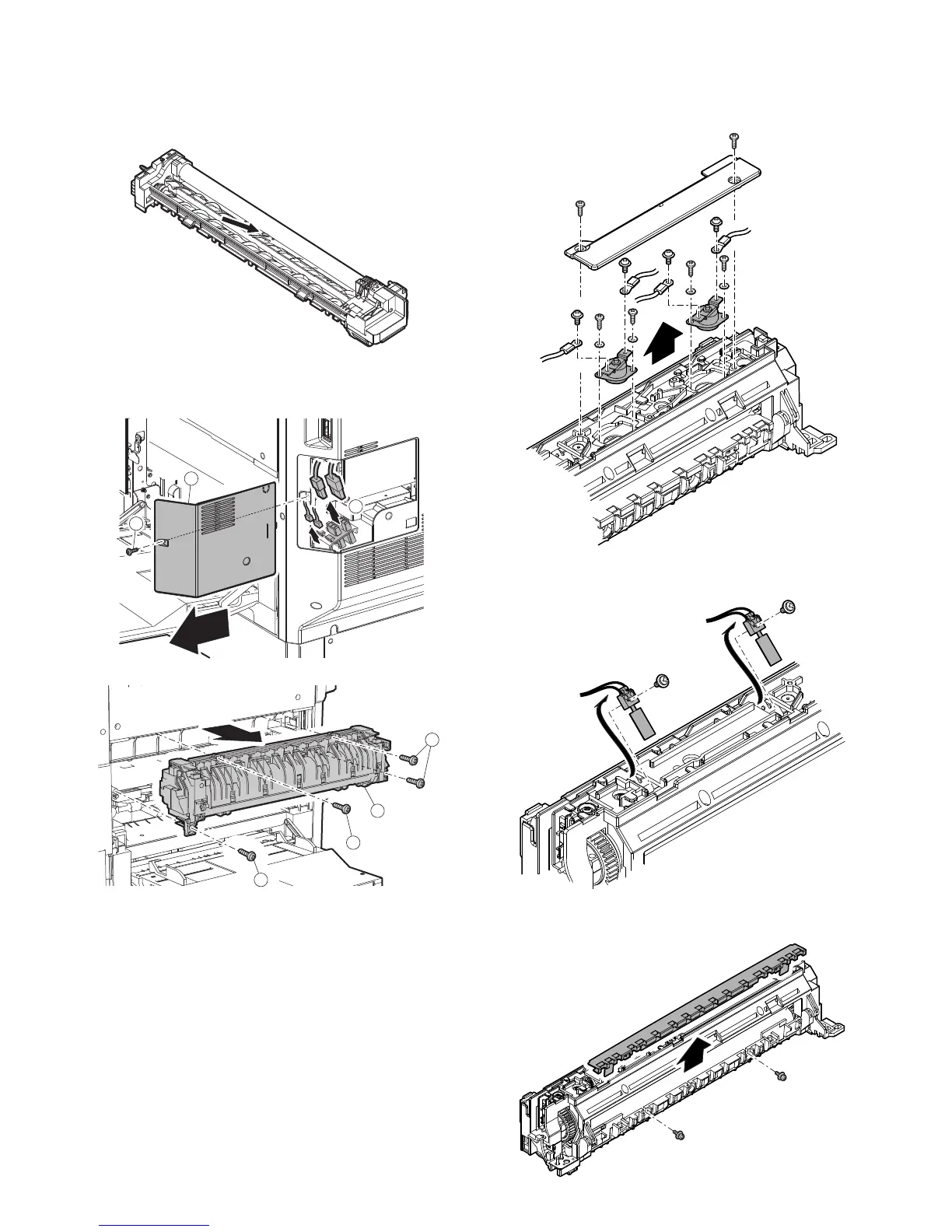

E. Toner sensor

• Clean the sensor only after removing used DV when replacing

DV.

• Without removing the MG roller, clean the sensor surface with

waste cloth in the arrow direction to remove toner.

3. Fusing section

A. Thermostat

CAUTION: When securing the lamp harness and the thermostat,

the tightening torque of the screw (4 positions) is 6-9

kgs.

B. Thermistor

C. Paper guide
