Sharp MX-M264N Service Manual

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 8

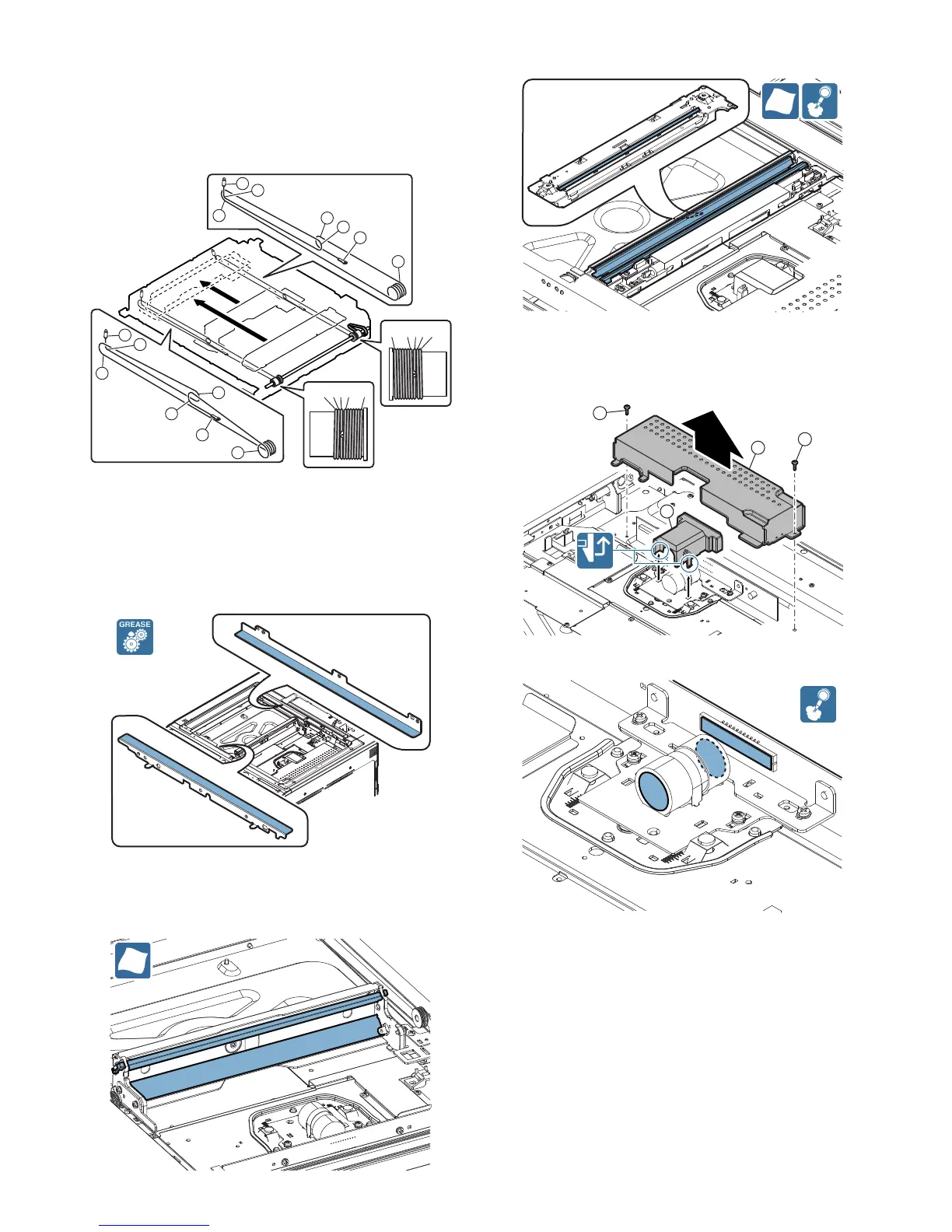

CAUTION: Wind the drive wire in the sequence of 1 to 7 as shown
in the figure below and fix it.
When winding the drive wire around the pulley, shift the
mirror unit to the vicinity of the home position, and wind
7 turns as shown in the figure, and fix the 8th turn with a
screw. Then wind two turns furthermore around the pul-
ley.
C. Rails
1) Remove the table glass.
2) Grease each rail.
CAUTION: Be careful not to allow grease to come in contact with
drive wires.
If grease contacts drive wires, clean wires thoroughly.
D. Mirror, Reflector, Scanner lamp
1) Remove the table glass.
2) Clean the No. 2 mirror, and the No. 3 mirror.
3) Clean the reflector, the scanner lamp, and the No. 2 mirror.
E. Lens, CCD
1) Remove the table glass.
2) Remove the dark box, and the cover.
3) Clean the lens, and the CCD.
8910 7 1
8 9 1071
2
1
2
6
5
7
4
3
4
3
5
6
7
1
1
2
3
1

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
