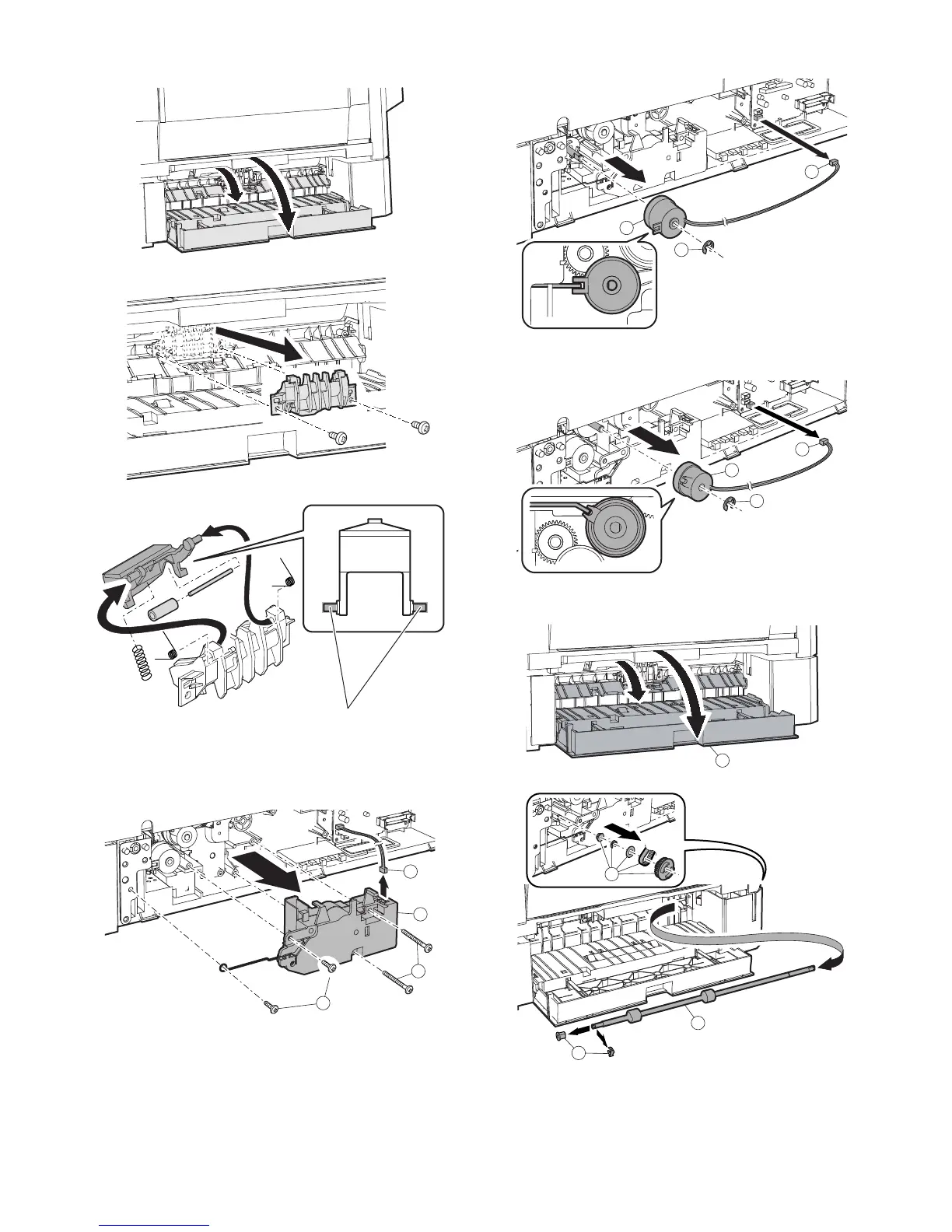

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 12

(2) Separation sheet

* Slightly apply grease GP501MR (UKOG-0012QSZZ) around the

axis. One rice grain for each.

Grease should not come out when assembling.

(3) Lift unit

(4) Transport clutch

(5) Paper feed clutch

(6) Transport roller
