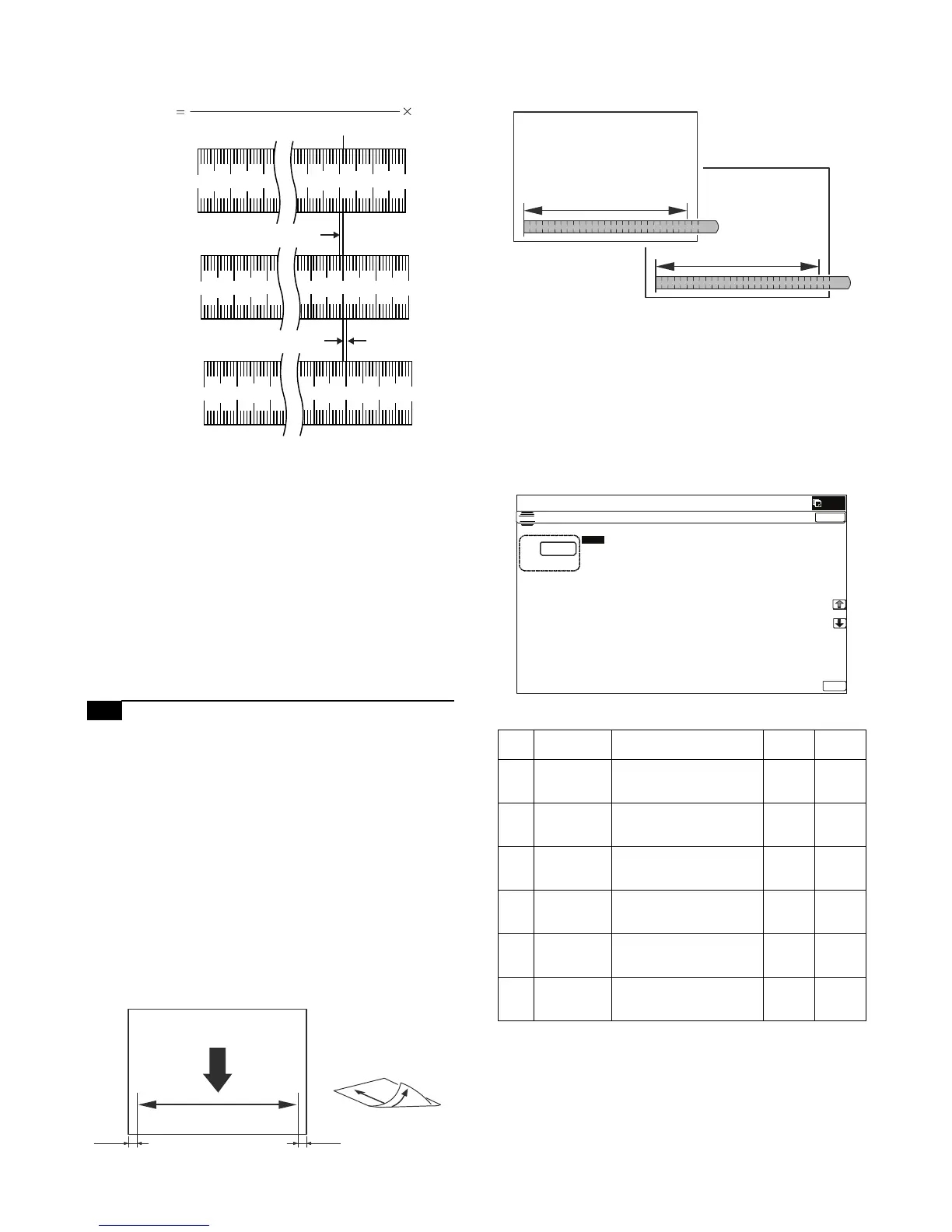

MX-M264U ADJUSTMENTS AND SETTINGS 5 – 31
3) Make a normal copy and obtain the copy magnification ratio.
Go to the copy mode, and make a copy.
4) Check that the copy magnification ratio is within the specified
range (100 1.0%).
If the copy magnification ratio is within the specified range (100
1.0%), the adjustment is completed. If the copy magnification
ratio is not within the specified range, perform the following
procedure.
5) Change the CCD (SUB) adjustment value of Simulation 48-1.
When the adjustment value is increased, the copy magnifica-
tion ratio in the sub scanning direction is increased.
When the adjustment value is changed by 1, the copy magnifi-
cation ratio is changed by about 0.1%.
Repeat the procedures 3) - 5) until the copy magnification ratio is
within the specified range (100 1.0%).
13-C Scan image magnification ratio adjustment
(main scanning direction)
(Manual adjustment) (RSPF mode)
This adjustment must be performed in the following cases:
* When the scan control PWB is replaced.
* When the EEPROM on the scan control PWB is replaced.
* When U2 trouble occurs.
* When the copy magnification ratio of the RSPF mode copy
image in the main scanning direction is not proper.
* When the RSPF is disassembled.
a. Adjustment procedures
1) Place the duplex adjustment chart shown below on the docu-
ment tray of the RSPF.
The adjustment chart is prepared by the following procedures.
Use A4 (11" x 8.5") paper, and put marks on both sides and
both surfaces of the paper at 10mm from each edge.
2) Make a duplex copy at the normal ratio on A4 paper.
3) Measure the images on the copy paper and the original
images.
4) Obtain the image magnification ratio according to the following
formula:
Image magnification ratio = Original size / Original size x 100
(%)
Image magnification ratio = 99 / 100 x 100 = 99 (%)
If the image magnification ratio is within the specified range
(100 0.8%), there is no need to perform the adjustment.
If it is not within the specified range, perform the following pro-
cedures.
5) Enter the SIM 48-1 mode.
RSPF
6) Select an adjustment item of SPF (MAIN)/SPFB (MAIN) with
the scroll key.
10 20 90
100 110
10 20 90
100 110
10 20 90
100 110
(Example 1)
Copy A
(Shorter than
the original)
(Example 2)
Copy B
(Longer than
the original)
Scale
(Original)
Copy magnifi-
cation ratio
(Original dimension - Copy dimension)
Original dimension
100%
A4 size
(Both the front surface
and the back surface)
10mm10mm
Paper pass direction
Item Display Content
Setting
range
Default
value
A CCD(MAIN) SCAN main scanning
magnification ratio
adjustment (CCD)
1 - 99 50
B CCD(SUB) SCAN sub scanning
magnification ratio
adjustment (CCD)
1 - 99 50
C SPF(MAIN) RSPF document front
surface magnification ratio
adjustment (Main scan)
1 - 99 50
D SPF(SUB) RSPF document front
surface magnification ratio
adjustment (Sub scan)
1 - 99 50
E SPFB(MAIN) RSPF document back
surface magnification ratio
adjustment (Main scan)
1 - 99 50
F SPFB(SUB) RSPF document back
surface magnification ratio
adjustment (Sub scan)
1 - 99 50
SPF (MAIN) Main scanning direction image magnification ratio
(Front surface)
SPFB (MAIN) Main scanning direction image magnification ratio
(Back surface)
original
10
50
100 150
200
250
copy
10
50
100 150
200
250
ǂǂǂ6,08/$7,21
ǂǂ12
&/26(
7(67
0$*1,),&$7,21$'-8670(17
To Next Page
