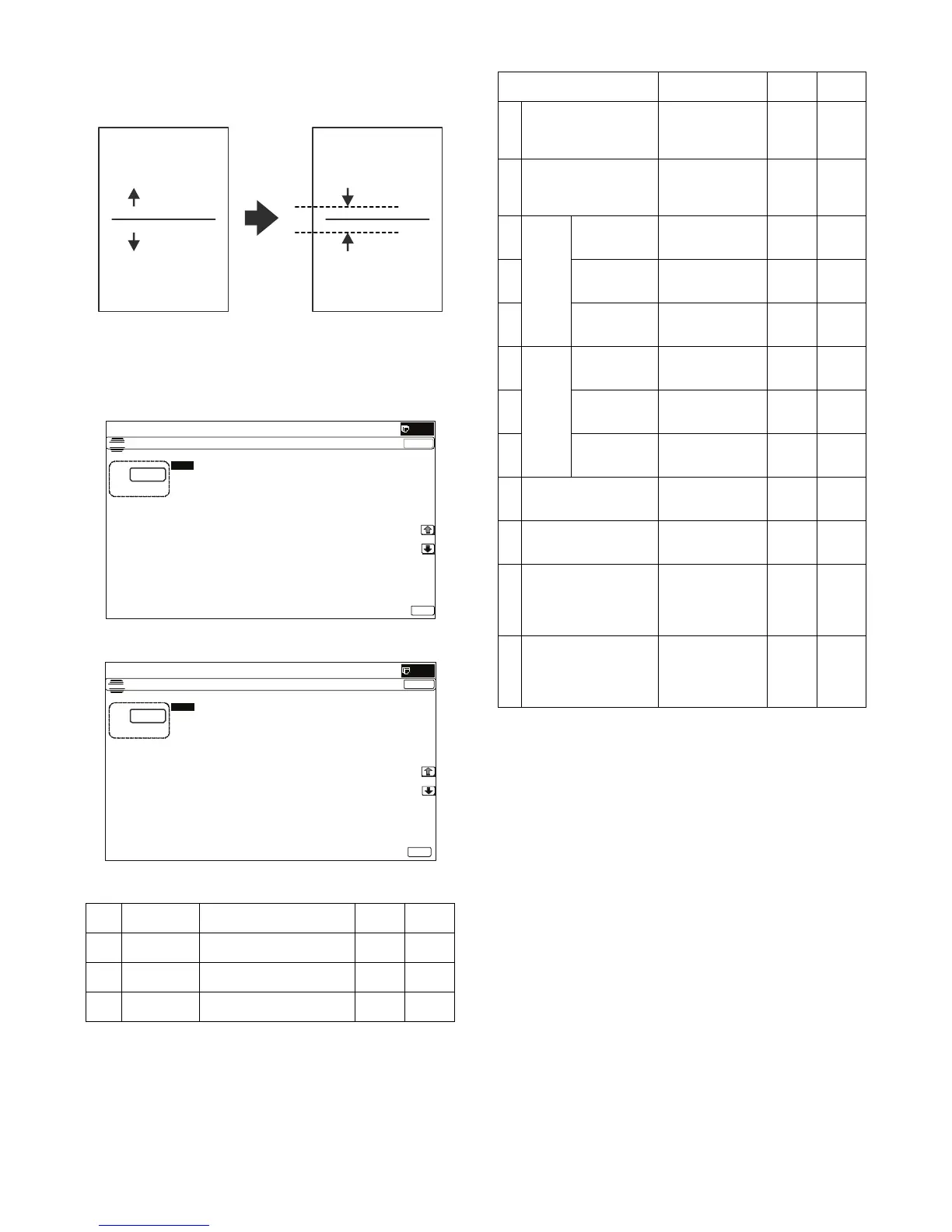

MX-M264U ADJUSTMENTS AND SETTINGS 5 – 34
2) Set the adjustment chart to the RSPF.
3) Make a duplex copy in the normal magnification ratio from the
manual paper feed tray, and check the image position on the
front surface and the back surface of the copy paper.
If the difference is within the range of 0 2.7mmm there is no
need to perform the adjustment.
If the adjustment is required, perform the following procedures.
4) Enter the SIM 50-12 or 50-6 mode.
SIM50-12
A - C: When the adjustment value is increased, the image
position is shifted to the rear frame side.
1step = 0.1mm
SIM50-6
* Item A, B: When the adjustment value is increased, the scan
timing is delayed.
* Item C - H: When the adjustment value is increased, the
image loss is increased.
* Item A - H: 1 step = 0.1mm change
* The SPF rear edge image loss setting is provided for
countermeasures against the case when shades are
produced.
5) Select an adjustment mode with the scroll key.
SIM50-12
SIM50-6
6) Enter an adjustment value with 10-key, and press [OK] key.
(Change for change in the adjustment value: 0.1mm/step)
(When the adjustment value is increased, the print image is
shifted to the rear.)
Repeat the procedures of 2) - 6) until a satisfactory result is
obtained.
Item Display Content
Setting
range
Default
value
A OC Document table image off-
center adjustment
1 - 99 50
B SPF(SIDE1) SPF front surface image off-
center adjustment
1 - 99 50
C SPF(SIDE2) SPF back surface image off-
center adjustment
1 - 99 50
original copy
a
b
Item/Display Content
Setting
range
Default
value
A SIDE1 Front surface
document scan
position adjustment
(CCD)
1 - 99 50
B SIDE2 Back surface
document scan
position adjustment
(CCD)
1 - 99 50
CImage
loss
amount
setting
SIDE1
LEAD_EDGE
(SIDE1)
Front surface lead
edge image loss
amount setting
0 - 99 20
D FRONT_REAR
(SIDE1)
Front surface side
image loss amount
setting
0 - 99 20
E TRAIL_EDGE
(SIDE1)
Front surface rear
edge image loss
amount setting
0 - 99 40
FImage
loss
amount
setting
SIDE2
LEAD_EDGE
(SIDE2)
Back surface lead
edge image loss
amount setting
0 - 99 20
G FRONT_REAR
(SIDE2)
Back surface side
image loss amount
setting
0 - 99 20
H TRAIL_EDGE
(SIDE2)
Back surface rear
edge image loss
amount setting
0 - 99 40
I OFFSET_SPF1 RSPF front surface
document off-center
adjustment
1 - 99 50
J OFFSET_SPF2 RSPF back surface
document off-center
adjustment
1 - 99 50
K SCAN_SPEED_SPF1 RSPF document
front surface
magnification ratio
adjustment (Sub
scan)
1 - 99 50
L SCAN_SPEED_SPF2 RSPF document
back surface
magnification ratio
adjustment (Sub
scan)
1 - 99 50
SPF(SIDE1) Front surface mode
SPF(SIDE2) Back surface mode
OFFSET SPF1 Front surface mode
OFFSET SPF2 Back surface mode
To Next Page
