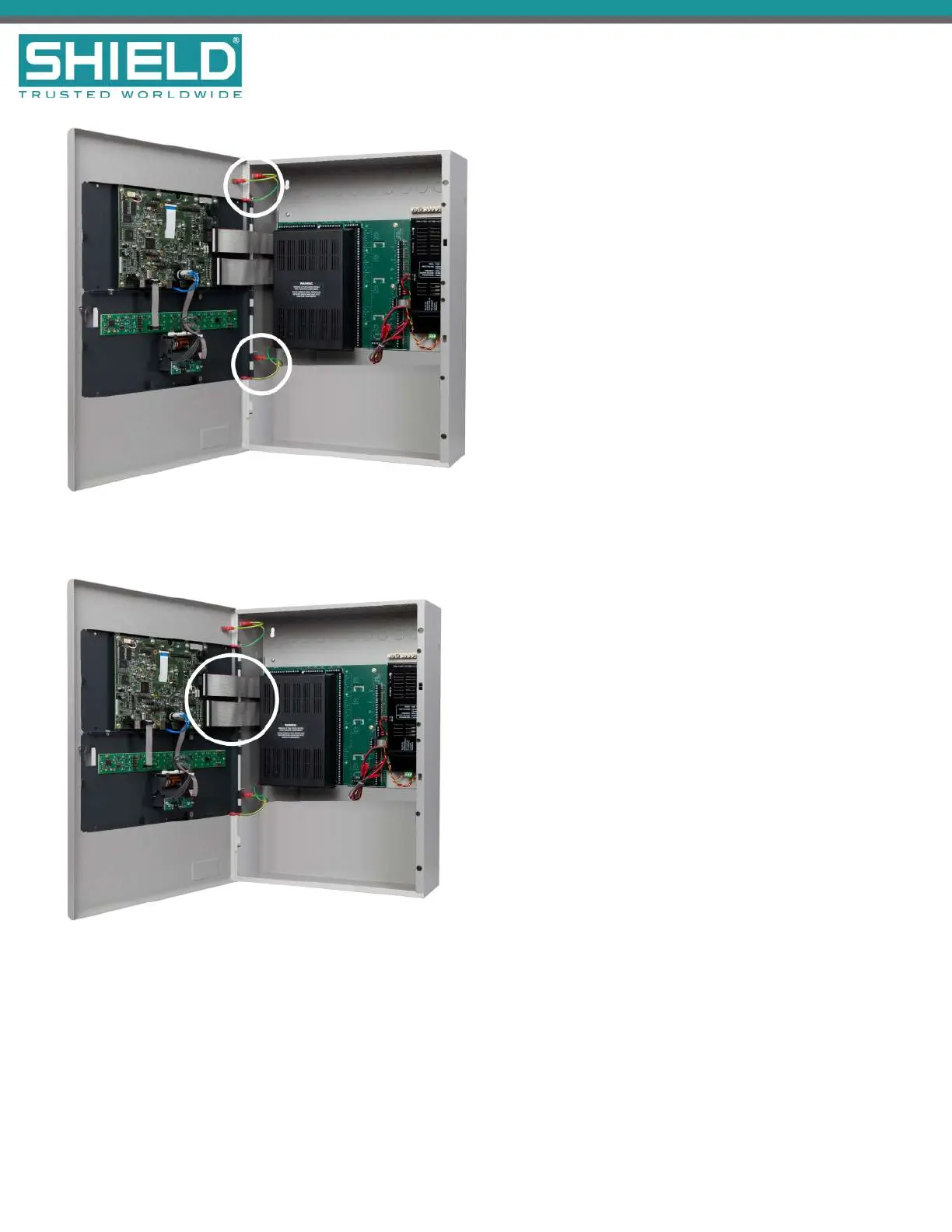

2. Disconnect the ribbon cables from the LCDMain Processor Board, leaving the cable ends connected to
the Main Back Board.
3. Remove the hinge pins of the fascia and then remove it from the cabinet box. Return the hinge pins to the
hinges of the cabinet box for safekeeping.
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 20
Installation
