Panel Module Slots
Board Slot C

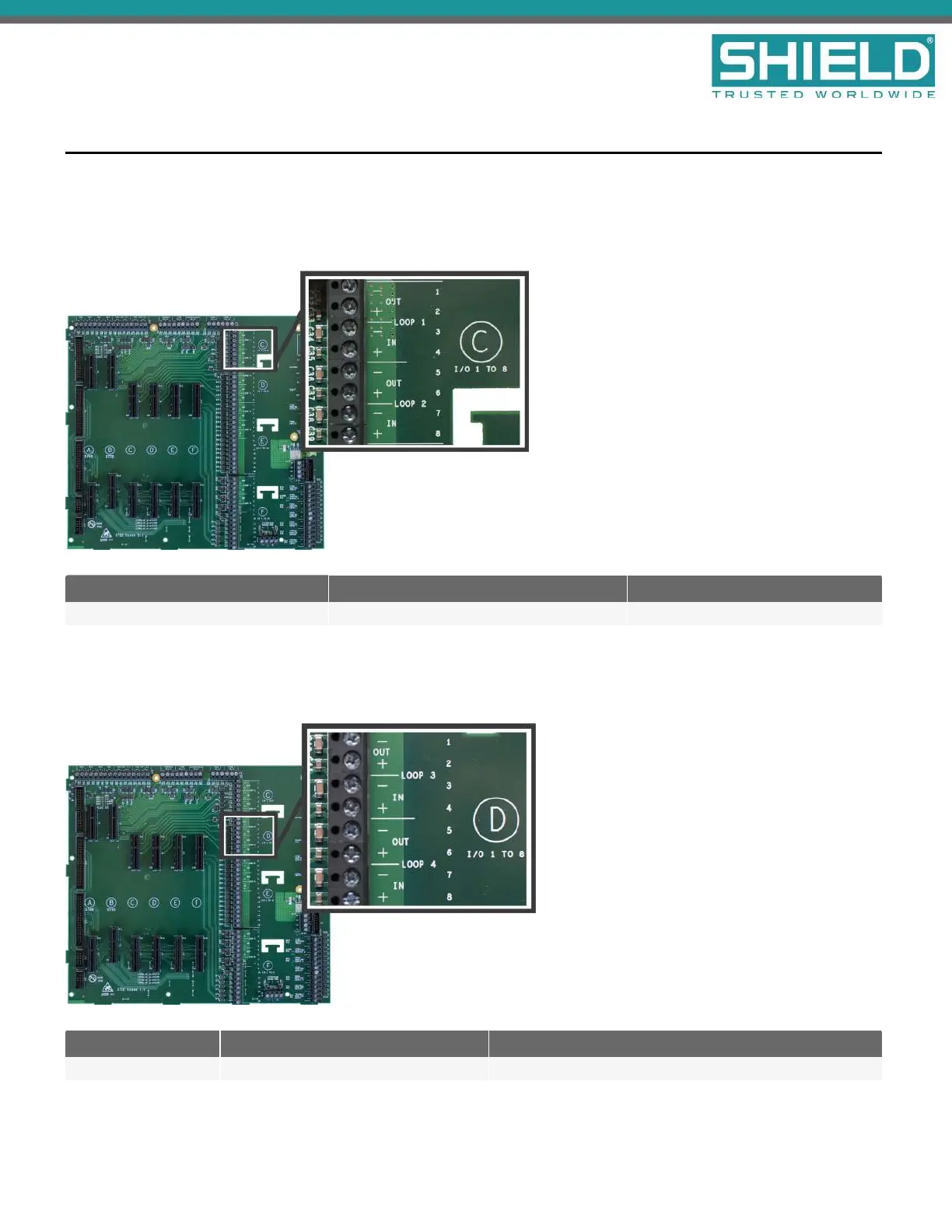

The following figure illustrates the Board Slot C terminals of loops 1 and 2:
Field Terminals BoardLocation Function
1-4 and 5-8 Slot C Loop 1 and Loop 2
Board Slot D
The following figure illustrates the Board Slot D terminals of loops 3 and 4:
Field Terminals BoardLocation Function
1-4 and 5-8 Slot D Loop 3 and Loop 4
Main Back Board (AUL-9022)
