Shield Aura - Board Slot E; Board Slot F

Board Slot E

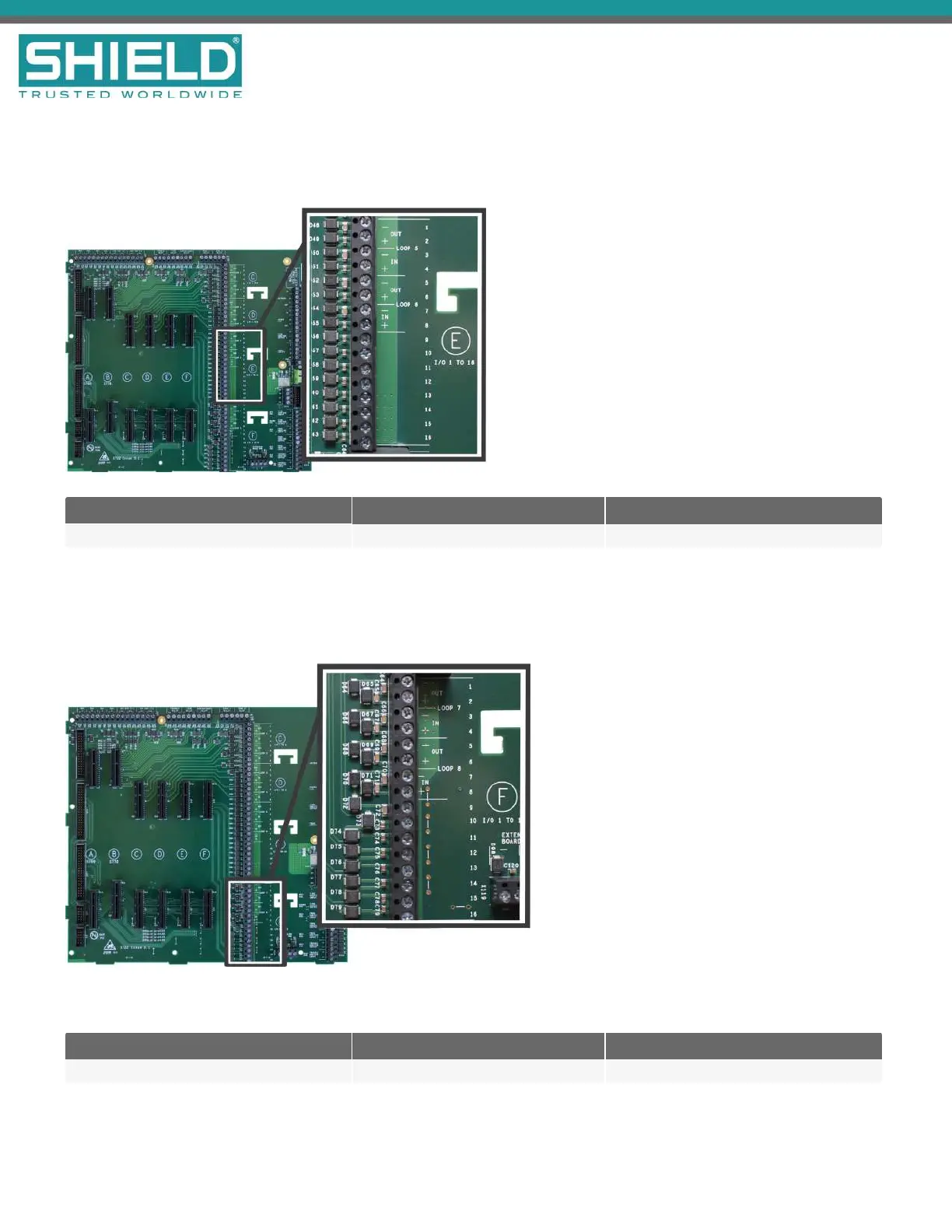

The following figure illustrates the Board Slot E terminals of loops 5 and 6:
Field Terminals BoardLocation Function
1-4 , 5-8, and 9-16 Slot E Loop 5 and Loop 6
Board Slot F
The following figure illustrates the Board Slot F terminals of Loops 7 and 8:
If you have, or plan to obtain, a Media Gateway Panel Module, it must be installed into Board Slot F.
Field Terminals BoardLocation Function
1-4 , 5-8, and 9-16 Slot F Loop 7 and Loop 8
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 76
Main Back Board (AUL-9022)
