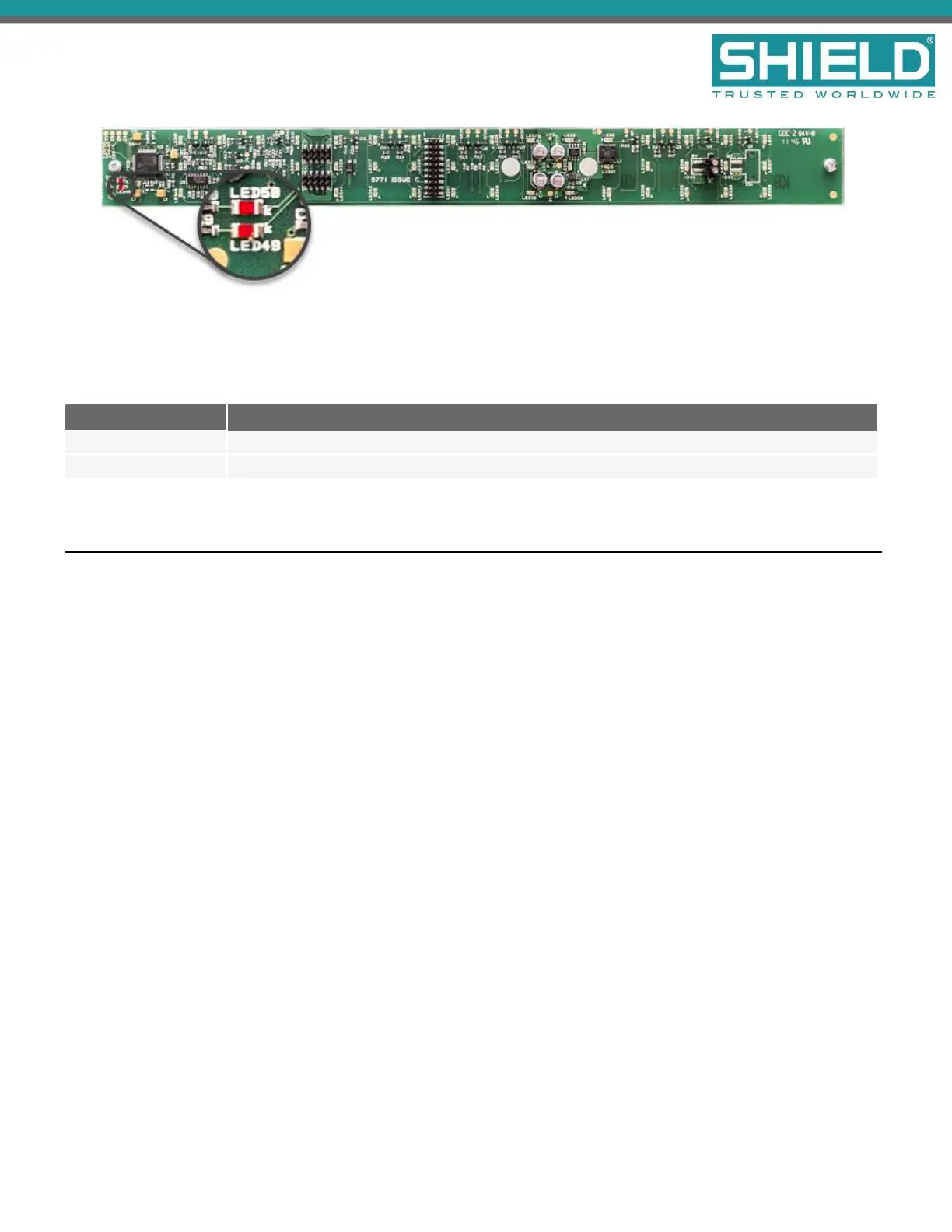

The component side of the Zone LED module is visible when the cabinet door is open. Zone LED indicators are
not present on the component-side of the Zone LED module. The opposite side of the image shown contains
Zone LED indicators.
LEDNumber Description
LED 49 Flashes red to identify receiving data.
LED50 Flashes red to identify functional status of the Zone LEDmodule.
16 Channel I/O Interface Card (AUL-9072)
The 16 Channel I/O Interface enhances the versatility of the alarm system by providing additional input and
output capabilities to the Aura Fire Alarm ControlPanel. Inputs and outputs can be selected for up to 16
individual channels. All inputs and outputs are configured in the same way as devices connected to addressable
loops of the panel. The 16 Channel I/O Interface can be configured to contribute or act upon cause and effect
logic.
Use Case Examples
The 16 Channel I/OInterface can be used to interface the Aura panel to a NAC extender or Voice Evacuation
system, by providing
l inputs to the Aura panel for dry contact closures such as General Trouble, AC Power Trouble, or Battery
Trouble from these devices.
l outputs from the panel to control various NAC or Voice Evacuation outputs.
The 16 Channel I/OInterface can be used to interface the Aura panel to a secondary panel or releasing panel, by
providing
l inputs to the Aura panel for dry contact closures such as Fire, Supervisory, and Trouble from these panels,
and various stages of release from the releasing panel.
l outputs from the panel to activate NAC outputs on these panels.
Overview
