Extension Board Power Terminals

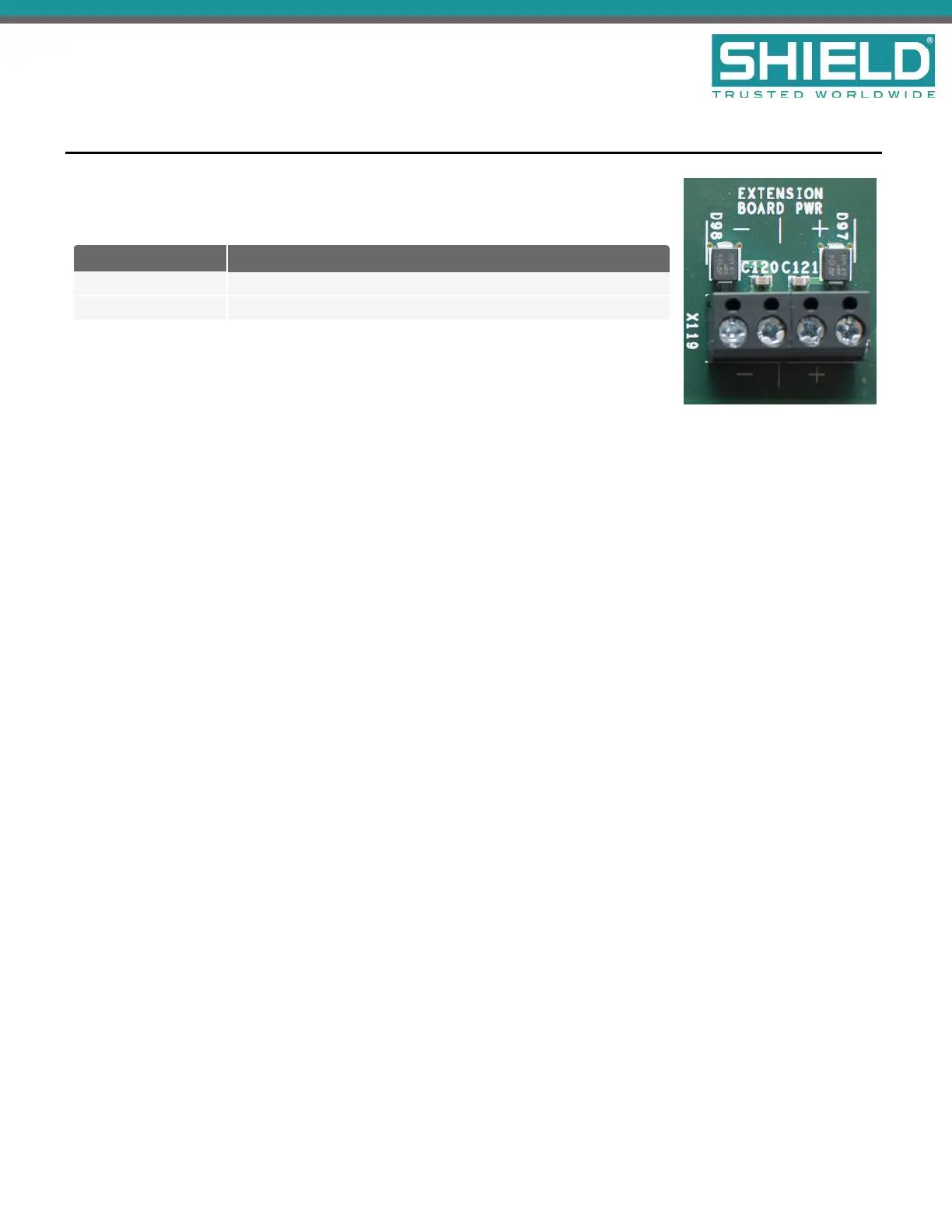

This figure illustrates Extension Board Power Terminals of the Main Back Board.
These terminals are non-power limited.
Field Terminals Description
(- ) Two terminals for providing 0 VDC return-power (- ).
(+) Two terminals for providing 24 VDC power (+ ).
These terminals are used for factory wiring purposes only.
