MAIN BACK BOARD (AUL-9022)
The Main Back Board of the Aura Fire Alarm ControlPanel provides slots for required and optional panel
modules, as well as for field wiring and power supply terminations.
Minimum functions of the Aura Fire Alarm ControlPanel are provided when Slot A of the Main Back Board
contains System A Panel Module, Slot B contains System B Panel Module, and Slots C, D, E, or F contain a
Dual Loop Panel Module. Two addressable loops are provided by the Dual Loop Panel Module in this

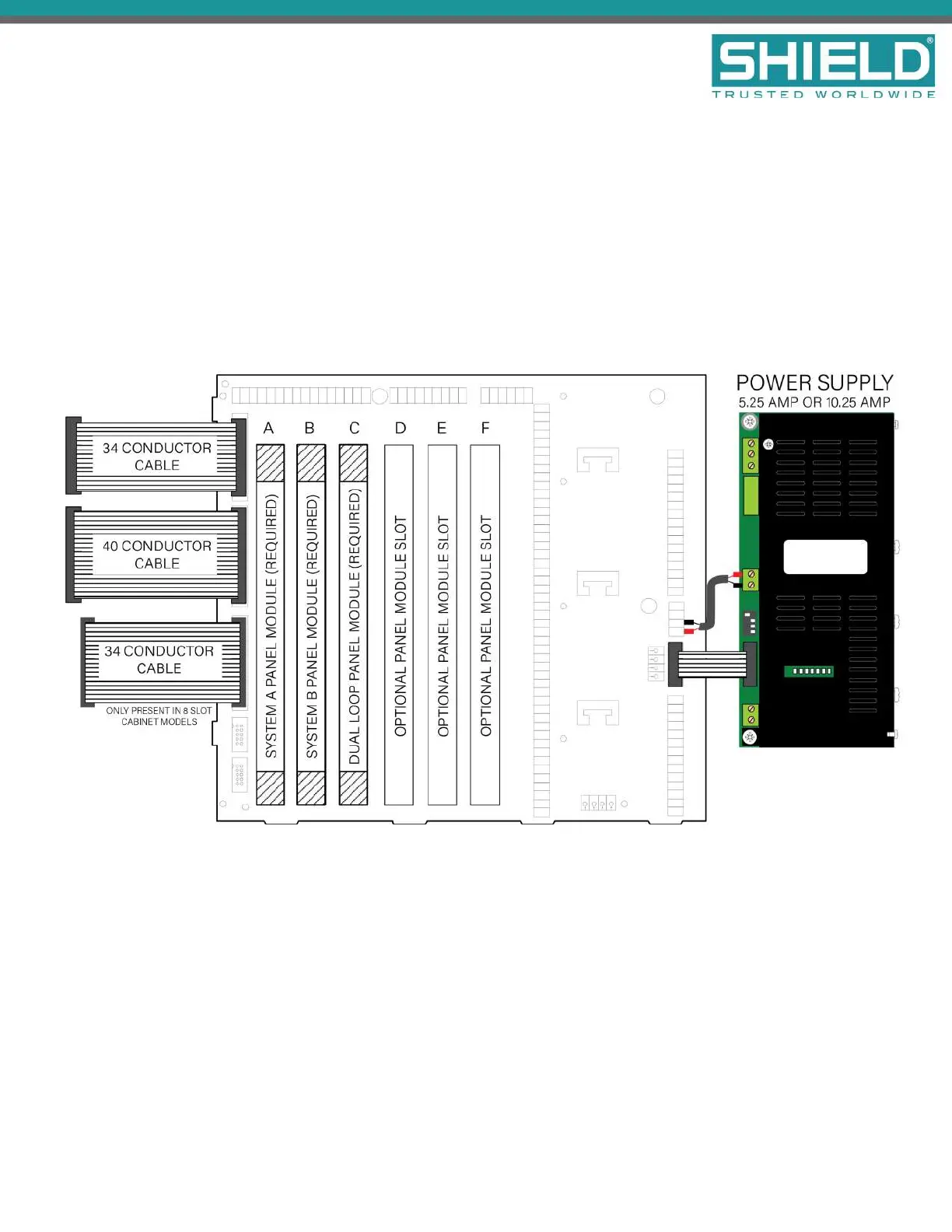

configuration. The following figure illustrates the Main Back Board and the Power Supply of the cabinet box:
