Shield Aura - Connecting Field Wiring; Ferrite Installation

Connecting Field Wiring
Power-limited conductors must be installed using Types FPL, FPLR, FPLP, or equivalent cables. When
connecting field wiring, separate high and low voltage wiring in the enclosure with a minimum gap of 0.25".
WARNING! Disconnect AC and battery power before making any field connections.
WARNING! Do not route low-voltage cabling through the same conduit as AClines. ACpower lines should be
threaded through a dedicated conduit. Refer to the following illustration when connecting any wiring.
Ferrite Installation

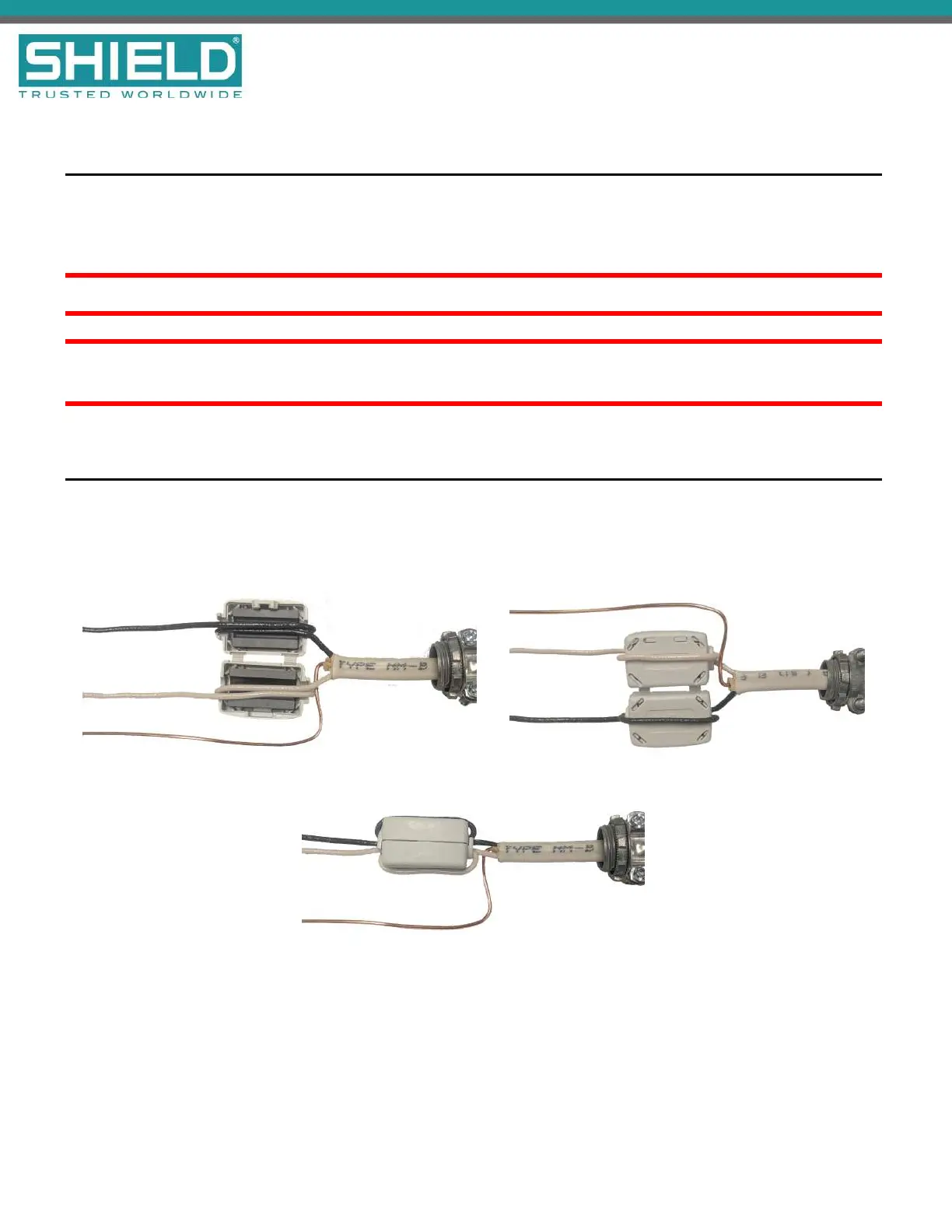

To reduce the impact of electromagnetic interference (EMI), the ferrite provided with the Aura Fire Alarm
ControlPanel must be installed onto the incoming AC wiring. These photos illustrate how the ferrite should be
installed.
Internal View
External View
Closed View
Live and Neutral wire cores must be doubled around the ferrite. When the cores are in place, close the ferrite
with a ‘click' sound.
