Field Terminal Assignments
Panel module slot positions on the Main Back Board correspond to specific field terminal locations on the Main
Back Board.
Slot Field Terminal Location
C Addressable Loops 1 and 2
D Addressable Loops 3 and 4
E Addressable Loops 5 and 6 or 8 Channel Relay.
F Addressable Loops 7 and 8 or 8 Channel Relay, or Media Gateway
Slots A and B do not contain corresponding lettering on field terminals of the Main Back Board. These slots are
dedicated system boards that operate primary functions. System A Panel Module must connect to slot position A
on the Main Back Board and System B Panel Module must connect to slot position B on the Main Back Board.
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 74

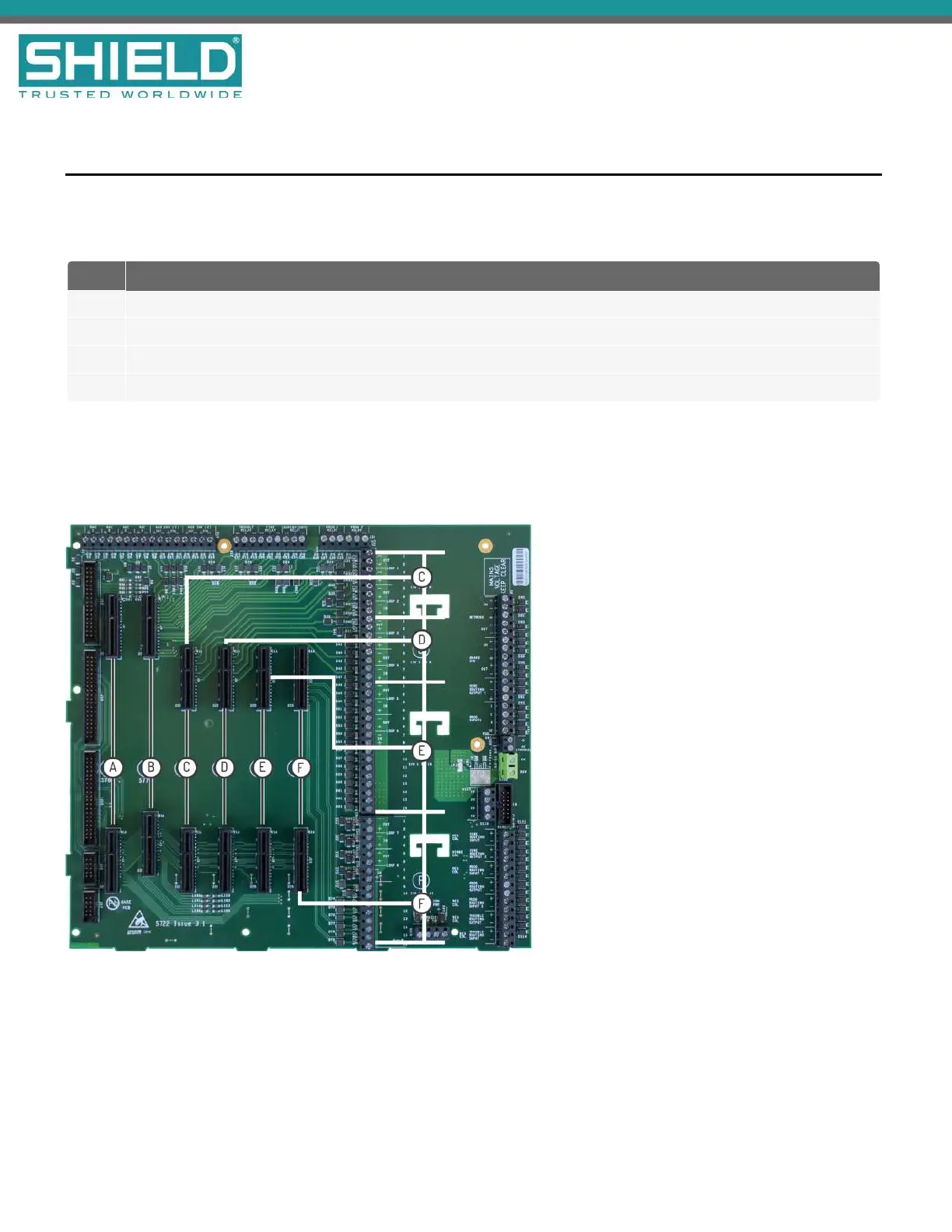

Main Back Board (AUL-9022)
