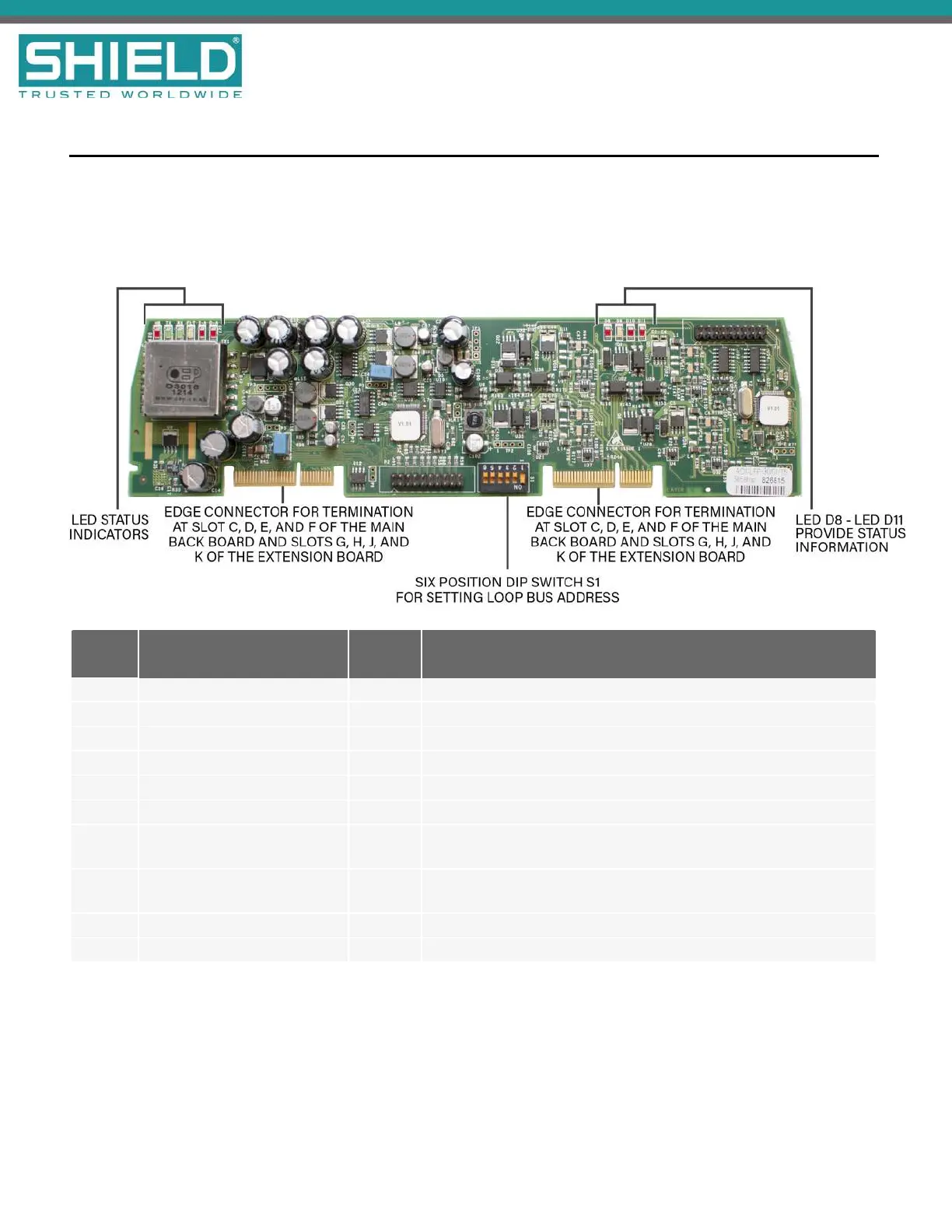

Dual Loop Panel Module (AUL-9058)
The Dual Loop Panel Module monitors loop device status and provides status to the panel processor. It holds
device configurations and operates in a standalone manner when catastrophic failures occur. The Dual Loop
Panel Modules can be connected in any available slot (C-K) on the Main Back Board to provide this operating
function.
LED
Label
Name Color Description
LED 1 Heartbeat Red Identifies functional status of Dual Loop Panel Module.
LED 2 Rx Comms Green A blinking green light indicates that the module is receiving data.
LED 3 Tx Comms Green A blinking green light indicates that the module is transmitting data.
LED 4 Trouble Yellow A blinking yellow light indicates that an error condition.
LED 5 Input Active LED Red Factory diagnostic / Reserved for future use.
LED 6 Output Active LED Red Factory diagnostic / Reserved for future use.
LED D8 Heartbeat for Processor 2 Red
A blinking red light flashes red to identify functional status of
Processor 2.
LED D9 Trouble status for Processor 2 Yellow
A blinking yellow light flashes to identify the trouble status of
Processor 2.
LED D10 Loop 1 State Red Factory diagnostic / Reserved for future use.
LED D11 Loop 2 State Red Factory diagnostic / Reserved for future use.
