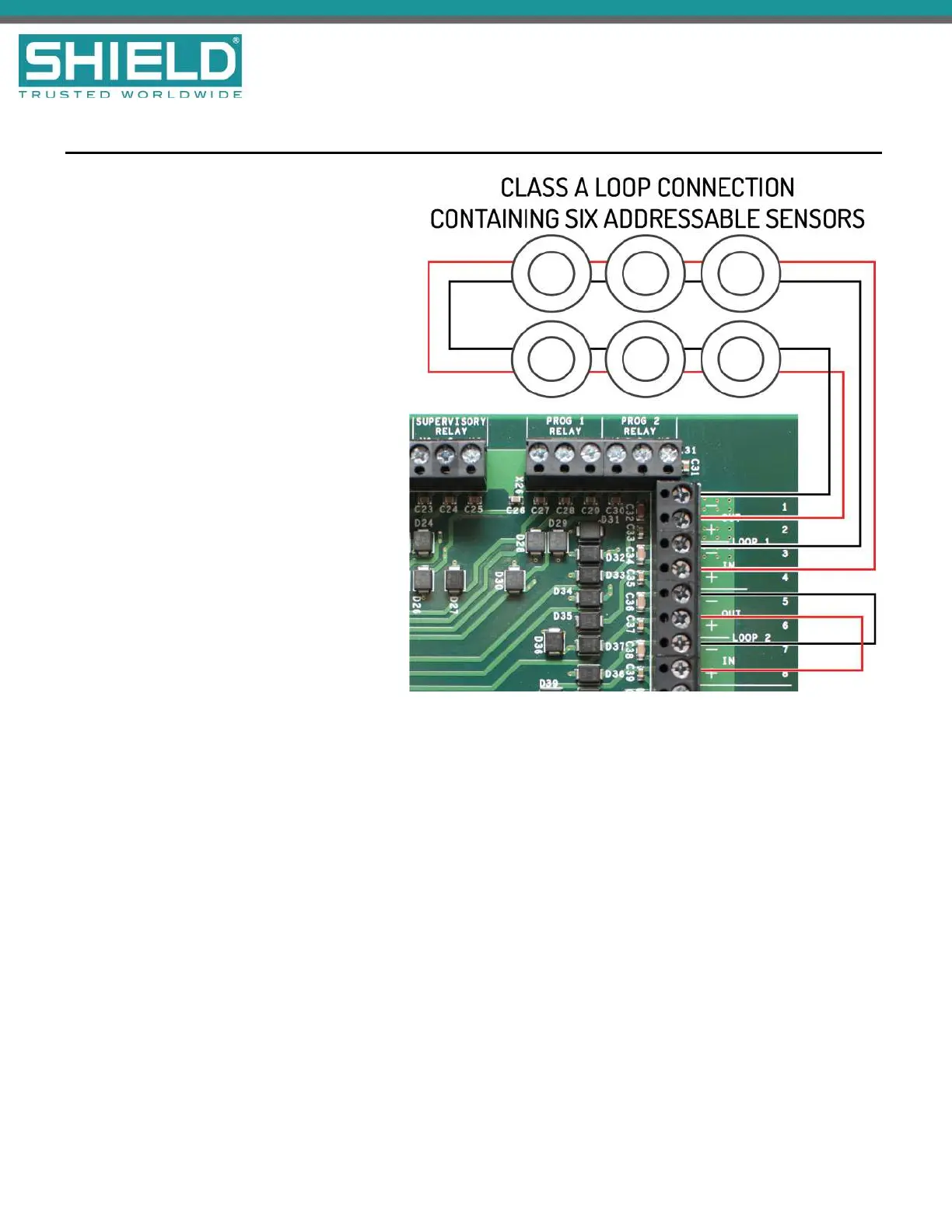

Class A SLCLoops
1. Connect Class A loops to the terminal
strip of the Aura Fire Alarm
ControlPanel.
2. When the loop is unused, the loop
termination jumpers provided with the
panel should be replaced with 14-22
AWG SLCcable.
The Aura Fire Alarm ControlPanel provides
a trouble signal when unused loops are not
terminated. All loops are supervised.
Follow NFPAguidelines for placement of
isolators with Class Awiring.
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 34
Installation
