Installing Municipal Boxes

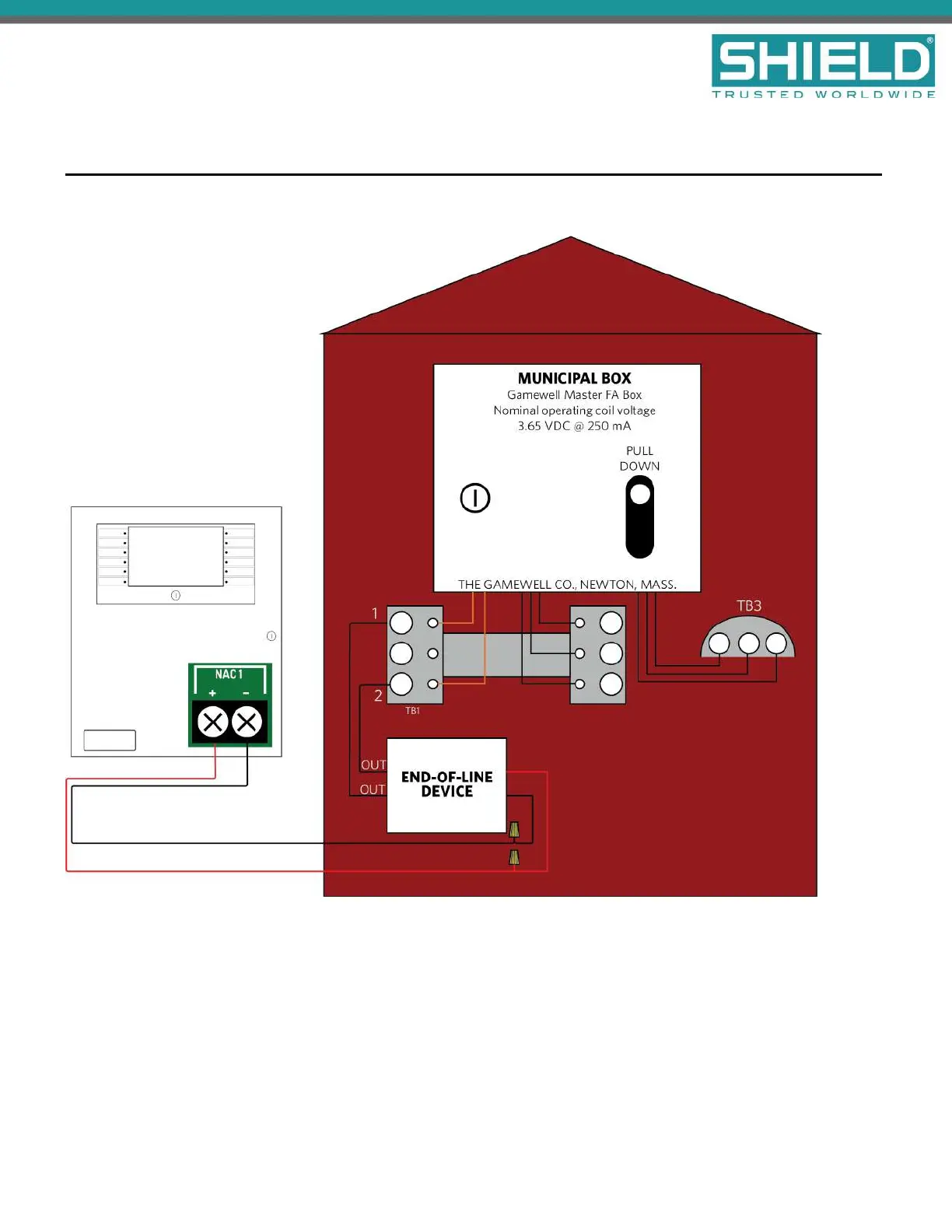

The figure below illustrates typical municipal box connections of the Aura Fire Alarm ControlPanel:
Perform this installation to connect the Gamewell Master F. A. Box for municipal-station notification. Install this
product in accordance with NFPA 72, NEC 70, the National Electrical Code and all local codes. The NAC output
can provide a non-pulsing, regulated 24 VDC, 2.5A maximum output when a fire condition is reported to the
Aura Panel. The OUT leads of the EOLD (K14070) shall connect directly to the terminal block of the municipal
box.
Installation
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 45
