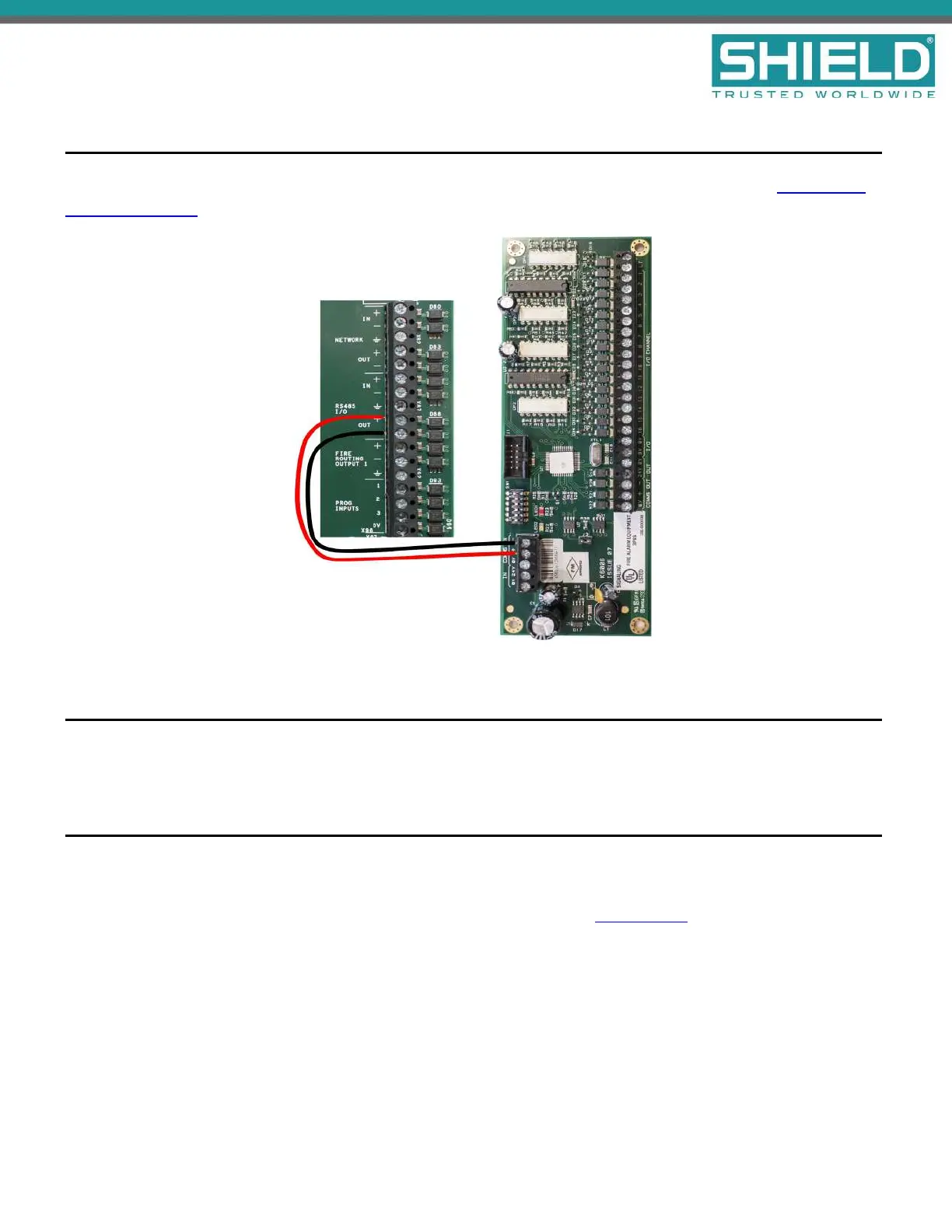

RS-485 I/O
These terminals provide data communication between the panel and legacy products, such as the 16 Channel
I/O Interface Card. Connections are:
Fire Routing Output 1
Reserved for future use.
Prog Input
There are three programmable Inputs (PROG INPUT) and one 0V terminal. The inputs are non-supervised and
are designed to be activated by voltage-free contacts. To activate, connect a PROG INPUT to the 0V terminal.
Do not insert more than one conductor per terminal. There are additional 0V terminals if needed.
The default configuration of all three programmable inputs is non-latching, transparent. They must be configured
to perform a function. The line impedance of the circuit connection to the Prog Input terminals must be less than
50 ohms. Each programmable input can be separately configured to provide actions, delays, zones, and location
messaging using the panelGUI.
Installation
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 41
