Shield Aura - Fiber Optic Networking

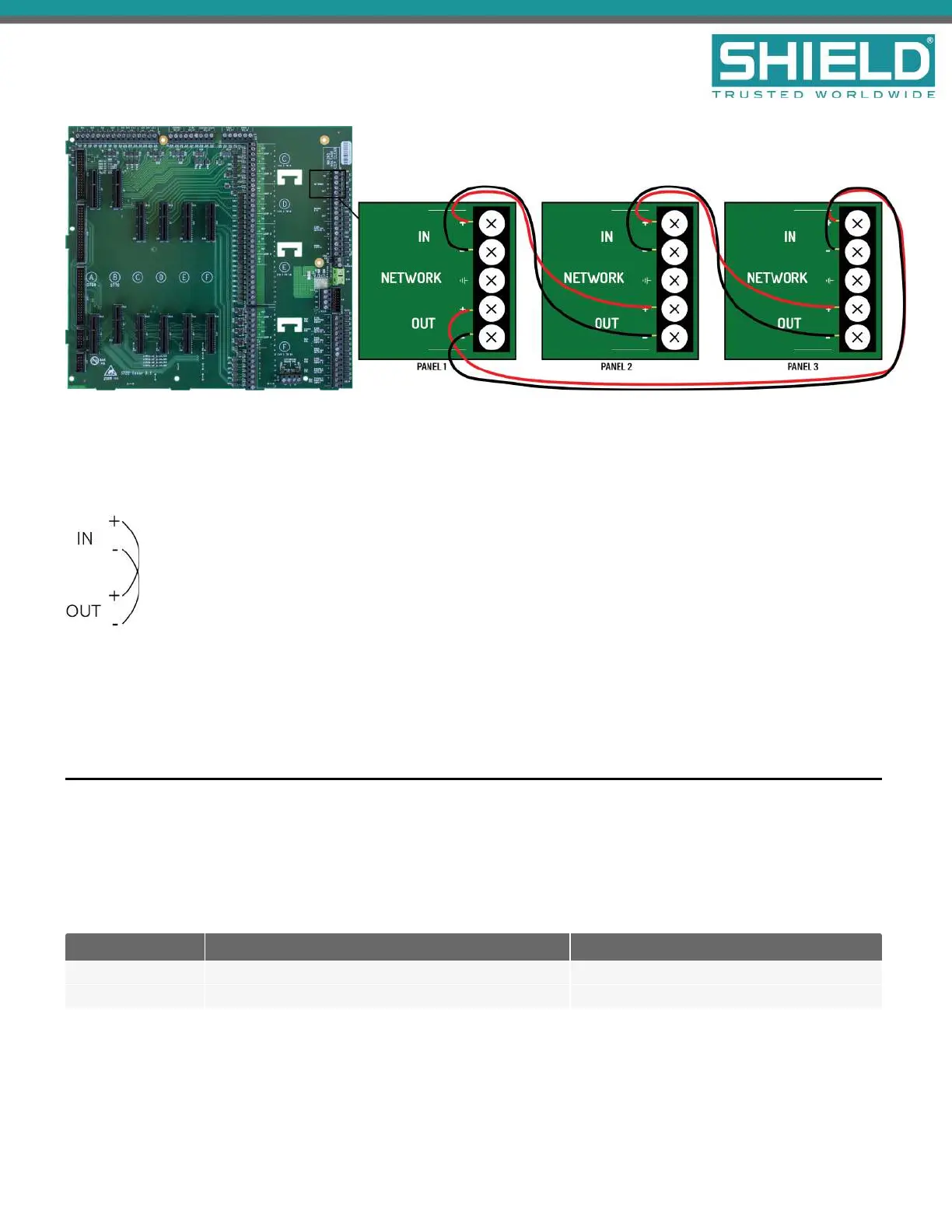

Because network connections are supervised, if a network module is installed and there are no other devices on
the network, the INand OUT network terminals must be connected together to prevent an
OPENCIRCUITTROUBLEindication.
Bridge networking is supported for Omega and OmegaX panels. Advanced features are not available when
using bridge networking.
Fiber Optic Networking
When designing or installing a network of panels, any network segment or combination of segments can be
connected with fiber optic cable instead of copper wire. Two fiber optic converters are required per segment as
shown. Connections between the panel and the converter must be within 20 feet and wired in conduit (or
equivalently protected against mechanical injury). Converter DIP Switch settings must be set as shown . Refer to
the Equipment List for the model numbers of the fiber converters.
Single-Mode Multi-Mode
Fiber Types 9/125 μm, 8.3/125 μm, 7/125 μm, or 10/125 μm 50/125 μm, 62.5/125 μm, or 100/140 μm
Wiring Distance 24.8 miles (40 km) 3.1 miles (5 km)
Installation
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 29
