Extension Board Features

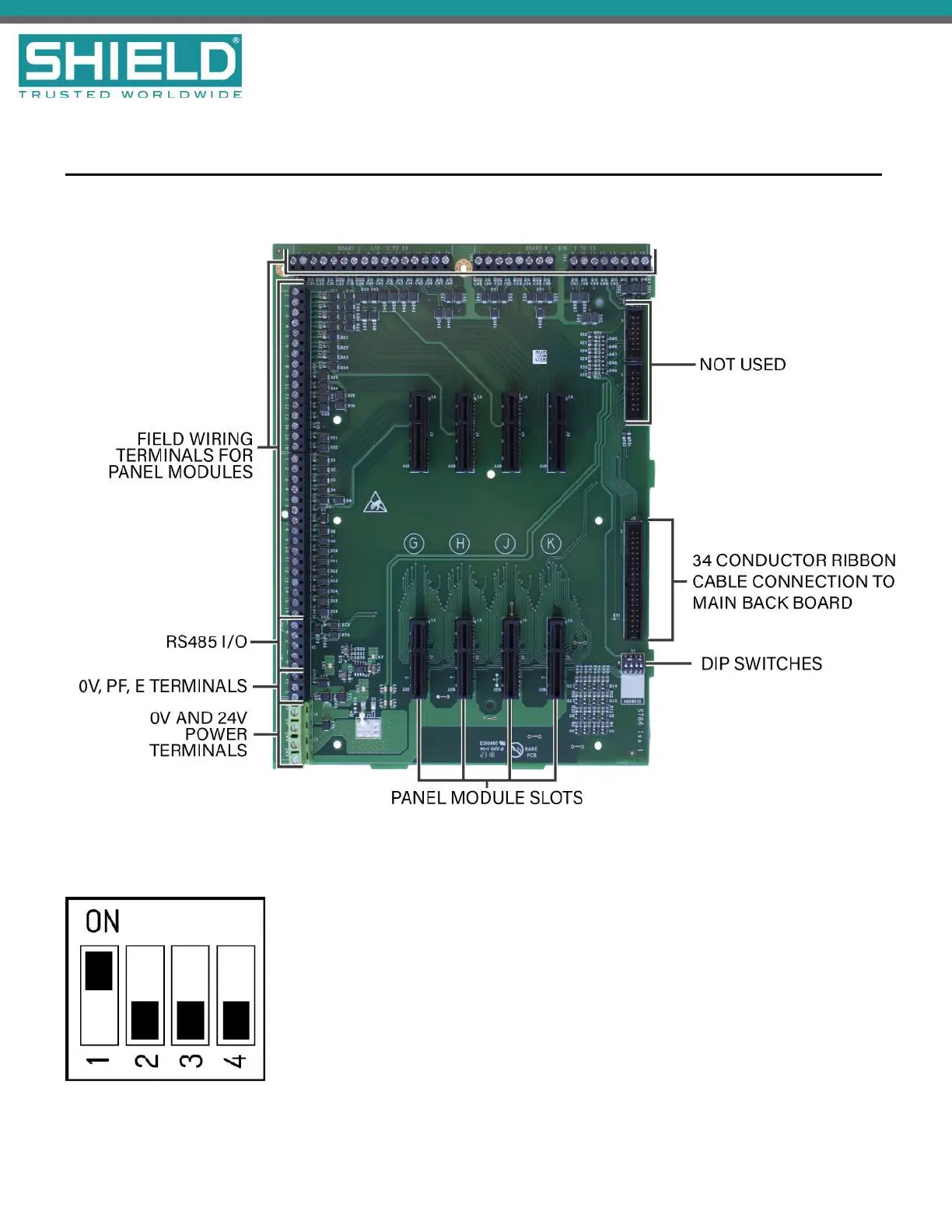

The following figure illustrates the Extension Board features:
The extension board is connected to the Main Back Board through the Extension Board Power Terminals and a
34 Conductor ribbon cable. The DIPswitches should be set as shown.
