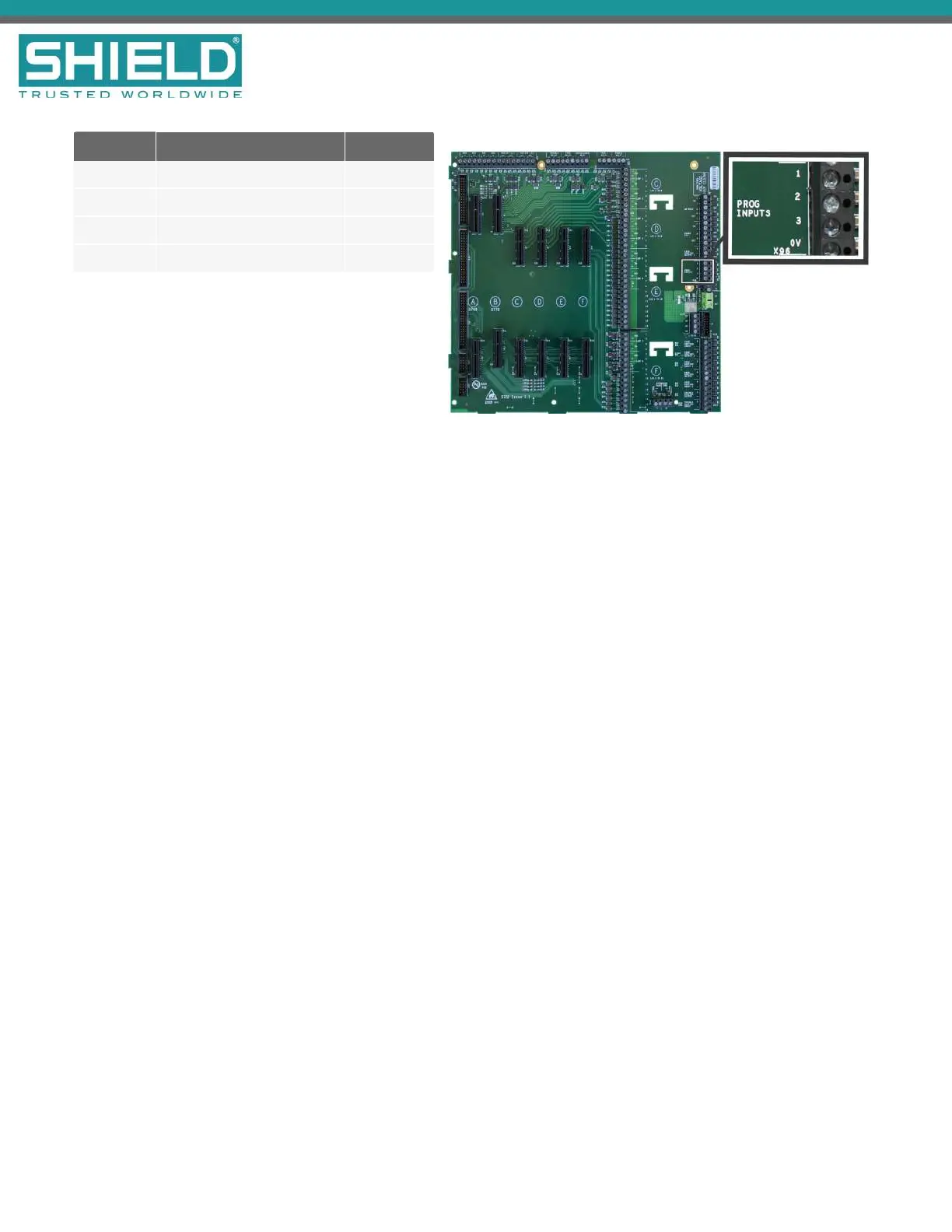

Terminal Designation Condition
1 P1 - Programmable 1 on / off
2 P2 - Programmable 2 on / off
3 P3 - Programmable 3 on / off
4 0V 0 volts
For wiring Programmable Inputs:
l The interconnected equipiment must be located in the same room as the Aura Fire Alarm ControlPanel.
l Wiring must be in conduit (or equivalently protected against mechanical injury) and connections must be
made within 20 feet.
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 42
