The Main Back Board contains connector slots A through F. Operation of the Aura Fire Alarm ControlPanel
requires that one Dual Loop Panel Module is connected in slots C, D, E, or F to meet minimum operating
requirements.
The Dual Loop Panel Module can be connected in slots C, D, E, or F of the Main Back Board. Slot C of the Main
Back Board is the factory location for the Dual Loop Panel Module connection.
SHIELD Fire, Safety & Security Ltd
Aura Fire Alarm Control Panel Installation Manual
Version 1.00 |June 2019 |MAN-1431VS
Page 70

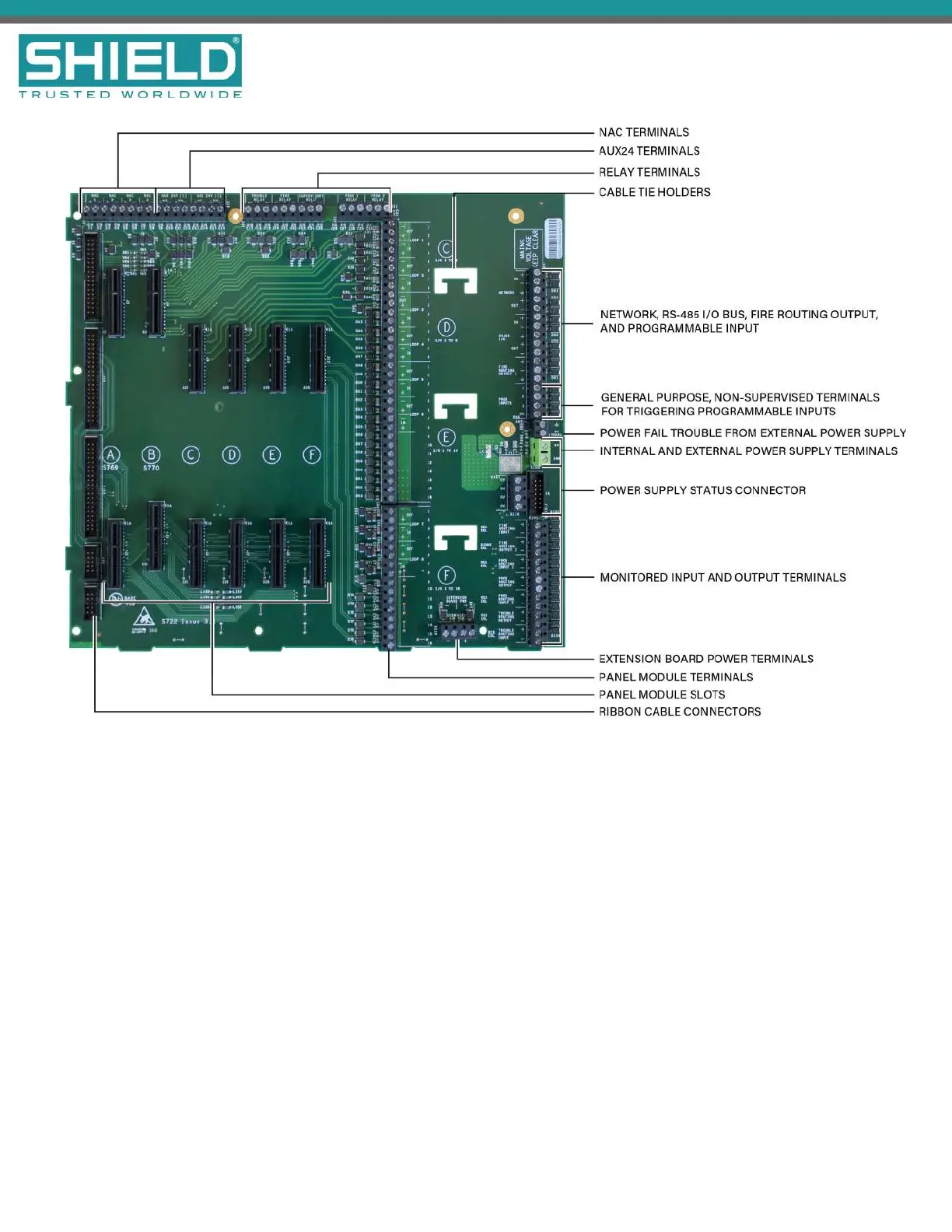

Main Back Board (AUL-9022)
