Residual Risk Information
Residual risk refers to the risks that could not be removed or reduced during the design and manufacturing stages.
Check the [Residual Risk Maps] for each area with inherent risks and implement protective measures while
referring to the [List of Residual Risks].
n

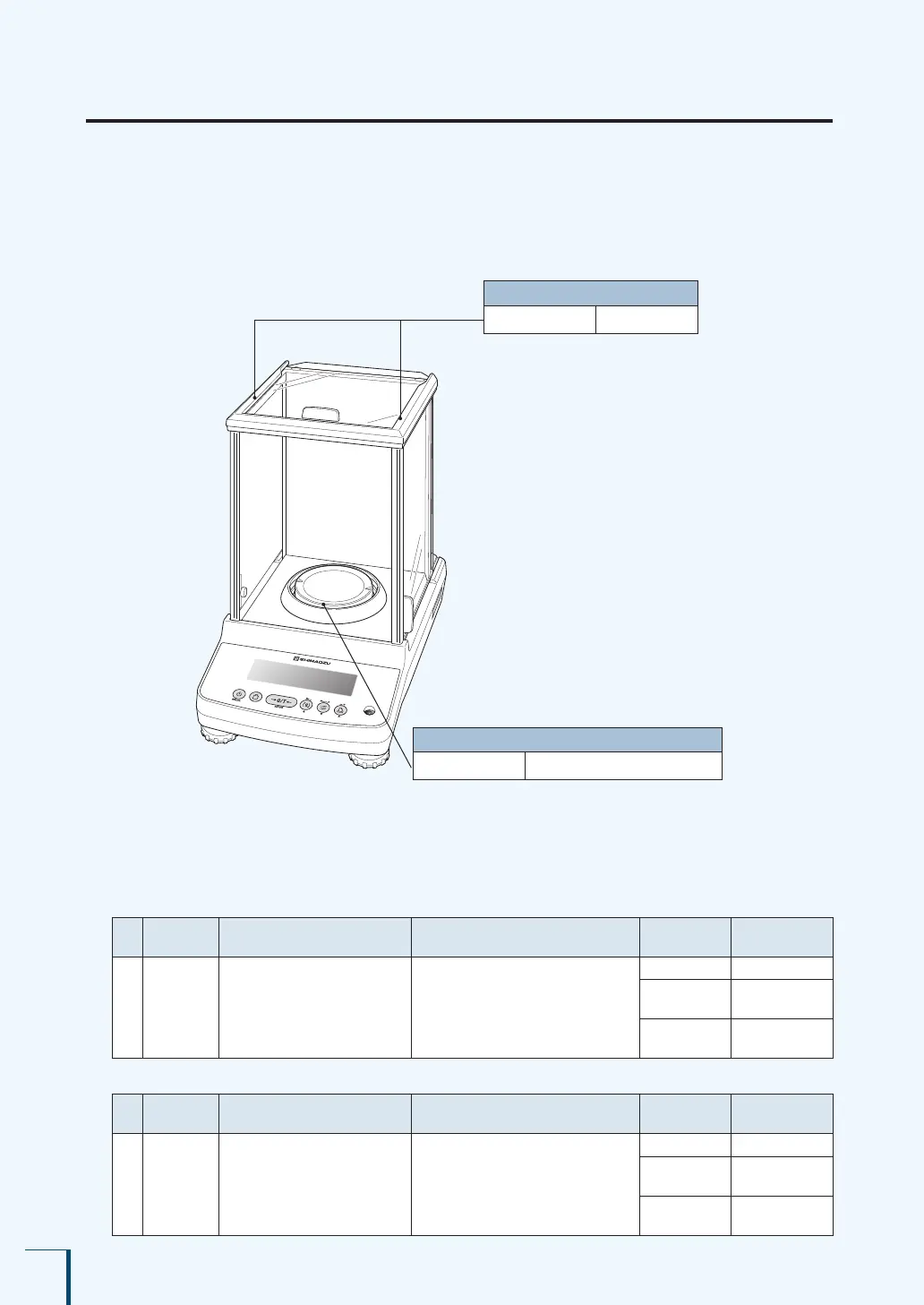

Residual Risk Maps
The [Equipment Location] and [No.] shown below match up with the [List of Residual Risks].
Refer to the [List of Residual Risks] for further details.
Location A: Balance Frame
! Caution
No.1
Location B: Pan, Pan supporter, and Pan ring
! Caution
No.2
n
List of Residual Risks
The [No.] and [Equipment Location] shown below match up with the [Residual Risk Maps].
Check the [Residual List Maps] for further retains on the relevant [Equipment Location].
Read and fully comprehend the details listed in [Refer To] and implement protective measures without fail.
Measurement Preparations
No.
Equipment
Location
Risk
Protective Measures Implemented by
Users
― ―
1 A
! Caution
The frame and front glass may
become detached when the top
frame is picked up and moved.
When moving the balance, do not hold
it by the top frame, but grip the bottom
ofthemainunitrmlywithbothhands
to pick it up.
Refer To P. 27
Task Moving the
Balance
Qualications
& Training
Recipients of
Work Training
Maintenance
No.
Equipment
Location
Risk
Protective Measures Implemented by
Users
― ―
2 B
! Caution
Transporting the unit with the
pan, pan supporter and pan ring
installed may result in damage
to the draft shield glass.
Remove the pan, pan supporter and
pan ring without fail when transporting
the balance during repairs.
Refer To P.132
Task Transporting
during repairs
Qualications
& Training
Recipients of
Work Training
