2 Starting GC/MS
4 GCMS-QP2010 Series Operation Guide
4
Double-click the (GCMS Real Time Analysis) icon.
The [GCMS Real Time Analysis] program starts.
5
Click [OK].

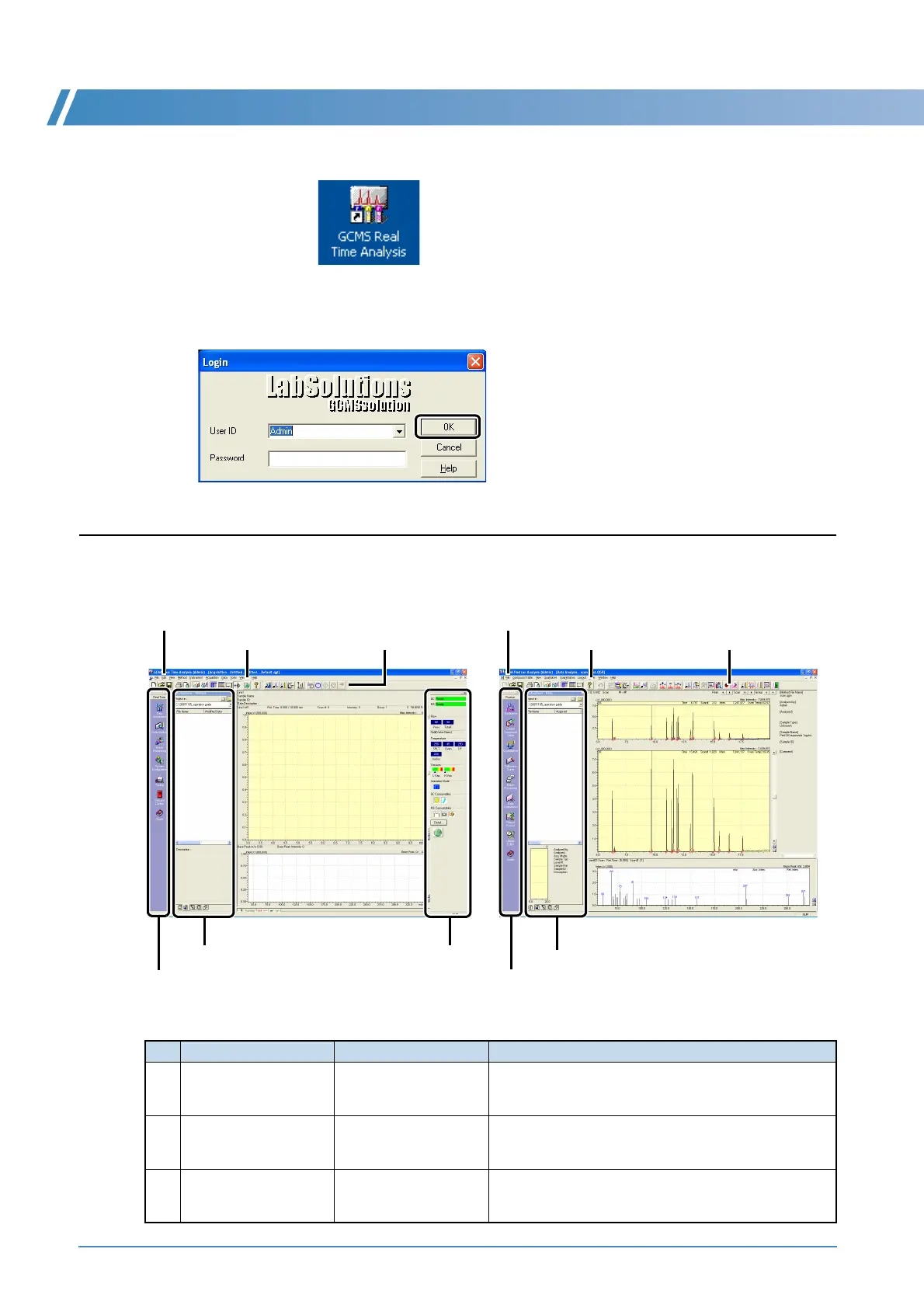

2.2 Layout of Operating Areas
No. Name GCMS Program Explanation
1
Title Bar Real Time Analysis,
Analysis Editor, Postrun
Analysis, and Browser
Displays the name of the program, process, and file
currently running or being processed.
2
Menu Bar Real Time Analysis,
Analysis Editor, Postrun
Analysis, and Browser
Displays command menus corresponding to the window
currently open.
3
Toolbar Real Time Analysis,
Analysis Editor, Postrun
Analysis, and Browser
Displays command tool buttons corresponding to the
window currently open.
1
4
2 3
6
5
1
2 3
Title Bar
Menu Bar Toolbar
Assistant Bar
Data Explorer
Instrument
Monitor
4
6
Assistant Bar
Data Explorer
Title Bar
Menu Bar
Toolbar
GCMS Real Time Analysis GCMS Postrun Analysis
