Shimadzu GCMS-QP2010 Series User Manual

Name: Shimadzu GCMS-QP2010 Series
Brand: Shimadzu
Rating: 5 (1 reviews)

132 pages

To Next Page

To Previous Page

76 GCMS-QP2010 Series Operation Guide

Shutting Down GC/MS

6.1

Vacuum System Shutdown

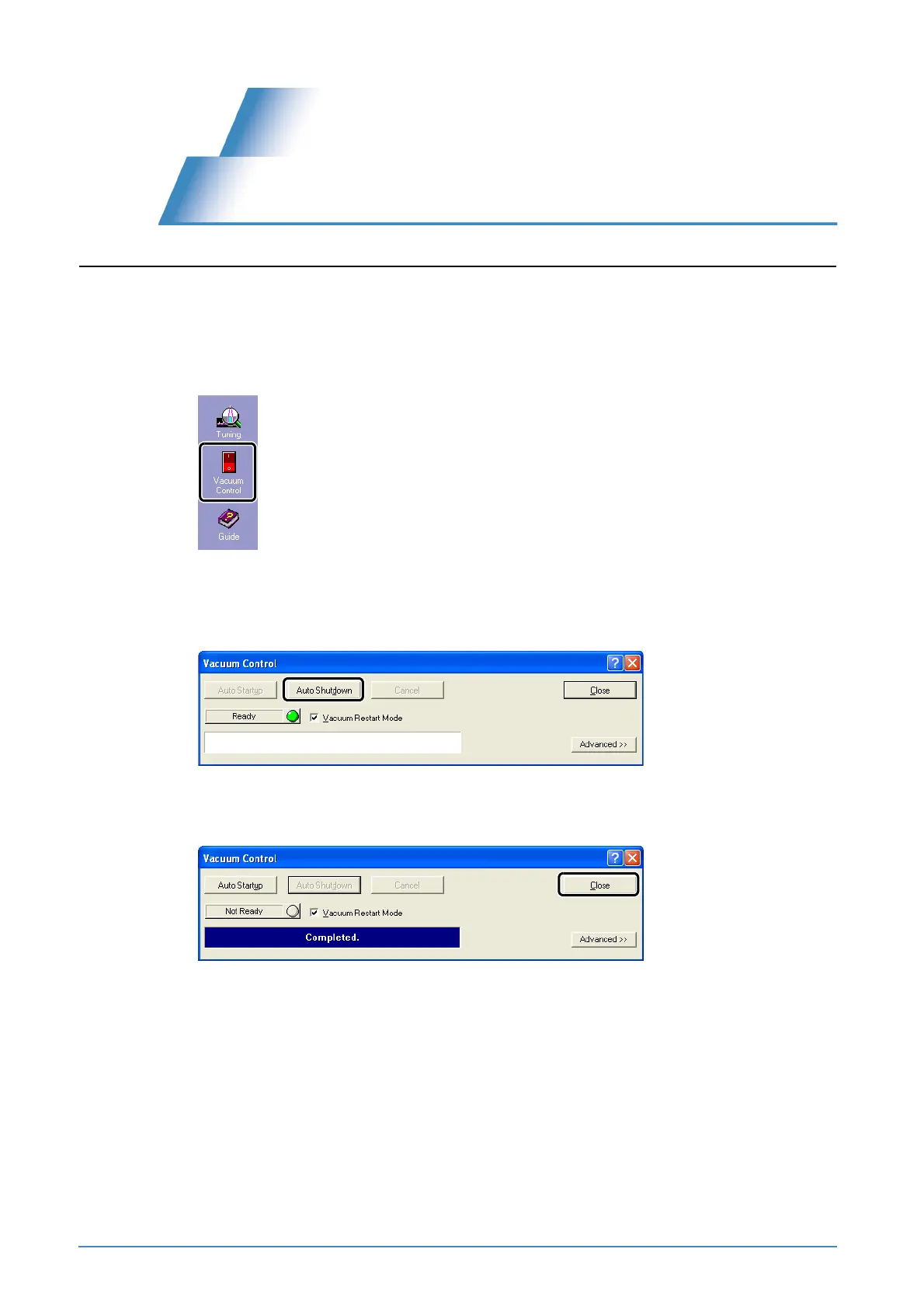

Click the [Vacuum Control] icon on the [Real Time] assistant bar.

The [Vacuum Control] window opens.

Click [Auto Shutdown].

The vacuum system shuts down.

When [Completed] is displayed, click [Close].
