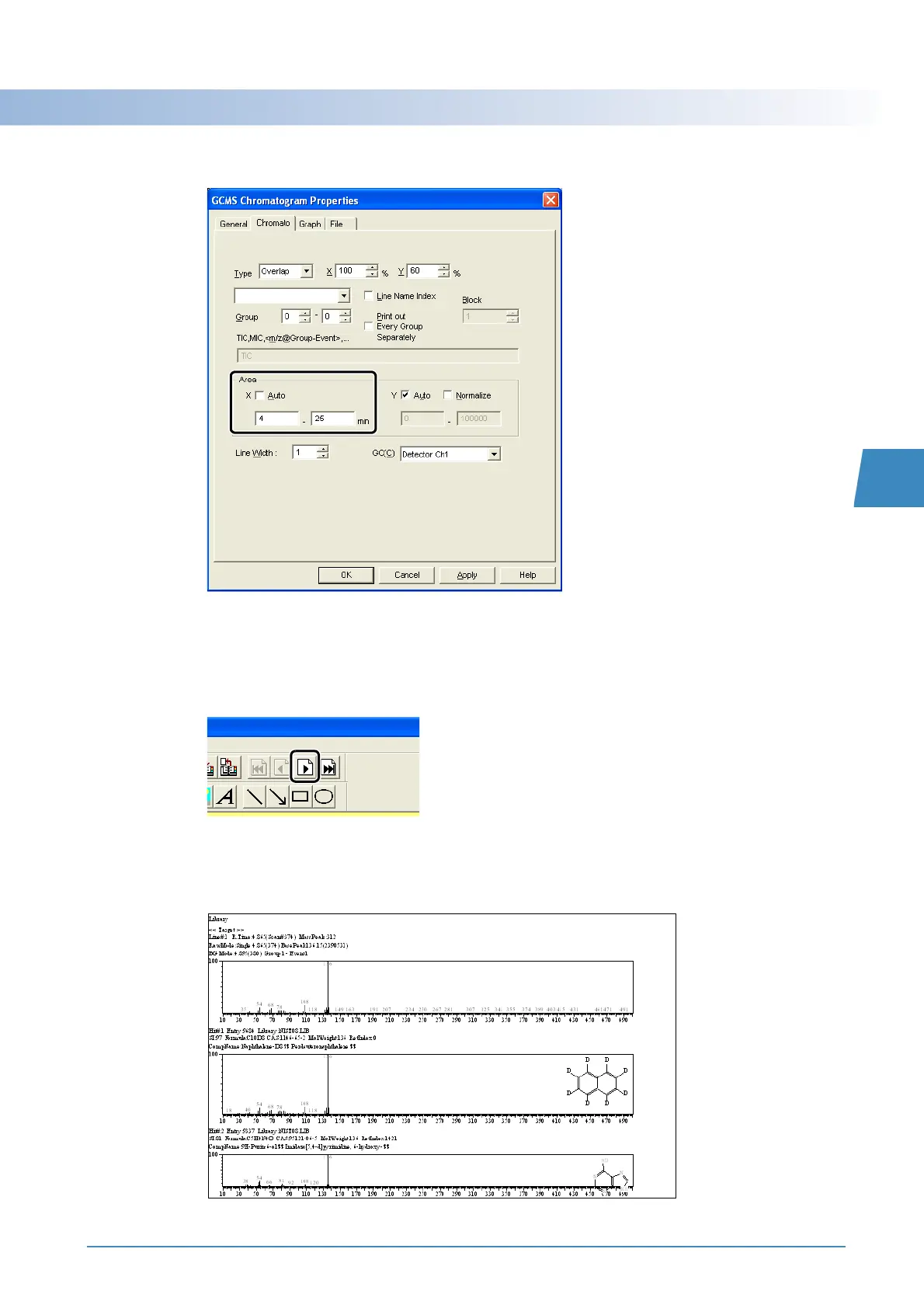

GCMS-QP2010 Series Operation Guide 45

4.5 Printing Qualitative Analysis Reports

In the [Area] area, deselect [Auto] for the X-axis and enter the time range.

Click [OK].

Click the next page icon on the toolbar to display the second page.

Double-click on the [Library] display item.

The [GCMS Library Properties] window opens.

Table of Contents11
