MAINTENANCE

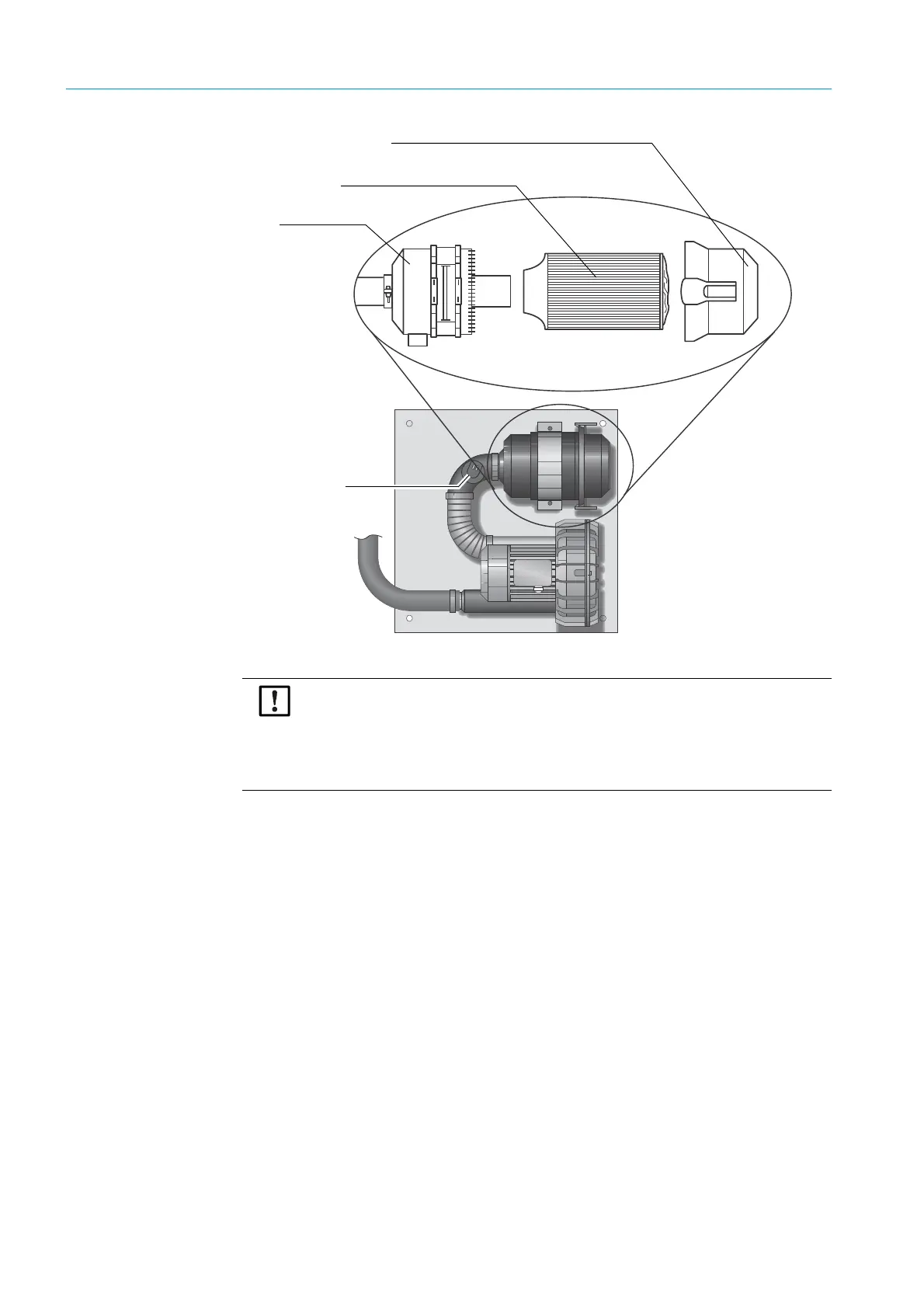

Fig. 63: Replacing the purge air filter element
1 Have a new filter element available.
2 Remove the filter housing cover by releasing the two snap locks on the side.
3 Pull the filter element, turn counterclockwise, out of the filter housing.
4 Clean the inside of the filter housing using a cloth and brush. Use only water and no
detergents at all because detergent deposits can falsify measurement results later.
>>>
If it is still uncertain whether the filter element is to be replaced:
▸ Check the filter element for deposits, without creating any dust clouds.
▸ If the filter element is not contaminated significantly, it can be reinstalled instead of a
new filter.
5 To install the new (or previous, uncontaminated) filter element, secure it to the spindle in
the filter housing by turning/pressing it counterclockwise.
6 Fit the filter housing cover and align it with the filter housing so that the two snap locks
on the side click into position.
Filter element
Filter housing
Filter housing cover
Low-pressure
monitor
NOTICE: Correct handling during filter maintenance
– Avoid creating dust clouds to prevent any contamination penetrating the
measuring system.
– Do not use any detergents because deposits will falsify measurement
results. Use clean cloths, that can be moistened with water only, when
necessary.
