HANDLING THE EVALUATION UNIT

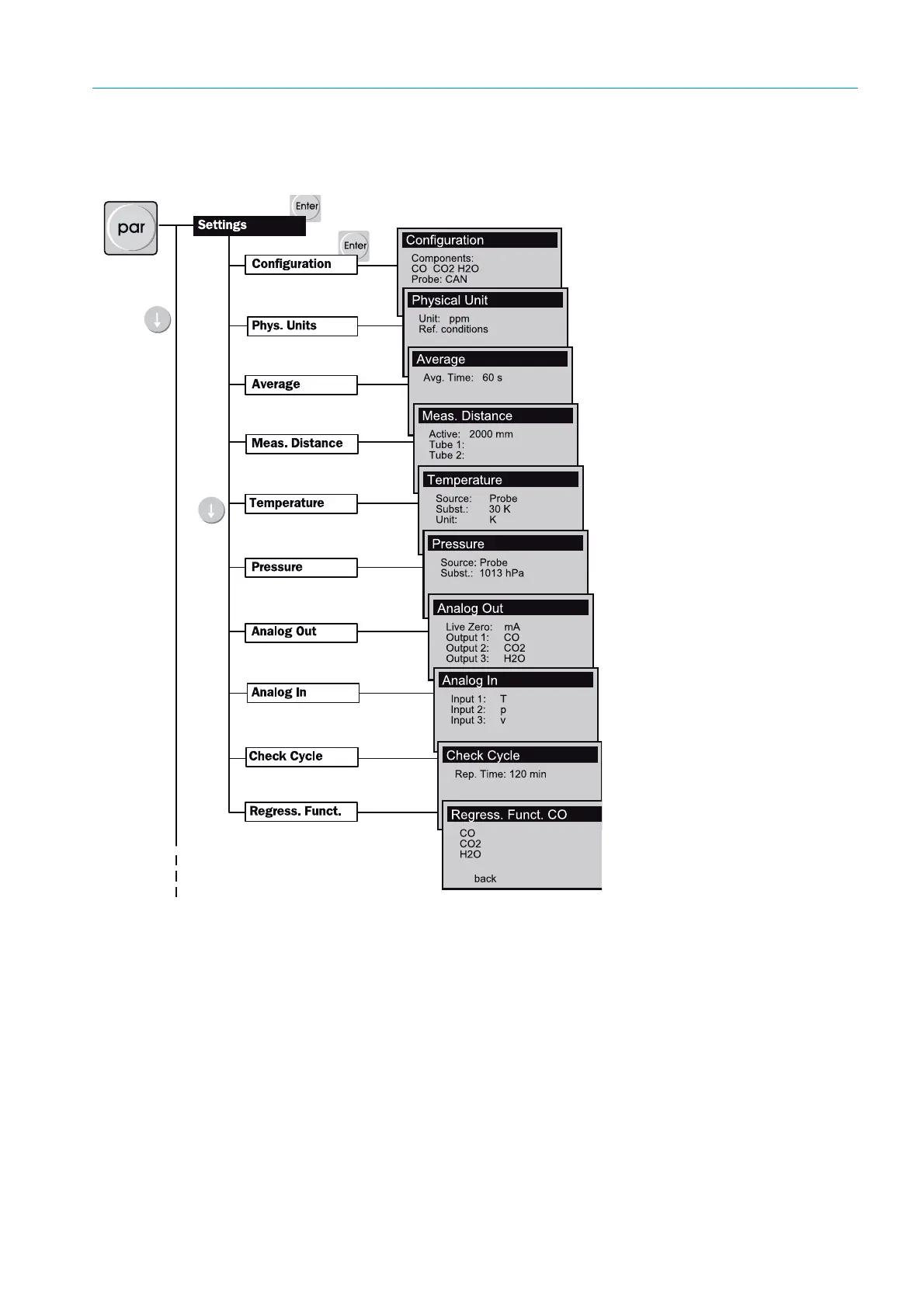

5.2.3.4 Menu structure Configuration
Table 6: Menu Configuration/Settings
Parametrization
Configuration:
Measuring components:
● CO or N2O, CO2, H2O
● CAN connection (probe or cross-
duct)
Physical Unit:
Unit and reference value settings for
individual gases
Average:
Averaging time settings for the system
Meas.Distance:
Averaging time settings for the system
Temperature:
Temperature setting: Source (probe/
replacement/AI1) and unit (K, °C,
°F)
Pressure:
Pressure setting: Source (probe/
replacement/AI2)
Analog Out:
Analog output settings: Live-zero,
comp. (CO
or N
2
O, CO
2
, H
2
O, O
2
, T,
p - -) display range, cycle output
Analog In:
Analog input settings: e.g., AI1 unit (K,
°C, °F), live-zero (0, 2, 4 mA, read-
in range)
Check Cycle:
Check cycle interval setting:
0…1440 min
Regress. Funct. CO:
Regression function comp.:
CO2/H2O
Span: 0.50…1.99,
Zero: 0…±9999.9
←
