SICK GM35 User Manual

133
8009389/YN39/V3-0/2015-08| SICK OPERATING INSTRUCTIONS|GM35
Subject to change without notice
TECHNICAL DATA, CONSUMABLES AND SPARE PARTS
11.2.2 Open measuring probe - GMP, dimensions

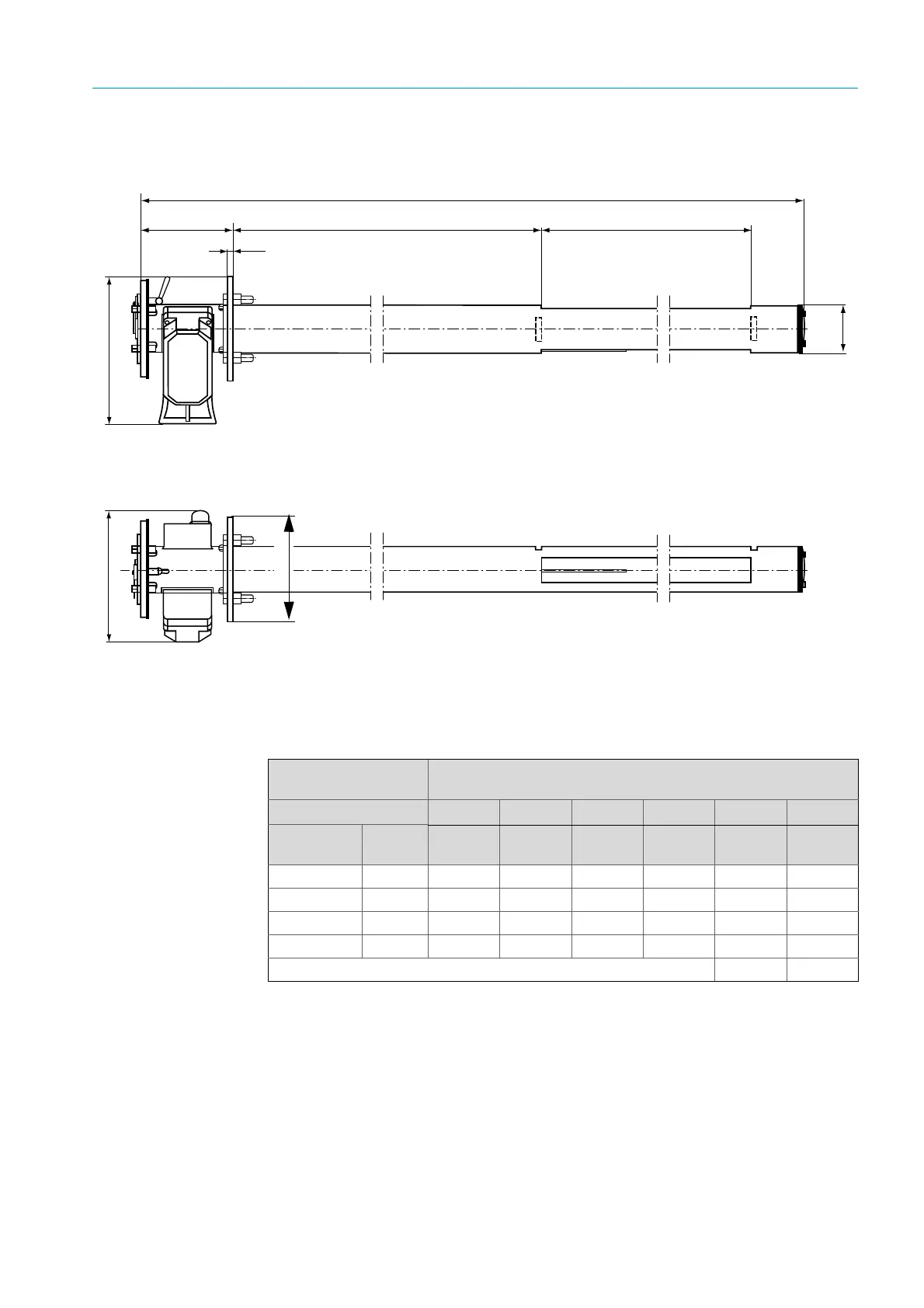

Fig. 71: GMP measuring probe dimensions
GMP measuring probes Dimensions Table
114.3
360320.9
L3L2
L1
227
10
∅ 254
GMP measuring
probes
Measuring gap (active measuring distance)
250 500 750 1000 1250 1750
Nominal
probe length
L1 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm]
0.9 m93529646––––
1.5 m 1644 1004.5 754.5 504.5 254.5 – –
2 m 2128 1489 1239 989 739 489 –
2.5 m 2628 1988 1738 1488 1238 988 488
Application-specific lengths on request
