8009389/YN39/V3-0/2015-08| SICKOPERATING INSTRUCTIONS|GM35
Subject to change without notice
INSTALLATION
4.3.2 Installing the evaluation unit – cast enclosure version
1 Make ∅7.2 mm (for M8) mounting holes at the installation location according to the
Drilling plan.

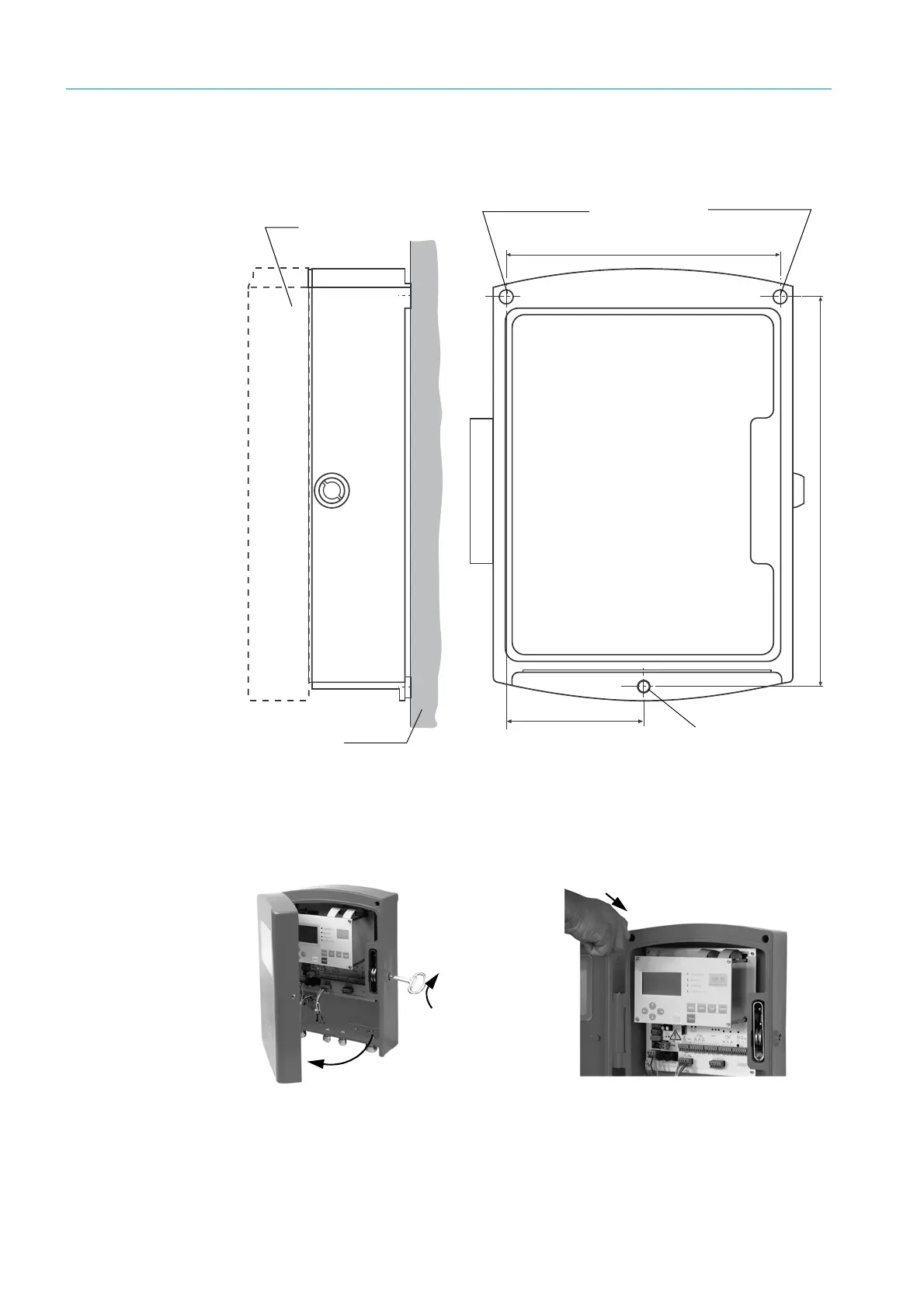

Fig. 15: Mounting holes layout (Drilling plan) to fit the EvU (cast enclosure)
2 Open the enclosure door with a control cabinet key and swivel open.
3 Attach the evaluation unit at the installation location using the 3 planned mounting
holes with suitable screws (M8 x 20).
Fig. 16: Fitting the evaluation unit (cast enclosure)
4 Close and lock the door again.
117.5
330
235
Swivel door
Mounting holes
∅ 7mm
Mounting surface
The mounting holes
are accessible
when the swivel door is
open.
Mounting holes
∅ 7mm
1.
2.
