47
8009389/YN39/V3-0/2015-08| SICK OPERATING INSTRUCTIONS|GM35
Subject to change without notice
HANDLING THE EVALUATION UNIT
5 Handling the Evaluation Unit
5.1 User qualifications
This Section describes how to operate the GM35 measuring system with the evaluation
unit (EvU). The evaluation unit is available with either a sheet metal enclosure (protection
class IP 65) or a cast enclosure (protection class IP 67). The work described in this Section
can be carried out by qualified customer operating personnel. Setting parameters does
however demand comprehensive knowledge of the measuring system, measuring
technology and specific measuring task.
5.2 Operating elements
The evaluation unit of the analysis system serves to display, enter and set parameters and
control functions on the system. The operator panel with the display, status indicators and
key pad is accessible when the enclosure door is opened.

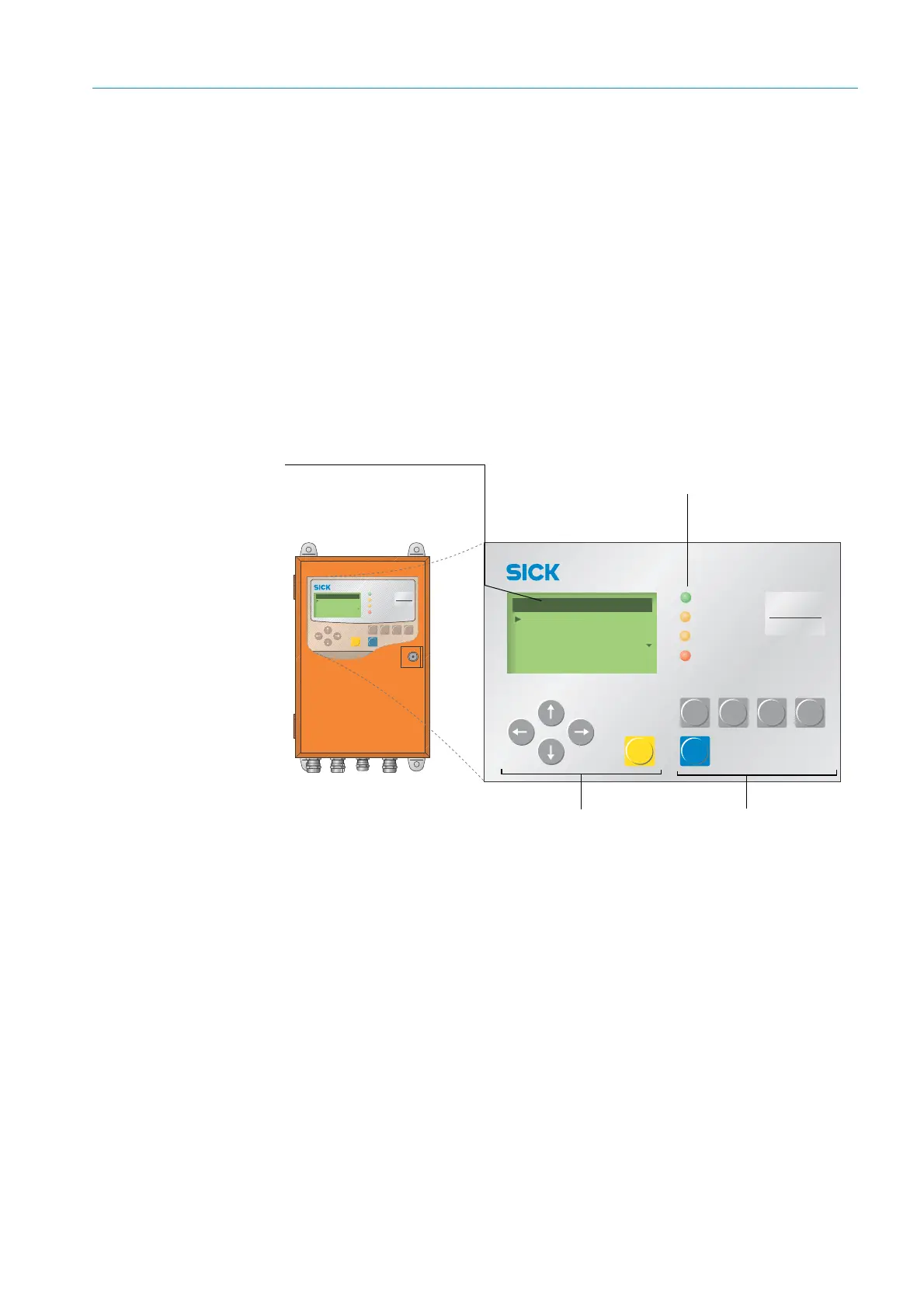

Fig. 22: Display and operating elements on the evaluation unit
GM 35
Evaluation Unit
CO
CO
2
H
2
O
mg/
m
3
236
Ref. conditions
Hum: wet
Operation
Service
Warning
Malfunction
GM 35
Evaluation Unit
CO
CO
2
H
2
O
mg/
m
3
236
Ref. conditions
Hum: wet
Enter meas
diag par cal maint
Measuring
Operation
Service
Warning
Malfunction
GM 35
Evaluation Unit
CO
CO
2
H
2
O
mg/
m
3
236
Ref. conditions
Hum: wet
Enter meas
diag par cal maint
Measuring
Measuring
Enter meas
maintcalpardiag
Operation
Service
Warning
Malfunction
Graphic display for measured value
display and navigation
Key pad for navigation and
entering data
Key pad for menu selection
Arrow buttons
Navigate, select, scroll or edit menu items, variables, units or
digits.
Enter Executes the selected menu contents or commands.
Display in
Measuring
mode
Displays all current measured values (temperature values or CO
concentration);
Displays all calculated values, e.g. CO
2
dry.
LEDs
Operation
Service
Warning
Malfunction
Measuring
Service mode
Warning messages, see Diagnosis mode (diag)
Device malfunction, error message, see Diagnosis mode (diag)
