SICK GM35 User Manual

134
8009389/YN39/V3-0/2015-08| SICKOPERATING INSTRUCTIONS|GM35
Subject to change without notice
TECHNICAL DATA, CONSUMABLES AND SPARE PARTS
11.2.3 GPP measuring probes dimensions

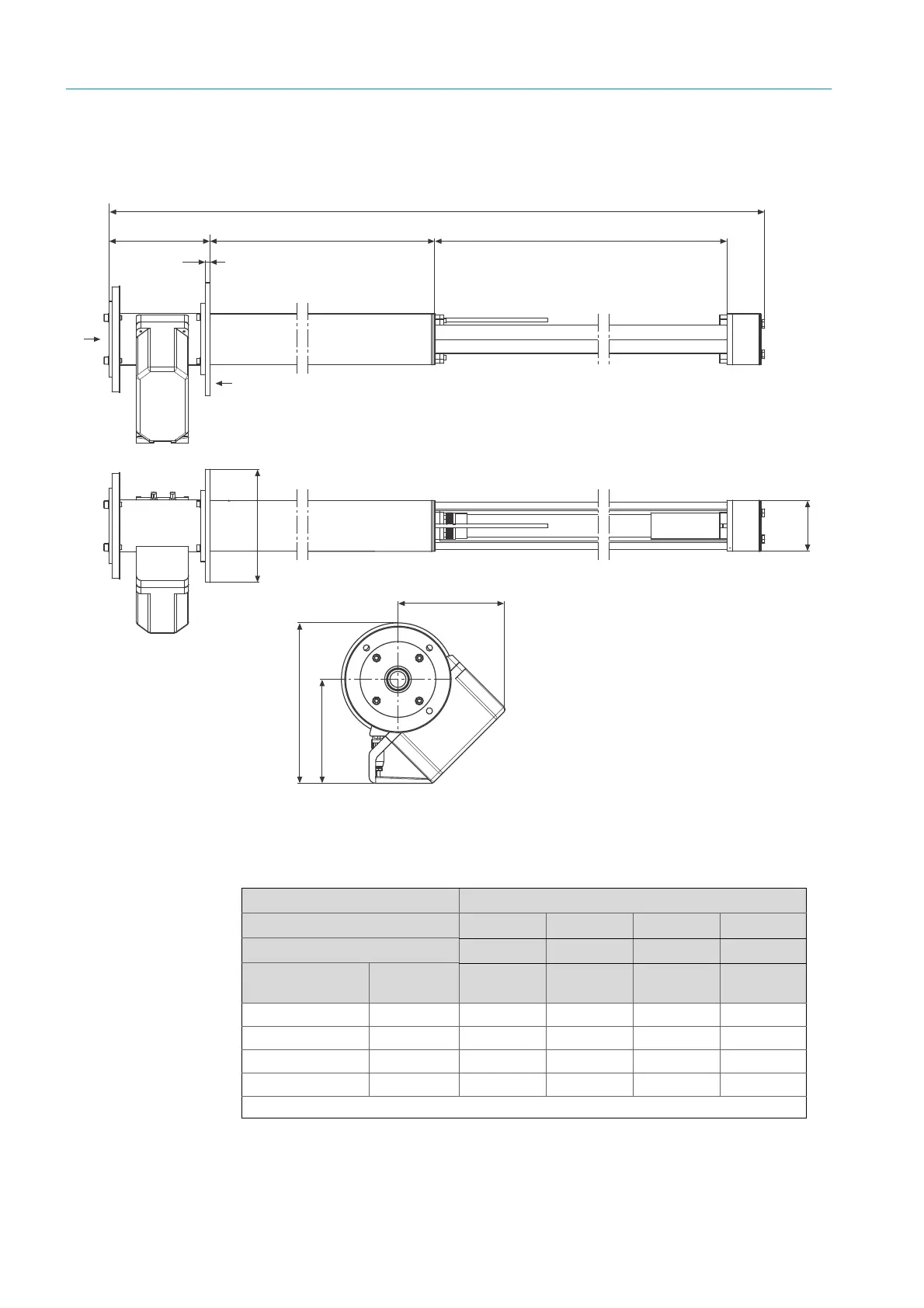

Fig. 72: GPP measuring probes dimensions
GPP measuring probes Dimensions Table
227 L2 L3
L1
10
Ø 254
238
233
360
Ø 114,3
A
R
R
A → see page 132
GPP measuring probes Measuring gap L3 (active measuring path) [mm]
250 500 750 1000
227 477 727 977
Nominal probe
length
L1 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm]
1,0 m 904 353 103 – –
1.5 m 1614 1063 813 563 313
2.0 m 2098 1547 1297 1047 797
2.5 m 2598 2047 1797 1547 1297
Application-specific lengths on request
