8009389/YN39/V3-0/2015-08| SICKOPERATING INSTRUCTIONS|GM35
Subject to change without notice
MAINTENANCE
Measurement can start as soon as the display shows the extinction values for H
2
O and
CO
2
.
7 Select the different positions of the push rod sequentially and swivel the appropriate
filter in
8 When the measured value has stabilized again, read off and note the value.

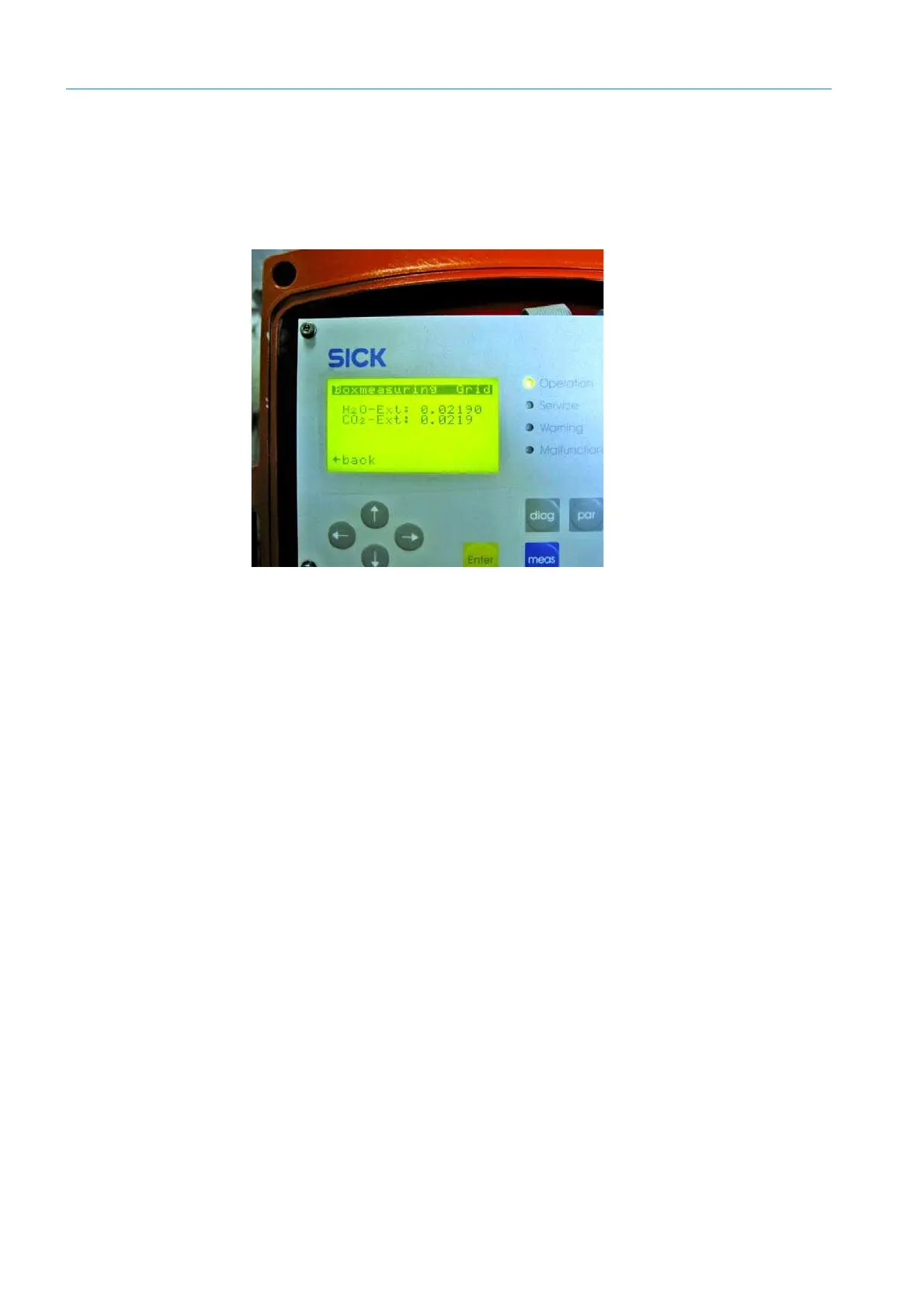

Fig. 68: Measured value display on the EvU
9.8.3 Restart Measuring mode
On the EvU: 1 Exit operating mode “Box measuring” by pressing back.
2 Disassemble the filter box with plate and reflector from the SR-unit and store safely
3 Refit the SR-unit back onto the measuring point in the correct position.
