SICK GM35 User Manual

142
8009389/YN39/V3-0/2015-08| SICKOPERATING INSTRUCTIONS|GM35
Subject to change without notice
TECHNICAL DATA, CONSUMABLES AND SPARE PARTS

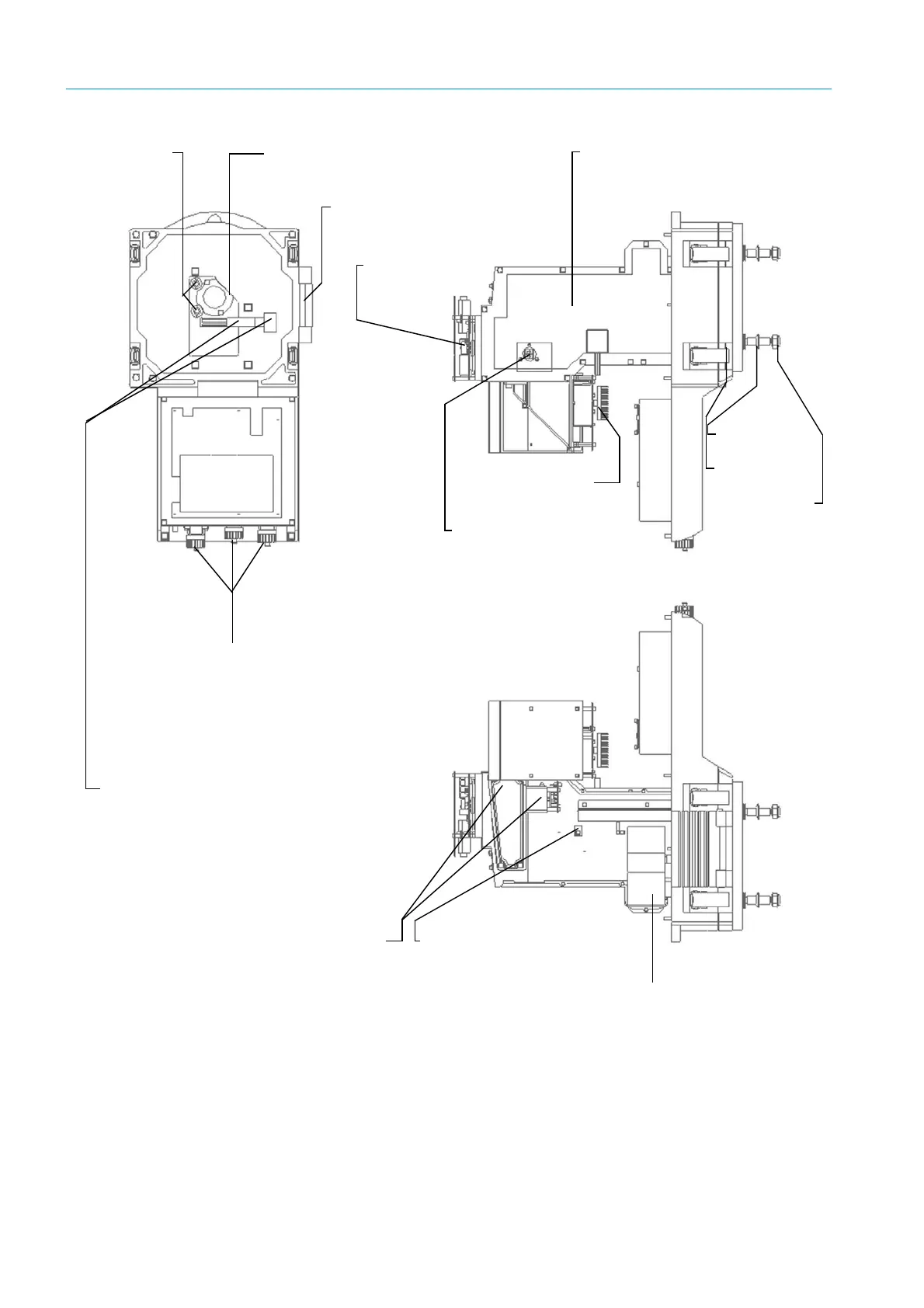

Fig. 81: Spare parts assignment for GM35 SR-unit
Hinge pin
2 017 329
Plug, mains connection,
2 023 527
CAN connection, SR-unit, plug, 22 058 773
CAN connection, SR-unit, socket, 2 058 671
Frame for front window
2 023 516
Compensation
element
2 029 931
Sensor, ambient humidity, hygroclip
connection, 2 058 773
Plug, wired for hygroclip connection,
2 058 671
Cover, SR-unit with visor and
heating, 2.017 339
Measuring module H
2
0/
CO
2
, 2 060 801
VIS visor module, 2 030 345
Module, IR source
and chopper,
2 023 540
Cup springs,
5 700 484
Spherical washer,
5 700 494
Nut, self-locking,
5 700 472
Measuring module CO: 2 060 797
Measuring module N
2
O: 2 061 616
Power supply
module, 2 030 344
Pivoted segment, zero point reflector, 2 017 325
Motor with electronic board, NPR, 2 023 515
N
2
O: pivoted segment, control filter: 2 064 480
CO: Pivoted segment, control filter, 2 023 518
Motor with electronic board, check filter set,
2 023 448
Temperature sensor, heating control,
2 023 799, 2 030 289
