SICK Lector61x User Manual

Lector611
V2D611R-MSWXB6S01
Exchange
Product ID
pid.sick.com/
XXXXXXX/
XXXX XXXX
Made in Malaysia
DE-79183 Waldkirch
September 2019
DC 12-24V±15%
Imax=1,5A
P/N
S/N
9
3
4
5
8
2
1
6
7
1
XXXXXXX
XXXX XXXX
V2D61XX
MAC
-
X X X XX X
00:00:00:00:00:00
Pre-configured
Lector
25

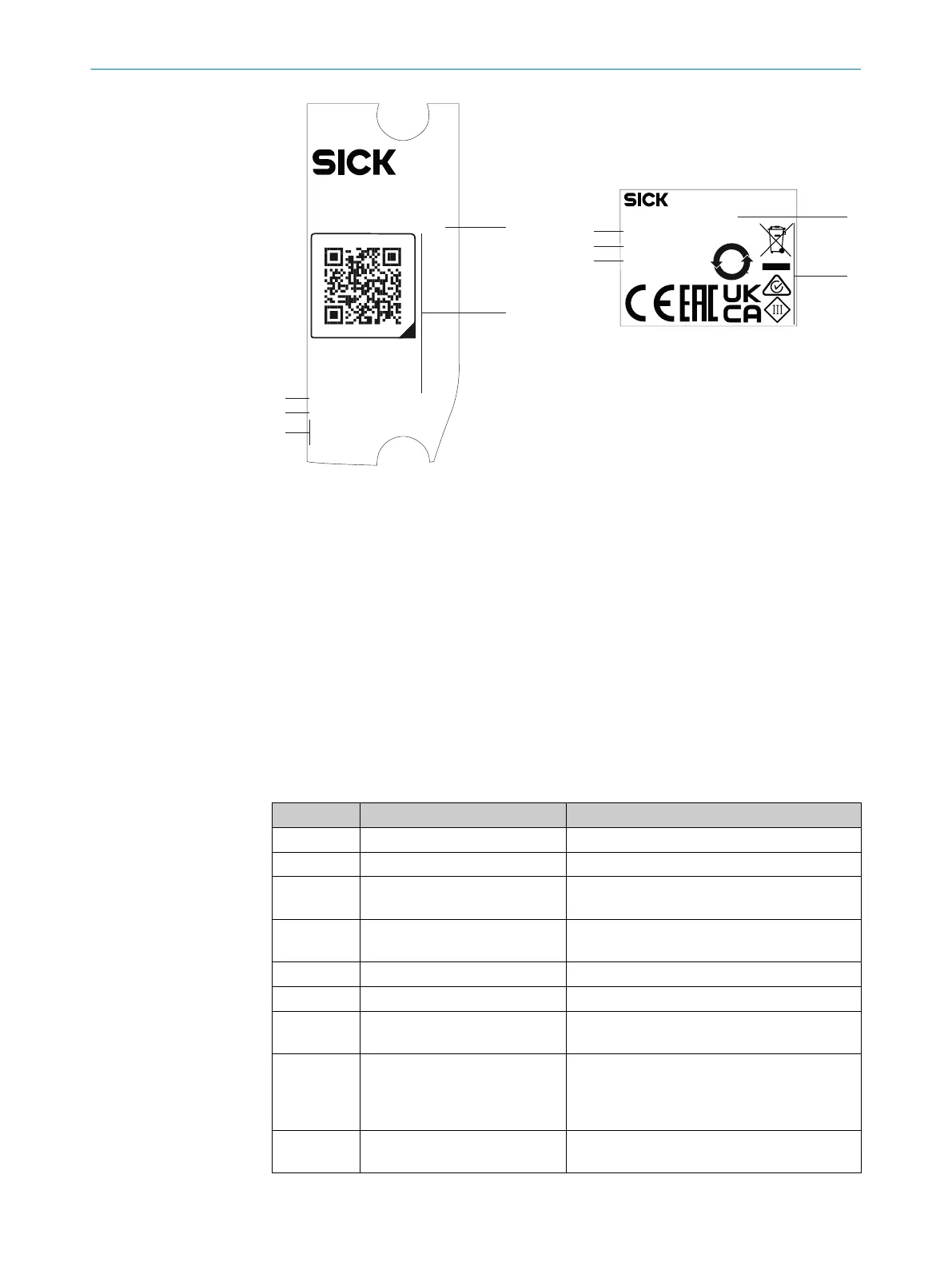

Figure 1: Lector61x type label (example)
1
Type designation according to type code
2
Product ID
3
Supply voltage and maximum power consumption
4
Date of manufacture
5
Production location
6
MAC address (placeholder)
7
Part number (placeholder)
8
Serial number (placeholder)
9
Conformity mark and certification mark
3.2.2 Type code
Type code structure
V2D a b c d – e f g h i j k
Placeholder Description Characteristic
a Product family 6: V2D6xx
b Platform, housing 1: Standard line
c Resolution of the image sensor 0: 0.3Mpx (640px x 480px)
1: 1.2Mpx
d Function R: Read
D: Reading with DPM
e Generation "empty": 1. Generation
f Image sensor type, color M: Monochrome (black-and-white)
g Optical focus method M: Manual focus
L: Liquid lens
h Integrated illumination unit, LED
alignment aid
S: Integrated illumination unit (visible amber
light, visible blue light), LED alignment aid (visi‐
ble red light), ToF (Time of Flight, invisible infra‐
red light)
i Focal length, aperture B: 6mm
C: 12mm
3 PRODUCT DESCRIPTION
12
O P E R A T I N G I N S T R U C T I O N S | Lector61x 8024830/1MBT/2024-05-22 | SICK
Subject to change without notice
