Example: To switch to the Focus mode while the Focus indication LED is lit, briefly
press the function button (p) once.
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result

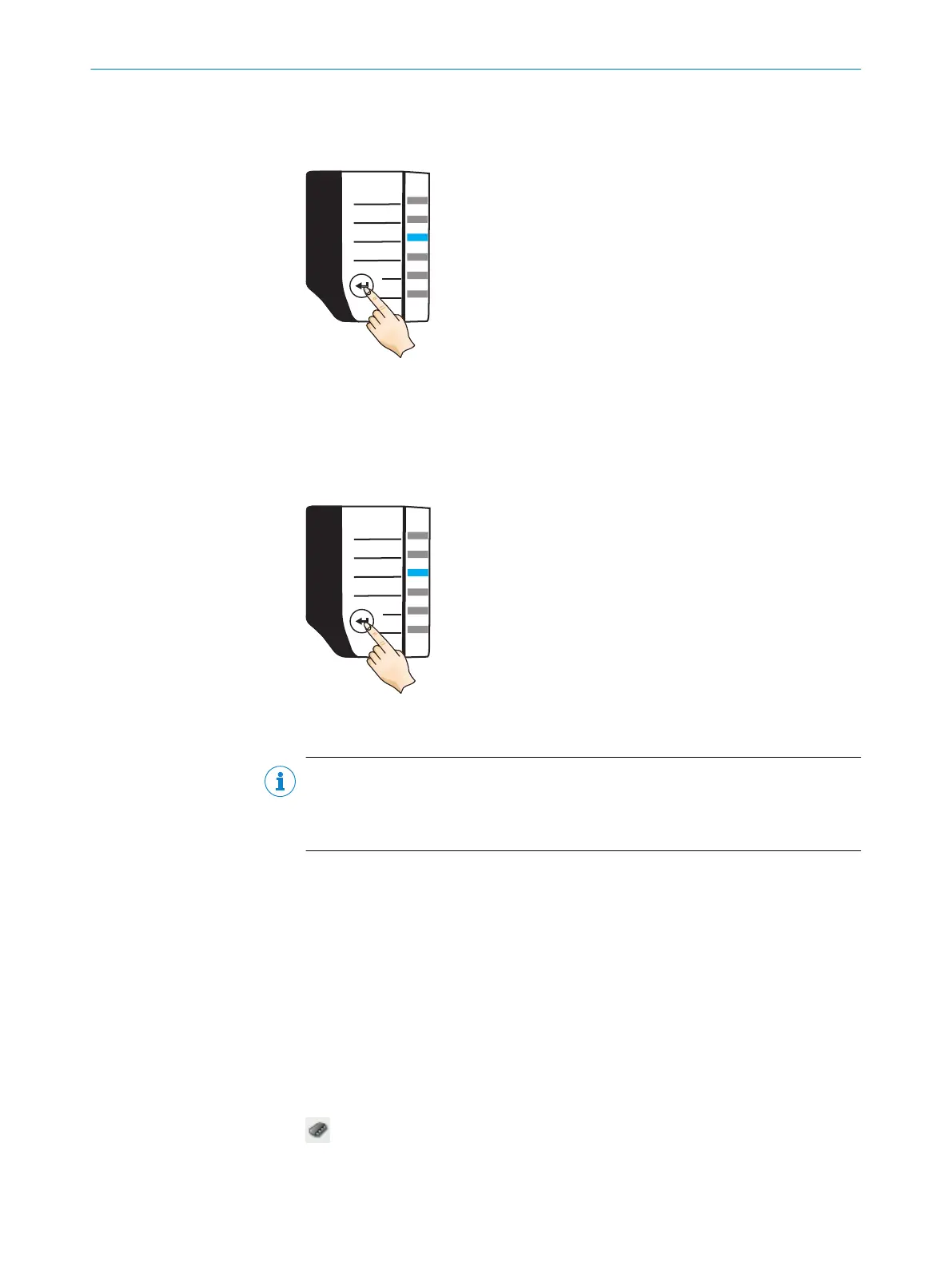

Press function key 1 x shortly 1
1 Briefly press the function button (P) once
✓
The product executes the respective function. Without having to press the push‐
button, the product automatically switches to read mode after 60seconds.
3.
To manually end (cancel) a function, press the function button (P) again and hold
for 3seconds.
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result
Press function key 3 seconds 1
1
Press the function button (p) for 3seconds
✓
The product is ready for reading and is waiting for a read cycle.
NOTE
If the user does not press the function button (p) for 3seconds, after 20seconds
of cyclically lighting the LEDs, the product automatically exits the third display level
and returns to operational use.
7.4 Saving the parameter set
Overview
The parameter values in the working memory of the product can be modified in
SOPASET. Current parameter values can then be permanently stored and therefore
transfered to the permanent parameter memory of the product.
To be able to restore the parameter set to a replacement product, for example in the
event of a product failure, you should also save the parameter set externally.
Approach
1. To save the parameters permanently in SOPASET: Parameter > Save parameters
.
✓
The product stores the parameter set internally in the permanent parameter mem‐
ory.
7 COMMISSIONING
44
O P E R A T I N G I N S T R U C T I O N S | Lector61x 8024830/1MBT/2024-05-22 | SICK
Subject to change without notice
