13 Annex
13.1 Declarations of conformity and certificates
You can download declarations of conformity and certificates via the product page.
The product page can be accessed via the SICK ProductID: pid.sick.com/{P/N}/{S/N}
{P/N} corresponds to the part number of the product, see type label.
{S/N} corresponds to the serial number of the product, see type label (if indicated).
13.2 Signal assignment of cables with open cable end at one end
13.2.1 “Power/SerialData/CAN/I/O” connection to customer-specific connection equipment or control
cabinet
Adapter cable, straight female connector, open end
Part no. 2114287 (2m), part no. 2114296 (5m), part no. 2114297 (10m), shielded,
suitable for drag chain, deep-freeze compatible, PUR, halogen-free
Ambient temperature range:
For mobile installation: –20°C to +80°C, for fixed installation: –40°C to +80°C
15
14
16
10
9
11
1
17
12
2
8
7
6
5
4
3
13
M12 x 1.0
20 ± 3
(0.79) (0.12)
14.5
(0.57)
47 (1.85)

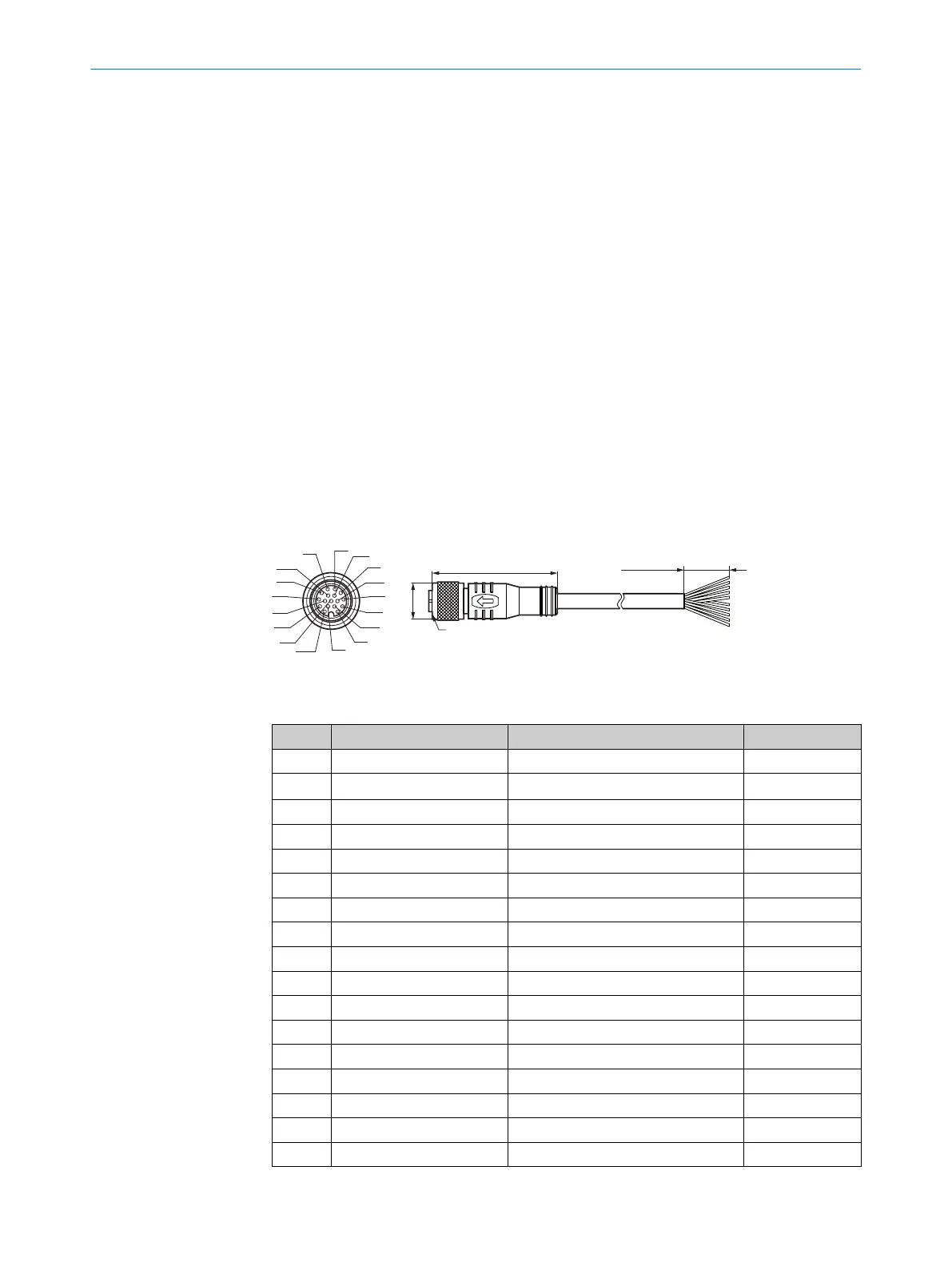

Figure 27: Adapter cable, e.g., part no. 2070425 (3m)
Table 19: Signal assignment of adapter cable with open end
PIN Signal Function Wire color
1 GND Ground Brown
2 V
S
Supply voltage Blue
3 CAN L CAN bus (IN/OUT) White
4 CAN H CAN bus (IN/OUT) Green
5 – – Pink
6 TxD (RS-232), host Host interface (sender) Yellow
7 – – Black
8 – – Gray
9 SensGND Digital input ground Red
10 Sensor 1 Digital input 1 Violet
11 – – Gray-pink
12 RxD (RS-232), host Host interface (receiver) Red-blue
13 Result 1 Digital output 1 White-green
14 Result 2 Digital output 2 Brown-green
15 Sensor 2 Digital input 2 White-yellow
16 Result 3 Digital input 3 Yellow-brown
17 N. c. – White-gray
13 ANNEX
60
O P E R A T I N G I N S T R U C T I O N S | Lector61x 8024830/1MBT/2024-05-22 | SICK
Subject to change without notice
