SICK Lector61x - Performance

V2D61xx-xLxxxx
1 2
3
3
3
3
5
6
1 2
4
20.81
(0.82)
19.47
(0.77)
40.28 (1.59)
43.8 (1.72)
29.6 (1.17)
13.9
(0.55)
25 (0.98)
50 (1.97)
40.28 (1.59)
20.81
(0.82)
19.47
(0.77)

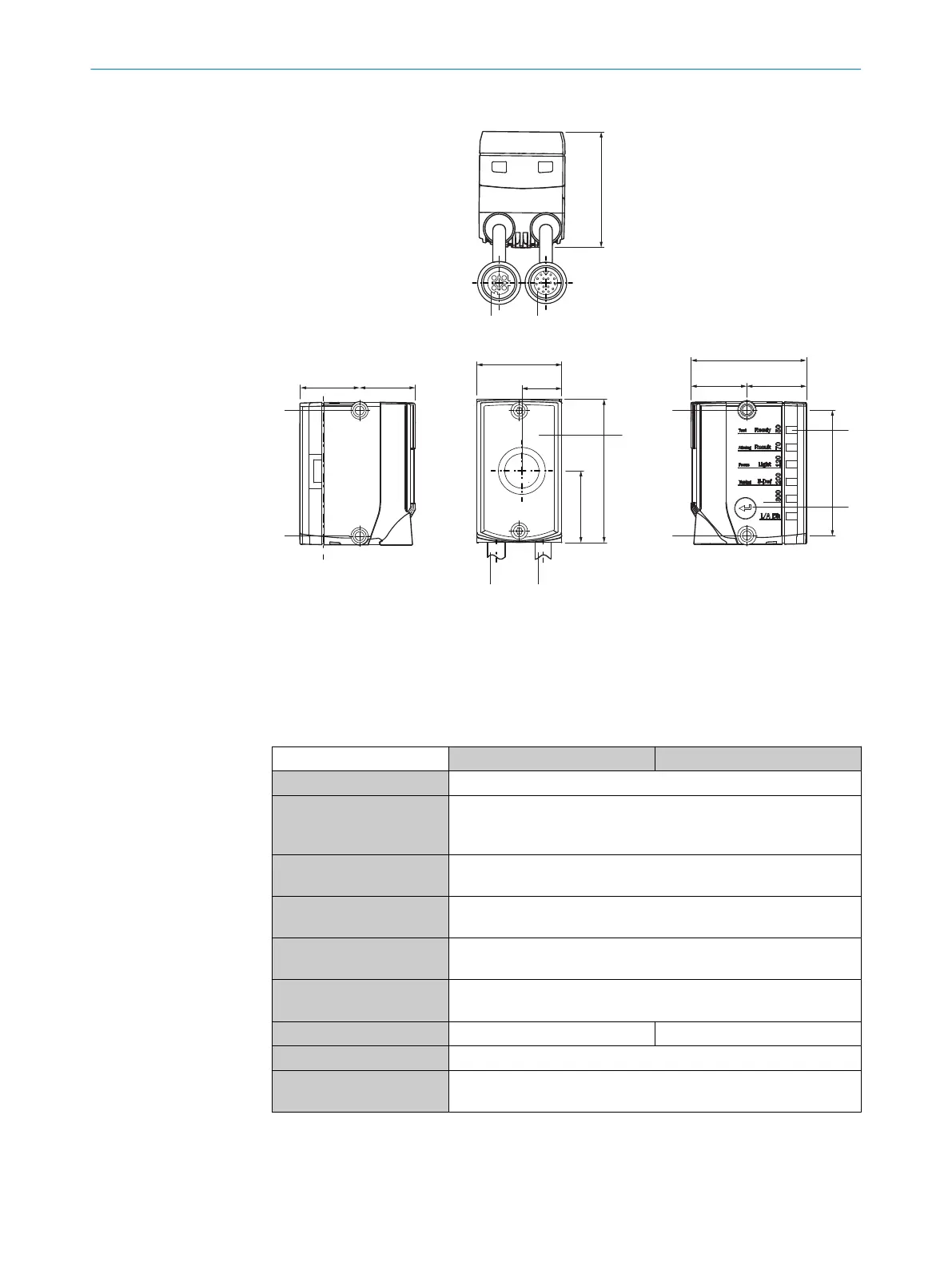

Figure 24: Structure and device dimensions, unit: mm (inch), decimal separator: period, product
type V2D61xx-xLxxxx
1
4 threaded mounting holes (M4 through hole) 6.4mm deep; maximum depth of thread
5mm
11.4 Performance
Type Lector610 Lector611
Readable code structures 1D, 2D, stacked codes, DPM
1D code types (bar code) GS1-128/EAN 128, UPC / GTIN / EAN, 2/5 interleaved, Pharma‐
code, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code
93, Plessey Code, MSI/Plessey, Telepen, postal codes
2D code types Data Matrix ECC200, GS1 Data Matrix, PDF417, PDF417 Trun‐
cated, QR code, MaxiCode
Code qualification On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416,
ISO/IEC 18004
No. of codes per reading
interval
1 ... 50 (auto-discriminating)
No. of characters per read‐
ing interval
Max. 500 (for multiplexer function in CAN network operation)
Evaluation time <200μs >60μs
Shutter time 60 μs...6,000μs
Automatic parameter
switching
Integrated
11 TECHNICAL DATA
54
