SICK Lector61x User Manual

Lector610 Lector611
Dimensions
(L x W x H)
50mm x 40.3mm x 29.6mm
3)
1)
For digital outputs without load.
2)
Prerequisites:
•
The electrical connections must be tightly screwed to the contacted female connector or male
connector.
•
The Ethernet port, if not used, must be sealed with a tightly-fastened protective cap (as in the
delivery condition).
3)
see "Dimensional drawing", page 53.

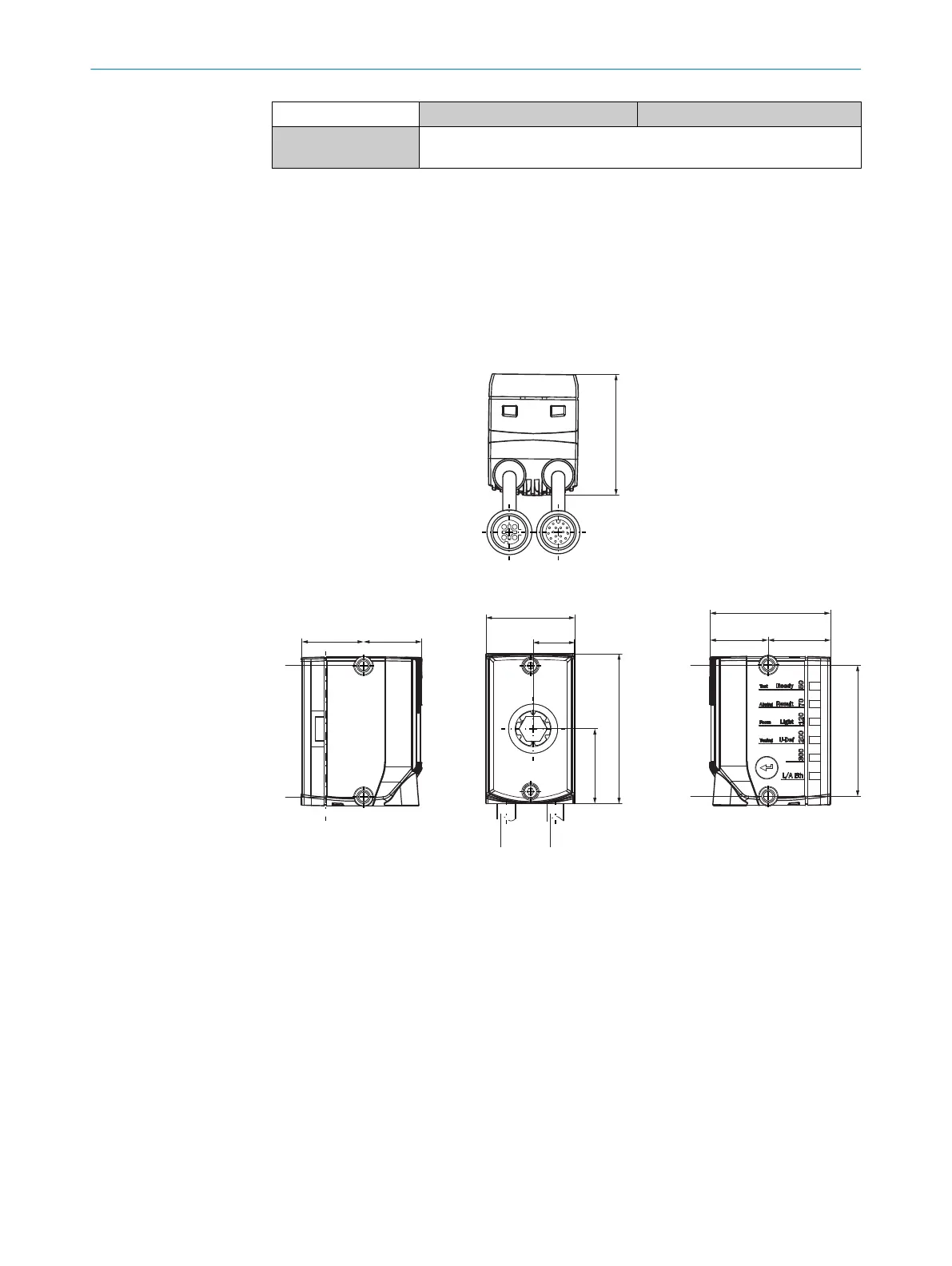

11.3 Dimensional drawing
V2D61xx-xMxxxx
1
1
1
1
1 2
20.81
(0.82)
19.47
(0.77)
40.28 (1.59)
43.8 (1.72)
29.6 (1.17)
13.9
(0.55)
25 (0.98)
50 (1.97)
40.28 (1.59)
20.81
(0.82)
19.47
(0.77)
Figure 23: Structure and device dimensions, unit: mm (inch), decimal separator: period, product
type V2D61xx-xMxxxx
1
4 threaded mounting holes (M4 through hole) 6.4mm deep; maximum depth of thread
5mm
TECHNICAL DATA 11
8024830/1MBT/2024-05-22 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector61x
53
Subject to change without notice
