SICK Lector61x User Manual

5)
Output voltage.
6)
Supply voltage.
7)
Output current.
11.6 Ambient data
Table 12: Technical data: Ambient data
Lector610 Lector611
Electromagnetic com‐
patibility (EMC)
Radiated emission: EN61000-6-3:2007 + A1:2011
Electromagnetic immunity: EN61000-6-2:2005-08
Vibration resistance EN 60068-2-6:2008-02
Shock resistance EN 60068-2-27:2009-05
Ambient operating
temperature
0°C ... +40°C
1)
Storage temperature –20°C ... +70°C
Permissible relative
humidity
0% ... 90%, non-condensing
1)
For ambient operating temperatures ≥40°C, mount the product using an aluminum mounting bracket
(e.g., part number 2113160, 2112790).
11.7 Field of view
Focal length: 6mm
50
600
30.46
480.40
360.30
2
3
2
3
1
1
40.62

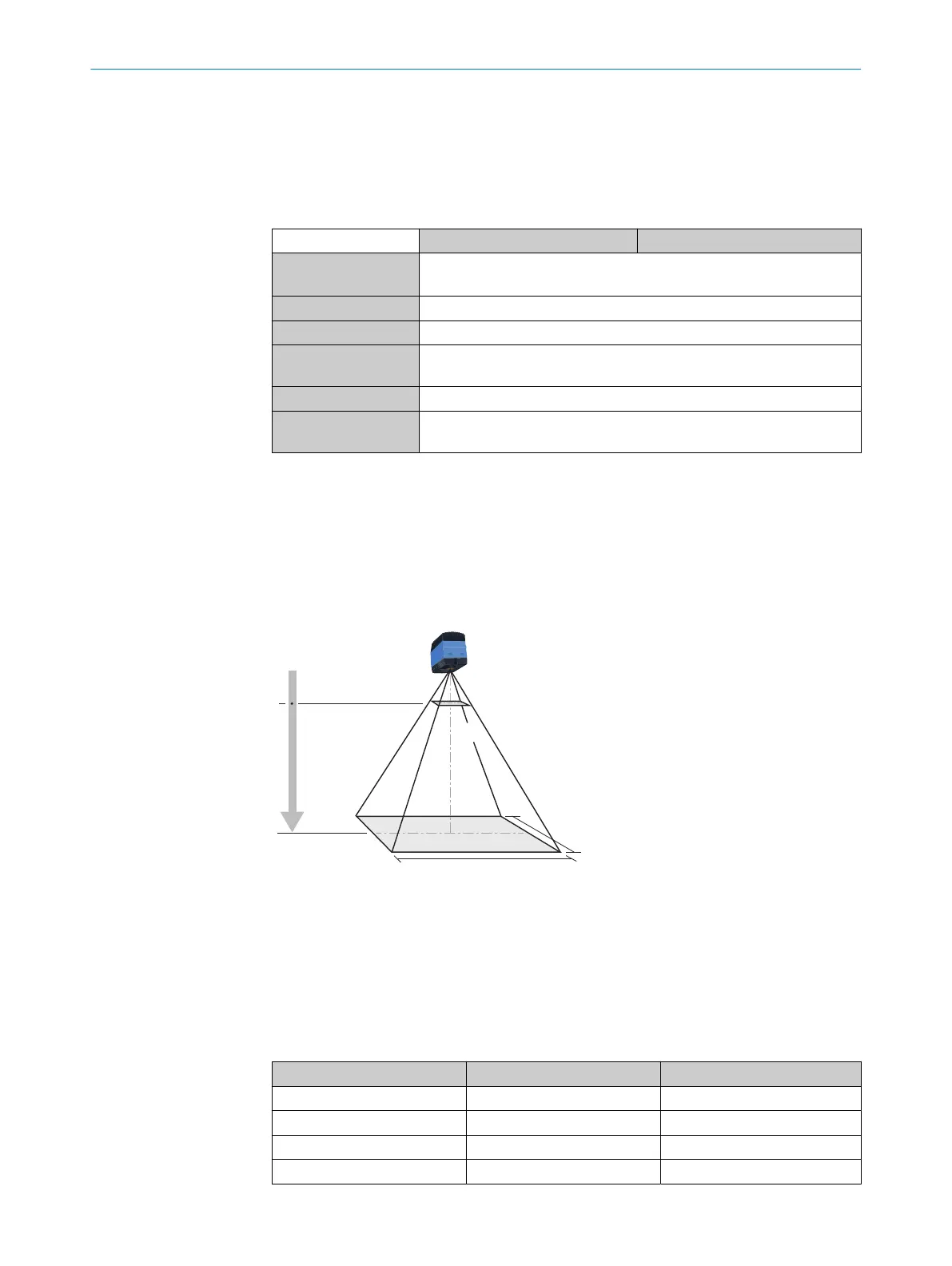

Figure 25: Field of view, focal length: 6mm
1
Working distance in mm
2
Perceived field of view area: horizontal (mm)
3
Perceived field of view area: vertical (mm)
Table 13: Perceived field of view area
Working distance (mm) Horizontal (mm) Vertical (mm)
50 40.62 30.46
60 48.70 36.52
70 56.75 42.56
80 64.79 48.59
11 TECHNICAL DATA
56
O P E R A T I N G I N S T R U C T I O N S | Lector61x 8024830/1MBT/2024-05-22 | SICK
Subject to change without notice
