Working distance (mm) Horizontal (mm) Vertical (mm)
90 72.82 54.61
100 80.83 60.63
150 120.86 90.65
200 160.84 120.63
250 200.80 150.60
300 240.76 180.57
400 320.65 240.49
500 400.53 300.40
600 480.40 360.30
Table 14: Minimum resolution for Lector610
Working distance (mm) 1D code (mm) 2D code (mm)
50 0.1 0.16
150 0.3 0.5
300 0.5 1.0
600 1.0 2.0
Table 15: Minimum resolution for Lector611
Working distance (mm) 1D code (mm) 2D code (mm)
50 0.05 0.08
150 0.15 0.25
300 0.25 0.5
600 0.5 1.0
Focal length: 12mm
50
600
11.64
236.91
177.68
2
3
2
3
1
1
15.52

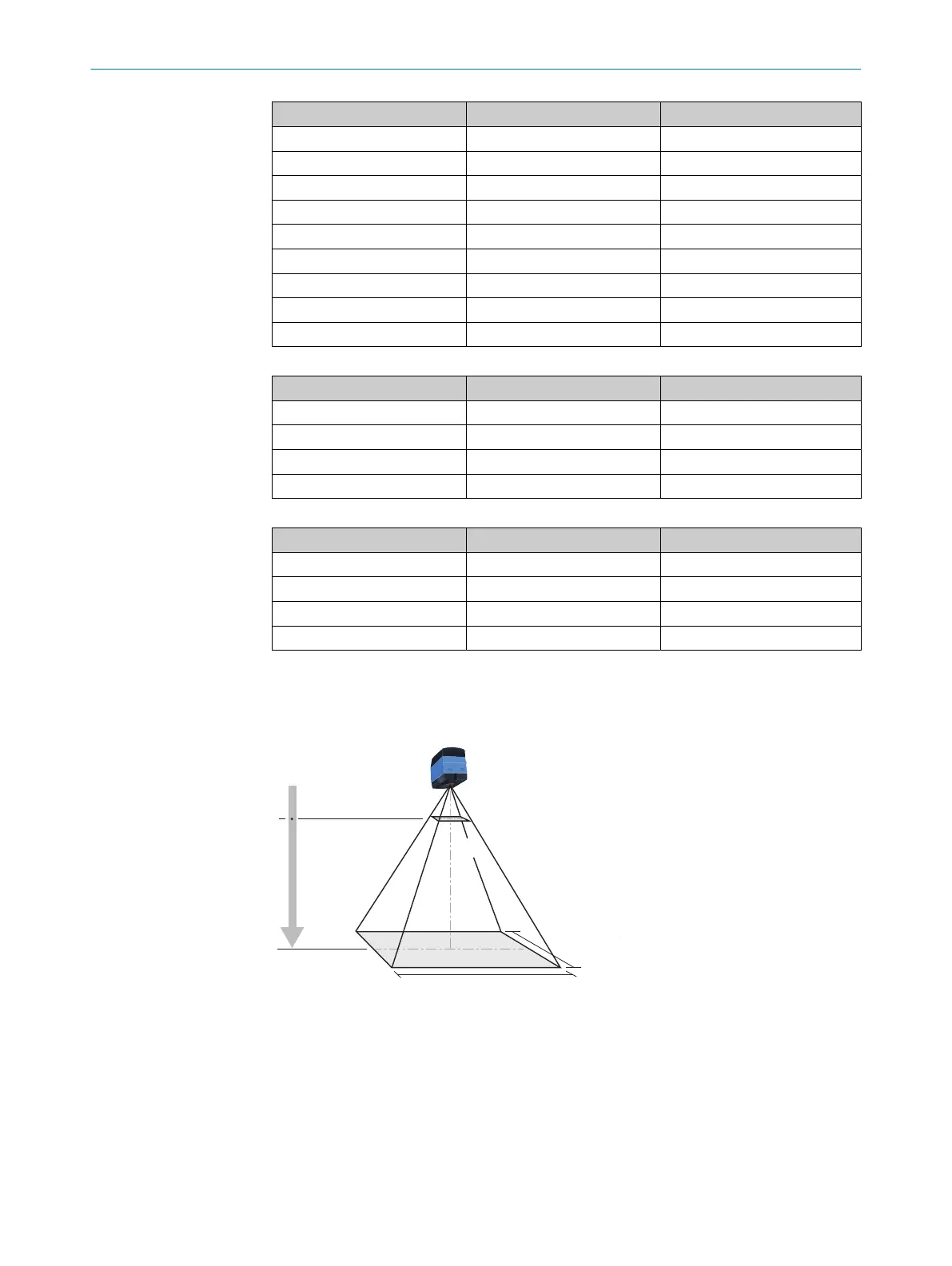

Figure 26: Field of view, focal length: 12mm
1
Working distance in mm
2
Perceived field of view area: horizontal (mm)
3
Perceived field of view area: vertical (mm)
TECHNICAL DATA 11
8024830/1MBT/2024-05-22 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector61x
57
Subject to change without notice
