SICK Lector61x - Connection Diagrams of CDB650-204

13.2.2 “Power/SerialData/CAN/I/O” connection to customer-specific connection equipment or control
cabinet
Adapter cable, straight female connector, open
Part no. 2075220 (5m), shielded, suitable for 2A, suitable for drag chain, deep-freeze
compatible
Permitted currents for ambient temperature +40°C:
•
Contact 1 (blue) and contact 2 (brown): 2A
•
All other contacts: 1.5A
Ambient temperature range:
For mobile installation: –25°C to +40°C, for fixed installation:: –35°C to +40°C
...
ð
1 2
1 2
67 14
12
3
4
5
8
9
10
11
13
15
17
16

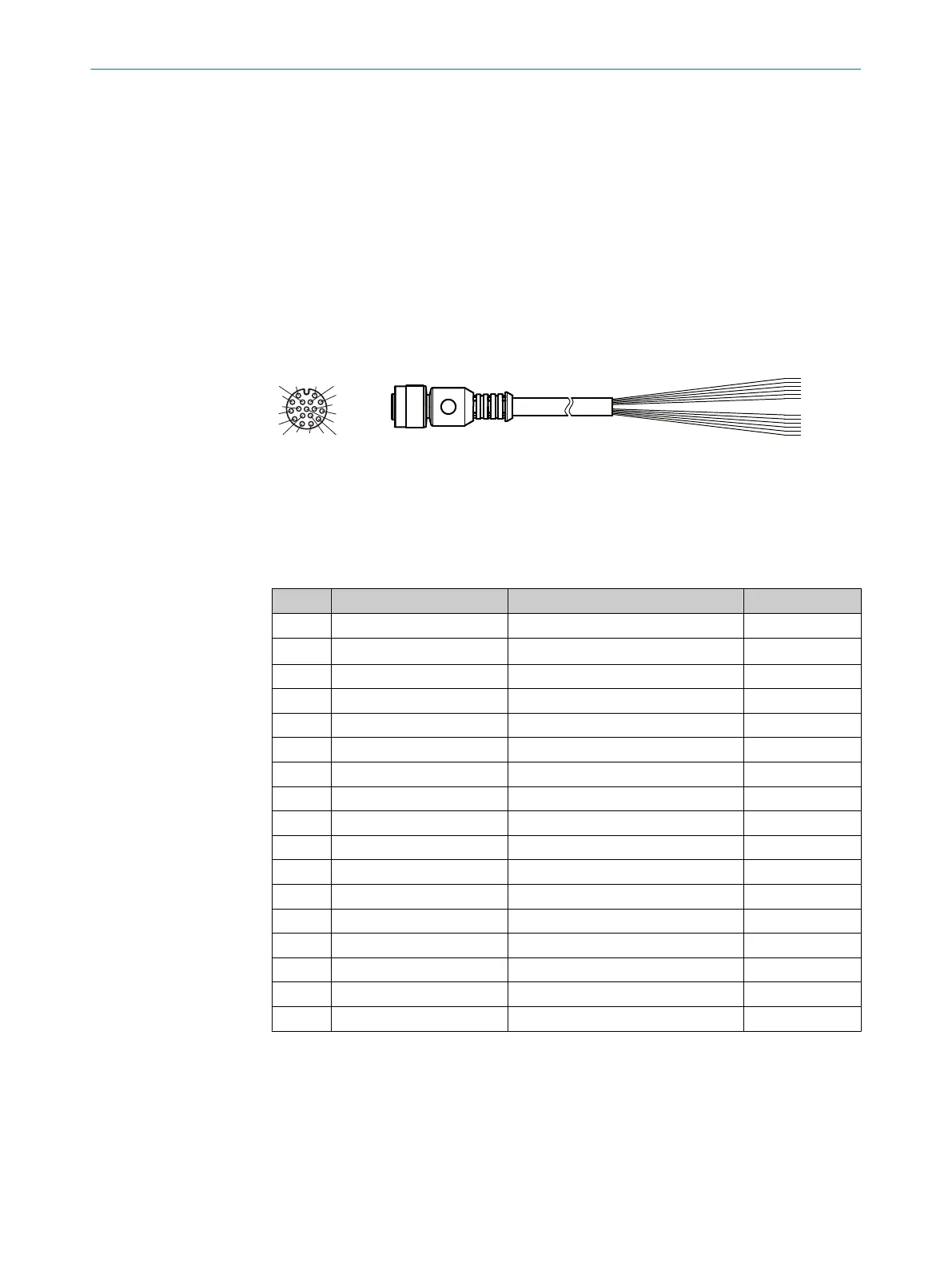

Figure 28: Adapter cable, part no. 2075220
1
Female connector, M12, 17-pin, A-coded (front view)
2
Figure may differ.
Table 20: Signal assignment of adapter cable with open end
PIN Signal Function Wire color
1 GND Ground Brown
2 V
S
Supply voltage Blue
3 CAN L CAN bus (IN/OUT) White
4 CAN H CAN bus (IN/OUT) Green
5 – – Pink
6 TxD (RS-232), host Host interface (sender) Yellow
7 – – Black
8 – – Gray
9 SensGND Ground for digital inputs Red
10 Sensor 1 Digital input 1 Violet
11 – – Gray-pink
12 RxD (RS-232), host Host interface (receiver) Red-blue
13 Result 1 Digital output 1 White-green
14 Result 2 Digital output 2 Brown-green
15 Sensor 2 Digital input 2 White-yellow
16 Result 3 Digital input 3 Yellow-brown
17 N. c. – White-gray
13.3 Connection diagrams of connection module CDB650-204
13.3.1 Connection of the device to CDB650-204
Device = Lector61x = V2D61xx- xxxxxEx
