SICK Lector61x - Product Overview

Placeholder Description Characteristic
j Data interface E: Ethernet with 0.25m cable (female connec‐
tor, M12, 4-pin, D-coded), RS232C and CAN
with 0.35m cable (male connector, M12, 17-
pin, A-coded)
k IP protection class 4: IP54
5: IP65
3.3 Product overview
Product overview
1 2
5
6
1 2
3
4

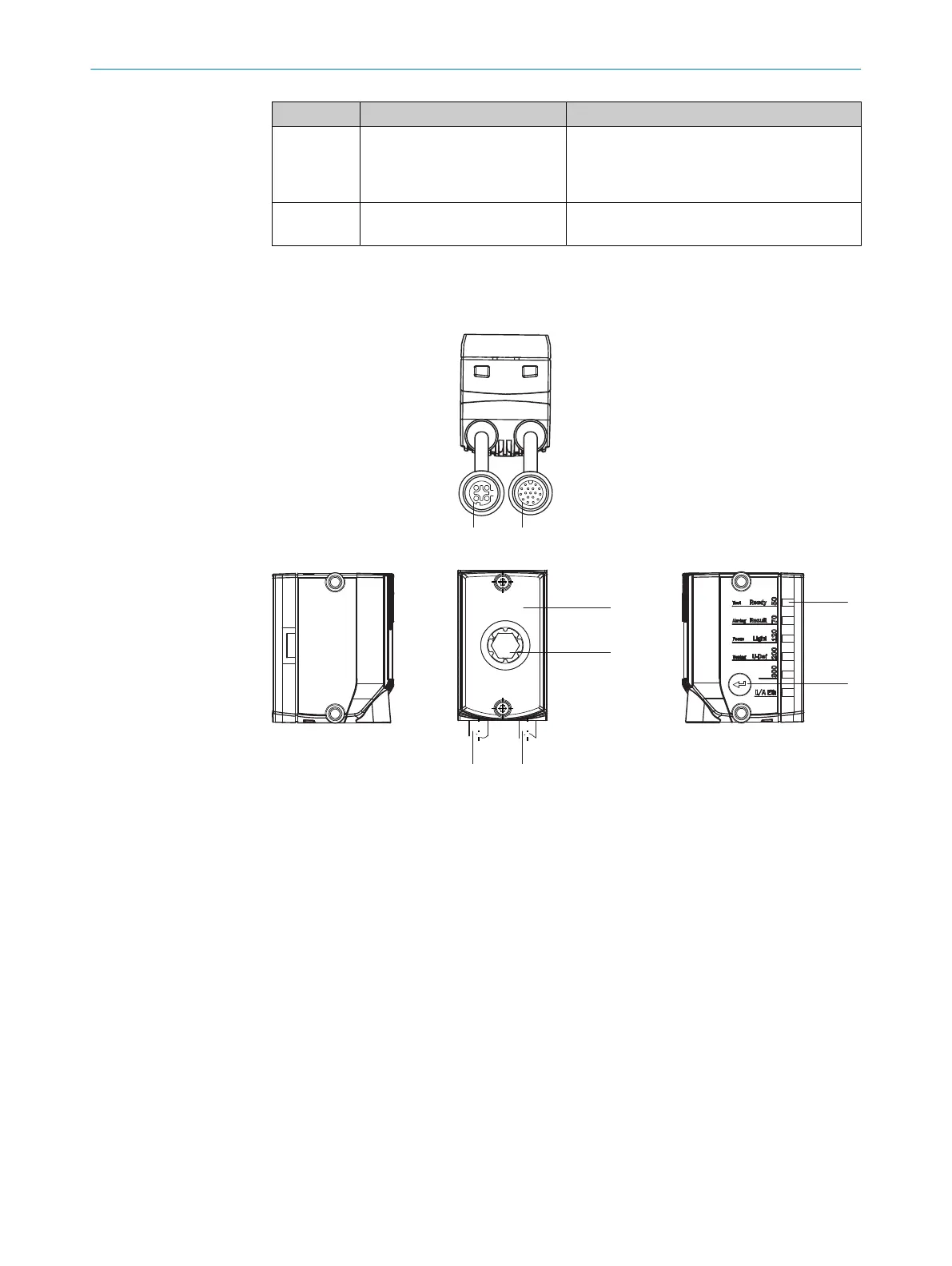

Figure 2: Product overview, product type V2D61xx-xMxxxx (example)
1
Connecting cable with “Ethernet” connection (female connector, M12, 4-pin, D-coded),
length of cable: 0.25m
2
Connecting cable with “Power/Serial Data/CAN/I/O” connection (male connector, M12,
17-pin, A-coded), length of cable: 0.35m
3
Viewing window with 8 integrated illumination LEDs, 2 LED alignment aids, 1 feedback
LED, 1 time-of-flight sensor
4
Optics, manual focus adjustment using a focus adjustment tool (V2D61xx-xMxxxx only)
5
6 status LEDs to display the focus position and working distance, product status, and
product function (3display levels)
6
Function button
Further topics
•
Dimensional drawing
•
Integrated illumination
