SICK Lector61x - Adjusting the Focus Position

The mounting angle to use depends on the lens:
•
f = 6mm: The typical value is 20°.
•
f = 12mm: The typical value is 10°.

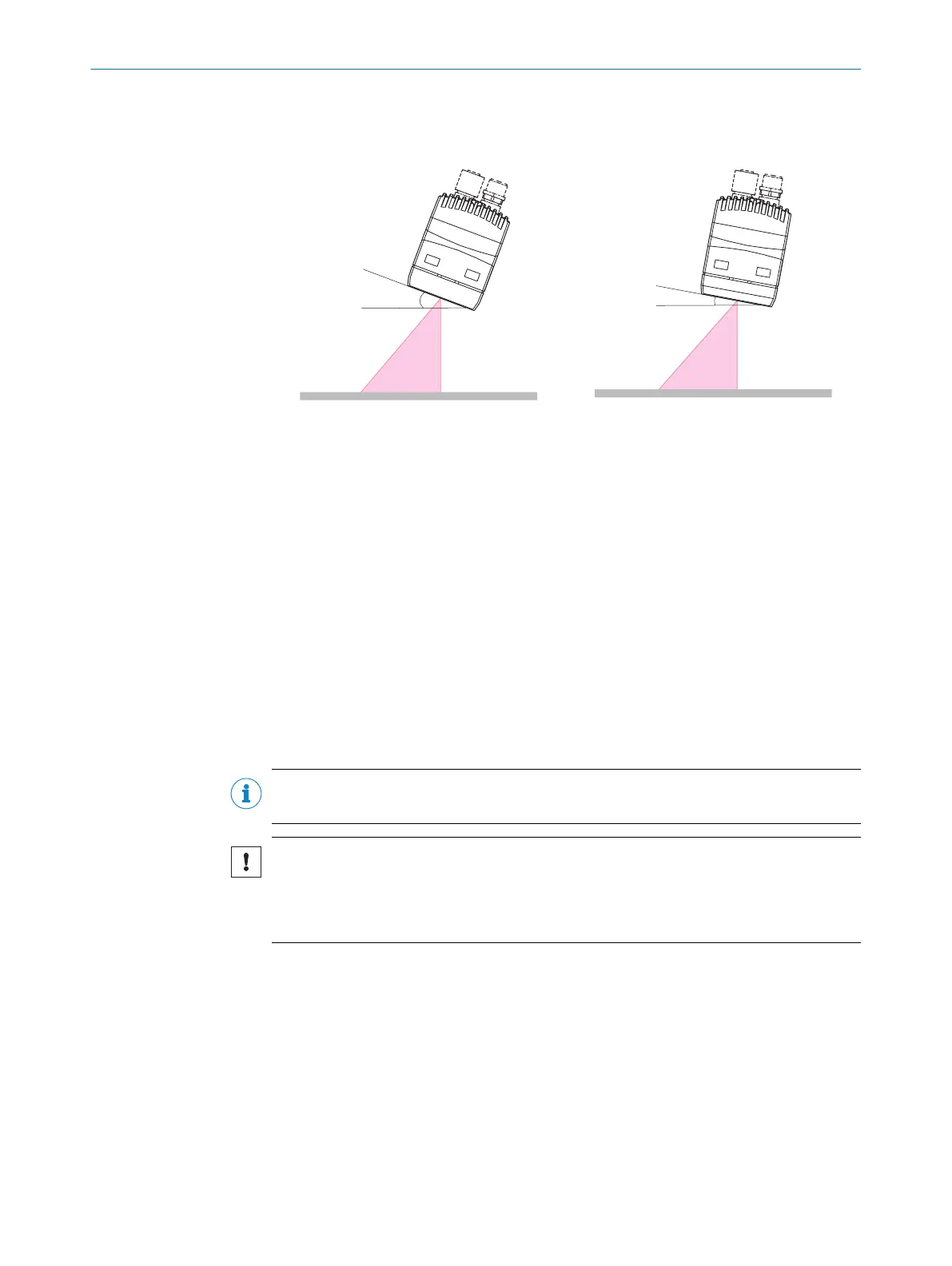

typical 20° 1
Figure 8: Mounting angle to use, f = 6mm,
depending on the application
1
Typical angle 20°
typical 10° 1
Figure 9: Mounting angle to use, f = 12mm,
depending on the application
1
Typical angle 10°
Depending on the application, an angle of 0° (brightfield illumination) or up to 45°
(darkfield illumination) is appropriate.
5.3 Adjusting the focus position
5.3.1 Adjusting focus with the focus adjustment tool
Overview
The user adjusts the focus position to suit the required working distance with the help
of the focus adjustment tool. The focus position is valid for one working distance. The
product does not perform automatic tracking (auto focus) if, for example, the working
distance changes significantly. The focus adjustment tool is included with delivery.
Important information
NOTE
Only relevant for product type V2D61xx-xMxxxx.
NOTICE
Risk of product damage
If the focus adjustment tool is turned with too much force, the product will be damaged.
■
Observe maximum tightening torque.
MOUNTING 5
