Approach
7
1
2
3 5
4
6 8

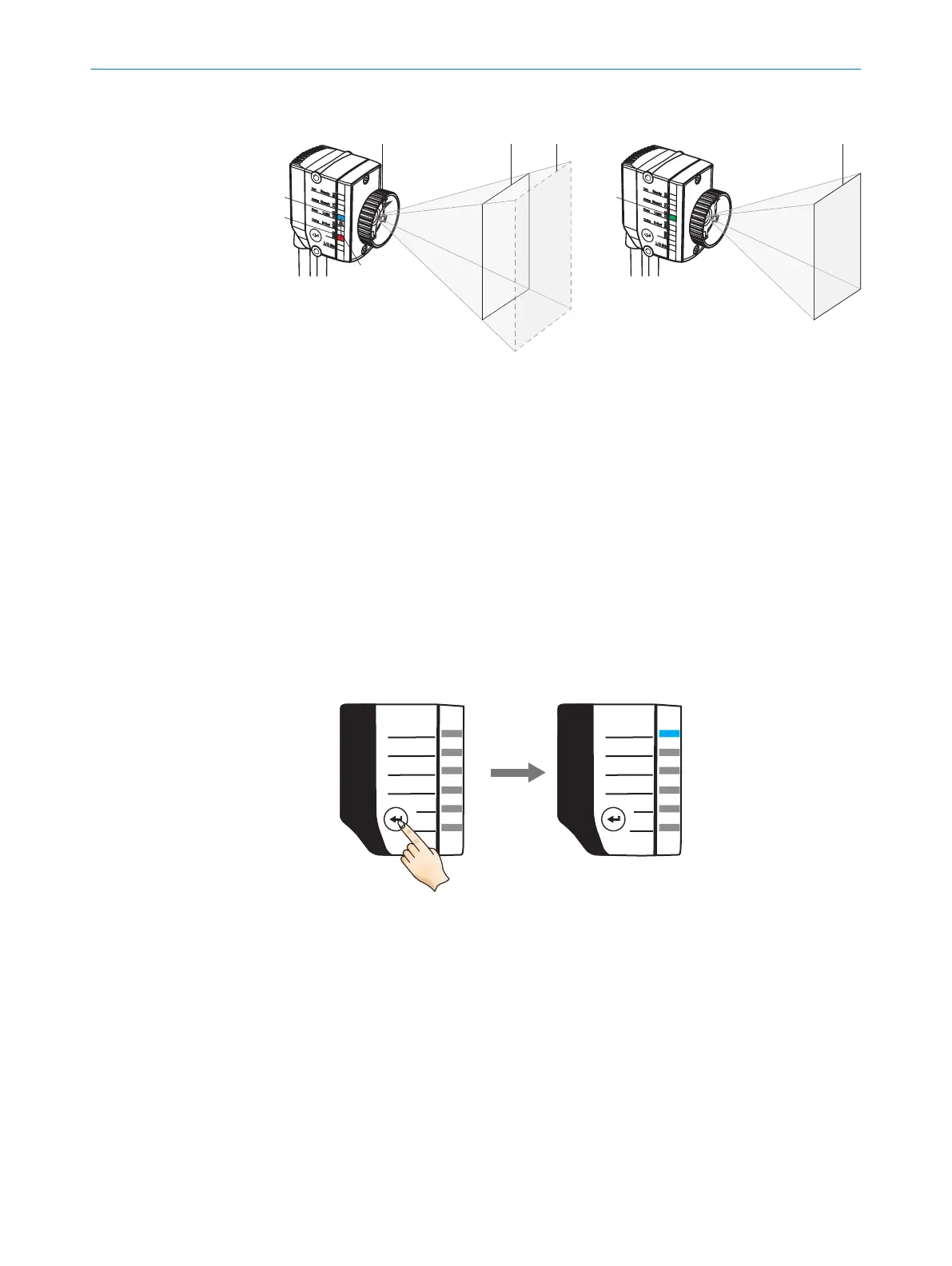

Figure 10: Manually adjusting the focus position with the help of the focus adjustment tool
1
Red LED = the focus position set
2
Blue LED = current working distance
3
Rotate the focus adjustment tool
4
The red LED (current focus position) is made to approach the blue LED (current working
distance) by turning the focus adjustment tool.
5
Target focus position setting
6
Actual focus position setting
7
Green LED = focus position has been adjusted to suit the working distance (actual status
= target status)
8
Focus position coincides with the working distance (actual status = target status)
1. Mount and align the product at the required working distance.
2. Activating the Focus product function:
°
Press the function button (p) for 3seconds.
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result
Press function key 3 seconds 1
1
Press the function button (p) for 3seconds.
5 MOUNTING
